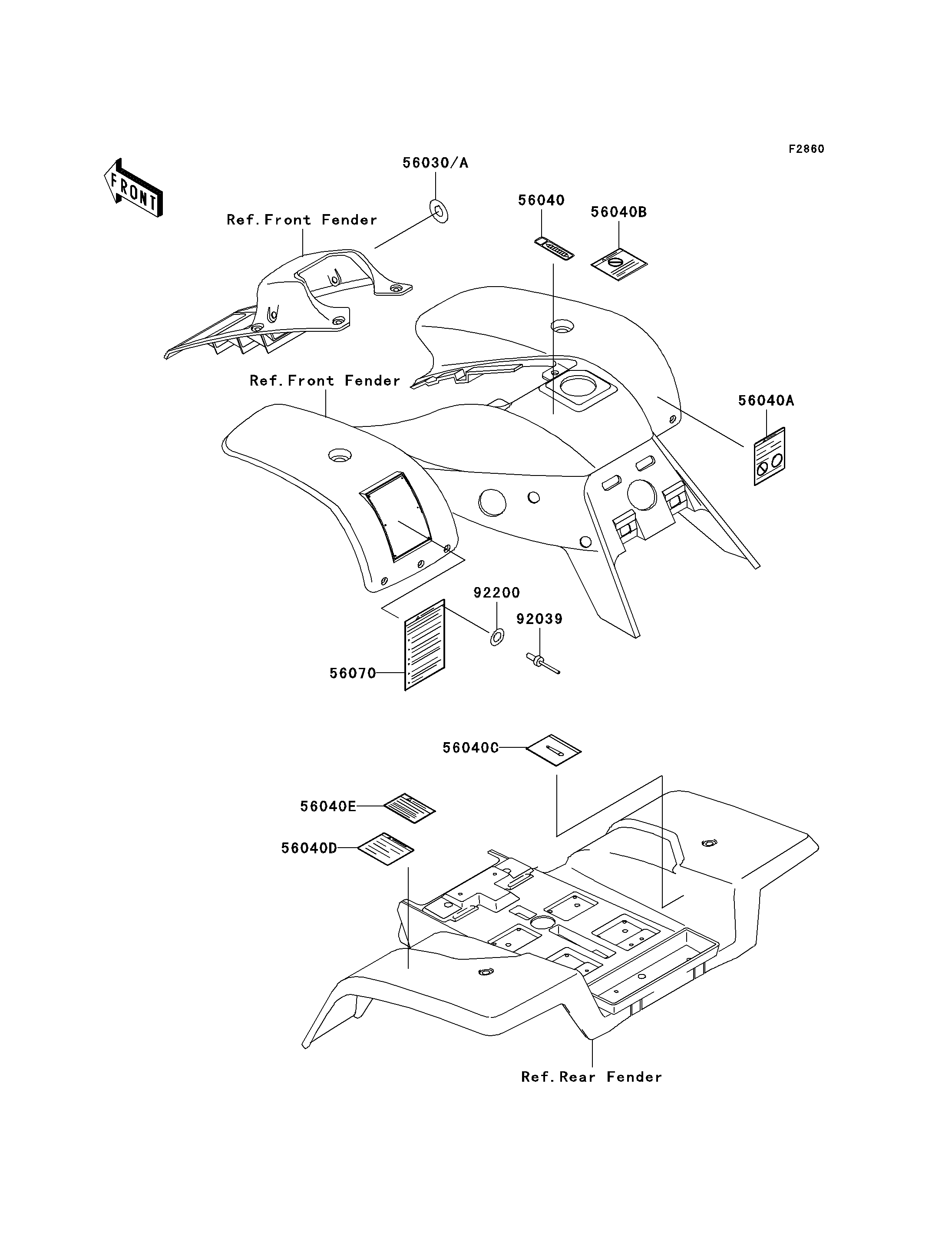

56030A
56040
56040A
56040B
56040C
56040D
56040E
56070
92039
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,IGNITION SWITCH 56030A 56030-1086 1
LABEL-WARNING,SHIFT PATTERN 56040 56040-1201 1
LABEL-WARNING,TRANSPORT 56040A 56040-1261 1
LABEL-WARNING,UNDER 16 56040B 56040-1276 1
LABEL-WARNING,CHAIN SLACK 56040C 56040-1289 1
LABEL-WARNING,TIRE PRESSURE 56040D 56040-1290 1
LABEL-WARNING,MAX VEHICLE LOAD 56040E 56040-1291 1
LABEL-WARNING,SERIOUS INJURY 56070 56070-1151 1
RIVET,3.2X8 92039 92039-3763 6
WASHER,3.5X8X1 92200 92200-1251 6
