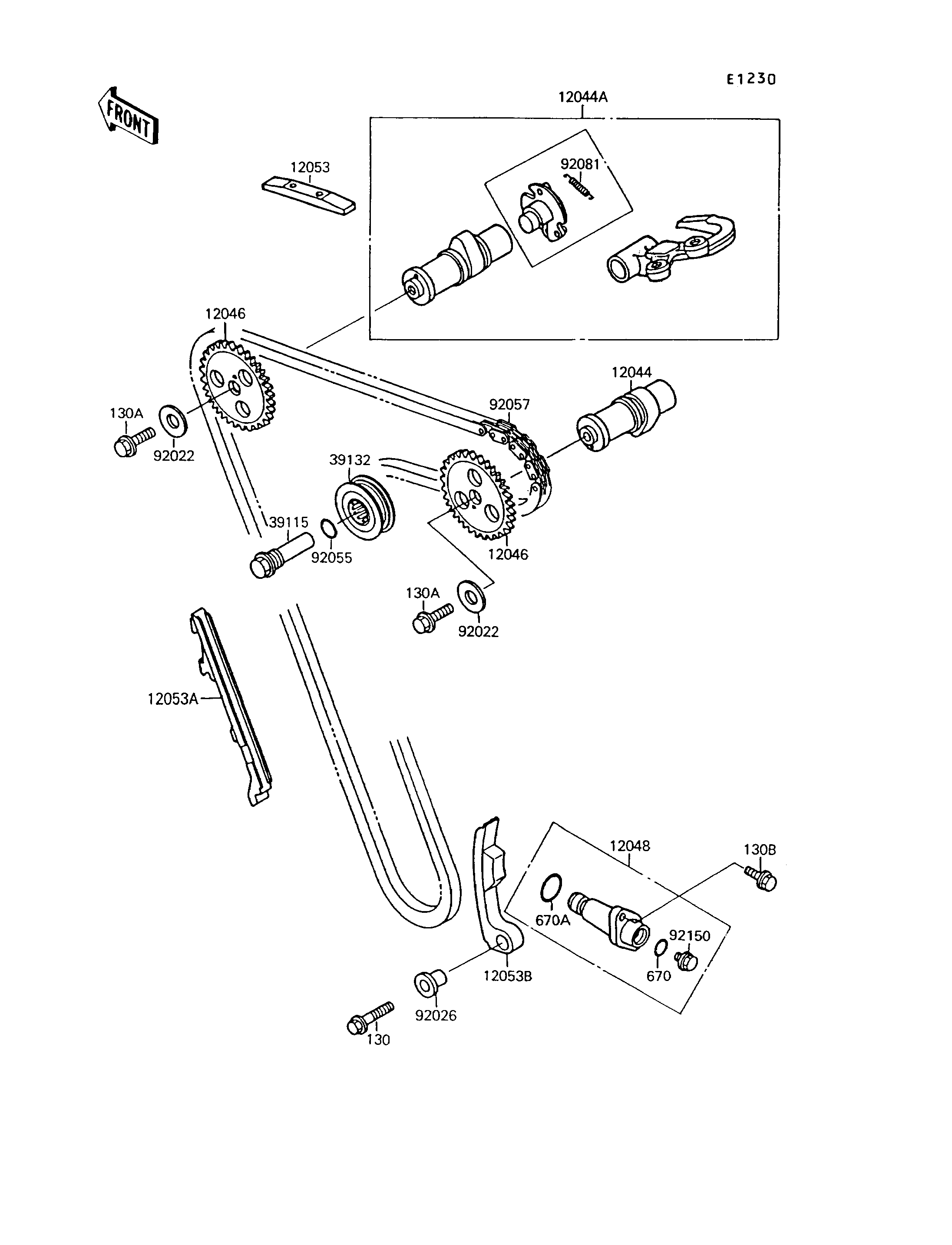

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAMSHAFT-VALVE,INTAKE 12044 12044-1348 1
CAMSHAFT-VALVE 12044A 12044-5009 1
SPROCKET,42T 12046 12046-1063 2
TENSIONER-ASSY,CAM CHAIN 12048 12048-1066 1
GUIDE-CHAIN,UPP 12053 12053-1107 1
GUIDE-CHAIN,FR 12053A 12053-1125 1
GUIDE-CHAIN,RR 12053B 12053-1126 1
SHAFT-IDLER 39115 39115-1051 1
SPROCKET-ASSY-IDLER 39132 39132-1052 1
WASHER,10X22X3 92022 92022-1365 2
SPACER,L=28.3 92026 92026-1231 1
RING-O,ID=13.8 92055 92055-1141 1
CHAIN,CAM,79RH2010-158L 92057 92057-1170 1
SPRING,DECOMPRESSOR 92081 92081-1626 1
BOLT,TENSIONER 92150 92150-1380 1
BOLT-FLANGED,8X30 130 130G0830 1
BOLT-FLANGED,10X25 130A 130G1025 2
BOLT-FLANGED,6X25 130B 130J0625 2
O RING 670 670D2010 1
O RING,21MM 670A 670D2021 1
