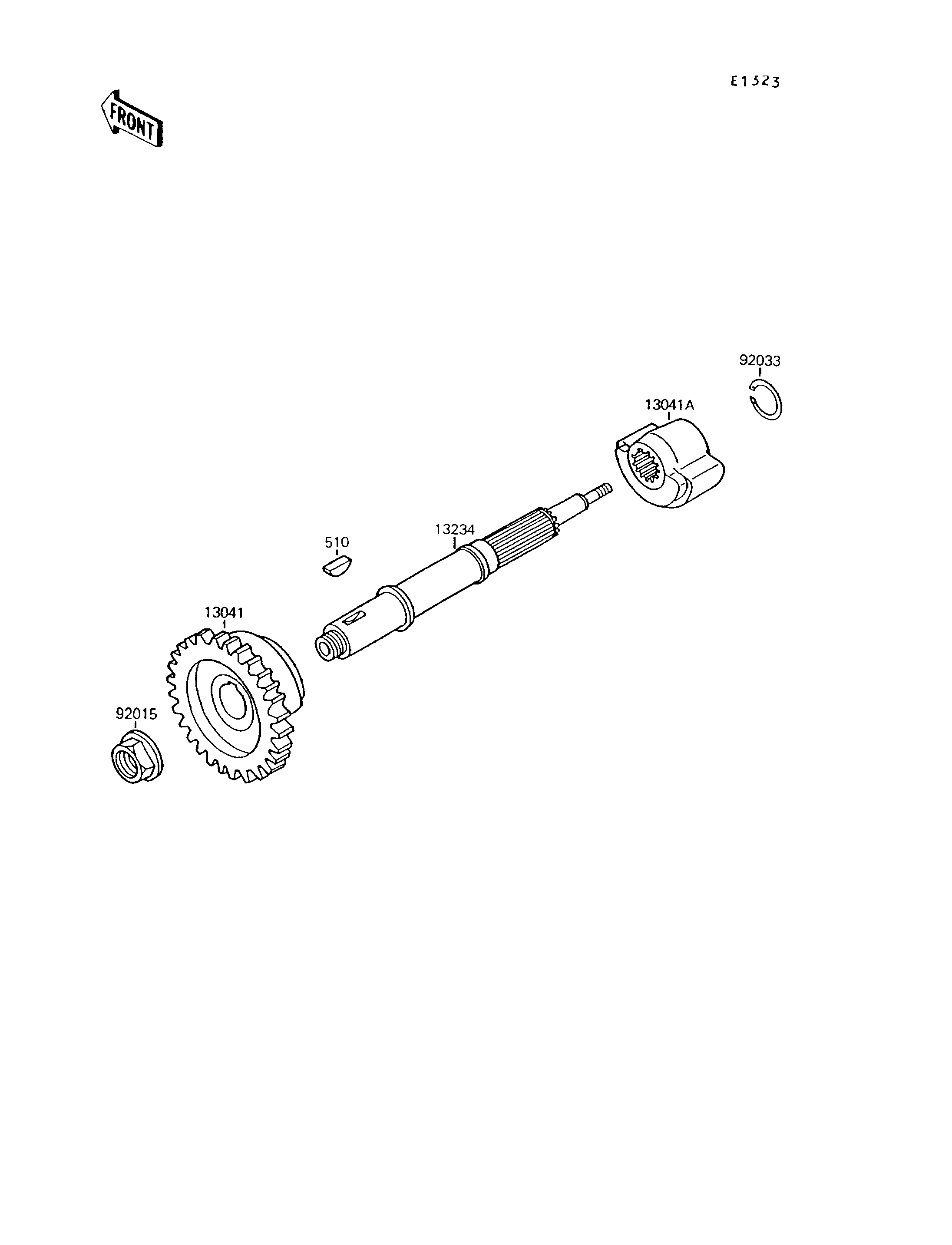

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALANCER,LH 13041 13041-1073 1
BALANCER,RH 13041A 13041-1074 1
SHAFT-COMP 13234 13234-1066 1
NUT,16MM 92015 92015-1465 1
RING-SNAP,18MM 92033 92033-029 1
KEY-WOODRUFF 510 510A5100 1
