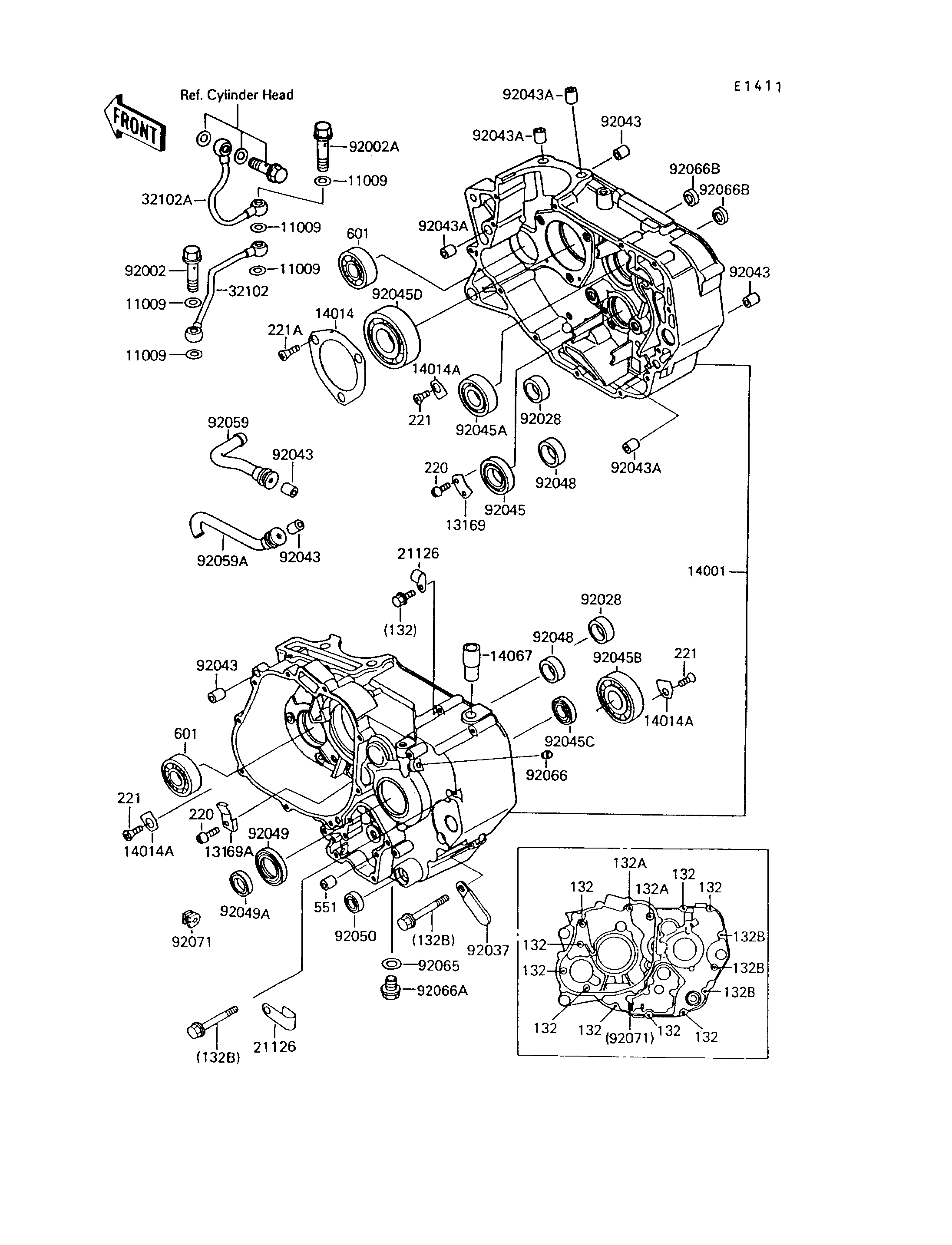

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 5 | ||
PLATE,GEAR CHANGE DRUM | 13169 | 13169-014 | 1 | ||
PLATE | 13169A | 13169-1691 | 1 | ||
SET-CRANKCASE | 14001 | 14001-5271 | 1 | ||
PLATE-POSITION,CRANK BEARING | 14014 | 14014-1004 | 1 | ||
PLATE-POSITION | 14014A | 14014-1057 | 3 | ||
FITTING,BREATHER | 14067 | 14067-006 | 1 | ||
CLAMP,WIRING HARNESS | 21126 | 21126-008 | 2 | ||
PIPE | 32102 | 32102-1127 | 1 | ||
PIPE | 32102A | 32102-1187 | 1 | ||
BOLT,BANJO,10X25 | 92002 | 92002-1170 | 1 | ||
BOLT,BANJO,10X36.5 | 92002A | 92002-1751 | 1 | ||
BUSHING,23X30X13 | 92028 | 92028-132 | 2 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1539 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 6 | ||
PIN,10.1X12X14 | 92043A | 92043-4009 | 4 | ||
BEARING-BALL,#6905 | 92045 | 92045-036 | 1 | ||
BEARING-BALL,TMB204 JR | 92045A | 92045-1041 | 1 | ||
BEARING-BALL,TM-SX0597LU | 92045B | 92045-1127 | 1 | ||
BEARING-BALL,6804 | 92045C | 92045-1171 | 1 | ||
BEARING-BALL | 92045D | 92045-1172 | 1 | ||
RACE,26X33X13 | 92048 | 92048-1057 | 2 | ||
SEAL-OIL,TC32457 | 92049 | 92049-1159 | 1 | ||
SEAL-OIL,SD20307HS | 92049A | 92049-1261 | 1 | ||
SEAL-OIL | 92050 | 92050-082 | 1 | ||
TUBE | 92059 | 92059-1694 | 1 | ||
TUBE | 92059A | 92059-1695 | 1 | ||
GASKET,12X22X2,DRAIN PLUG | 92065 | 92065-097 | 1 | ||
PLUG,OIL LINE,7.2X8 | 92066 | 92066-1012 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066A | 92066-1174 | 1 | ||
PLUG | 92066B | 92066-1282 | 2 | ||
GROMMET | 92071 | 92071-1139 | 1 | ||
BOLT-FLANGED-SMALL,6X40 | 132 | 132J0640 | 9 | ||
BOLT-FLANGED-SMALL | 132A | 132J0675 | 2 | ||
BOLT-FLANGED-SMALL | 132B | 132J0695 | 3 | ||
SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 3 | ||
SCREW-CSK-CROS,6X12 | 221 | 221B0612 | 3 | ||
SCREW-CSK-CROS,6X16 | 221A | 221B0616 | 3 | ||
PIN-DOWEL,6X12 | 551 | 551A0612 | 2 | ||
BEARING-BALL,#6204C3 | 601 | 601B6204 | 2 |
