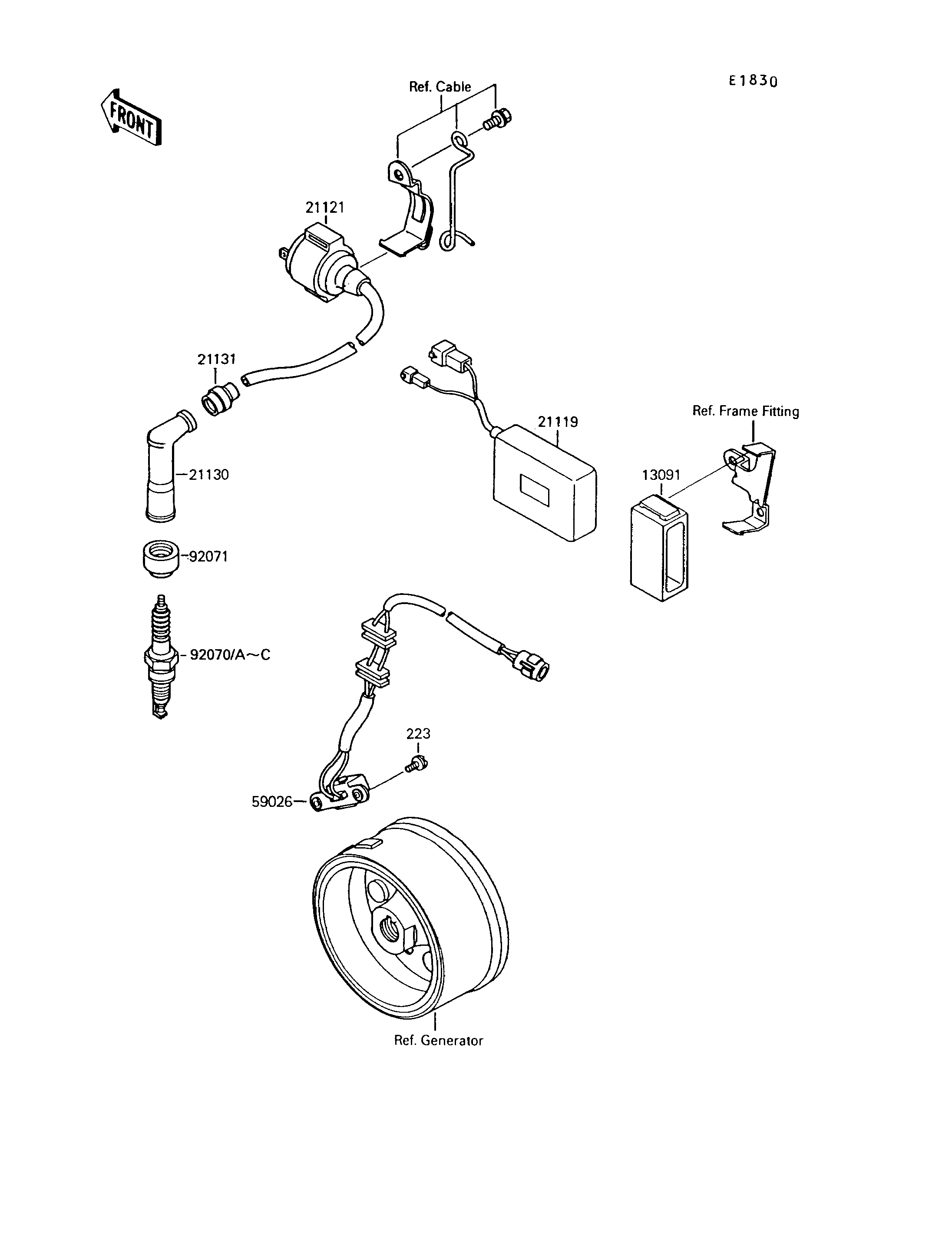

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,IGNITER 13091 13091-1271 1
IGNITER 21119 21119-1197 1
COIL-IGNITION 21121 21121-1148 1
CAP-SPARK PLUG 21130 21130-1002 1
GROMMET,HIGH TENSION 21131 21131-005 1
COIL-PULSING 59026 59026-1080 1
PLUG-SPARK,DPR8EA-9(NGK) 92070 92070-1065 1 CN
PLUG-SPARK,DP8EA-9(NGK) 92070A 92070-1066 1 US
PLUG-SPARK,X24EPR-U9(ND) 92070B 1 CN (OPTION)
PLUG-SPARK,X24EP-U9(ND) 92070C 1 US
GROMMET,PLUG CAP 92071 92071-1124 1
SCREW-PAN-WS-CROS 223 223B0514 2
