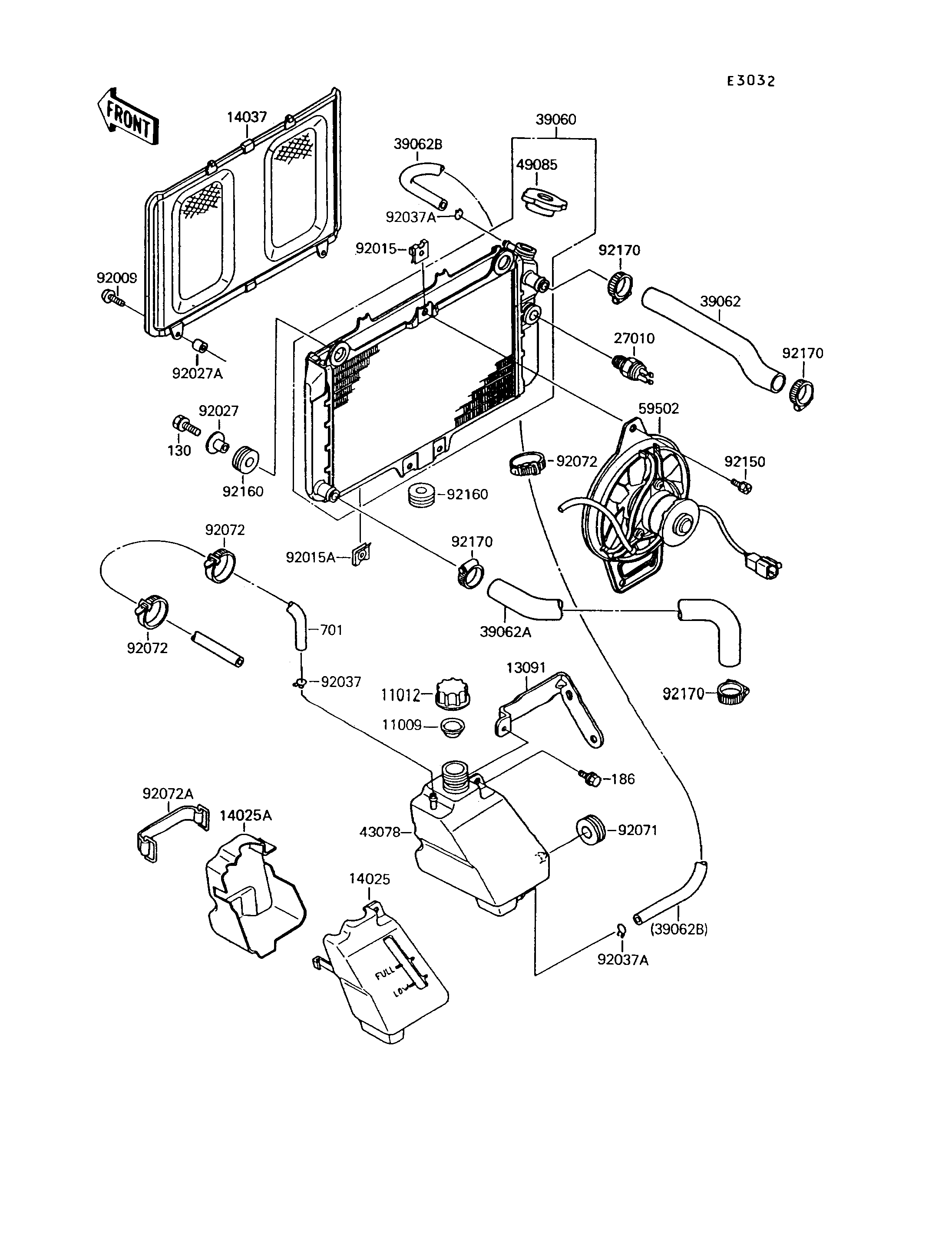

1994 Mojave 250 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
HOLDER,RESERVOIR 13091 13091-1435 1
COVER,RESERVOIR 14025 14025-1991 1
COVER,RESERVOIR 14025A 14025-1992 1
SCREEN 14037 14037-1083 1
SWITCH,FAN 27010 27010-1317 1
RADIATOR 39060 39060-1071 1
HOSE-COOLING,HEAD-RADIATOR 39062 39062-1191 1
HOSE-COOLING,RADIATOR-PUMP 39062A 39062-1192 1
HOSE-COOLING 39062B 39062-1208 1
RESERVOIR,TANK 43078 43078-1061 1
CAP-ASSY-PRESSURE 49085 49085-1005 1
FAN-ASSY 59502 59502-1065 1
SCREW,TAPPING,6X20 92009 92009-1422 2
NUT 92015 92015-1487 3
NUT,6MM 92015A 92015-1758 2
COLLAR,L=14 92027 92027-1134 2
COLLAR,6.8X10X10.5 92027A 92027-120 2
CLAMP,TUBE 92037 92037-010 1
CLAMP,TUBE 92037A 92037-147 2
GROMMET 92071 92071-1115 1
BAND,L=149 92072 92072-031 3
BAND,L=82 92072A 92072-053 1
BOLT,6X12 92150 92150-1186 3
DAMPER 92160 92160-1007 3
CLAMP,COOLING HOSE 92170 92170-1033 4
BOLT-FLANGED,8X25,BLACK 130 130J0825 2
BOLT-UPSET-WP 186 186J0618 1
TUBE-PVC 701 701Q05750 1
