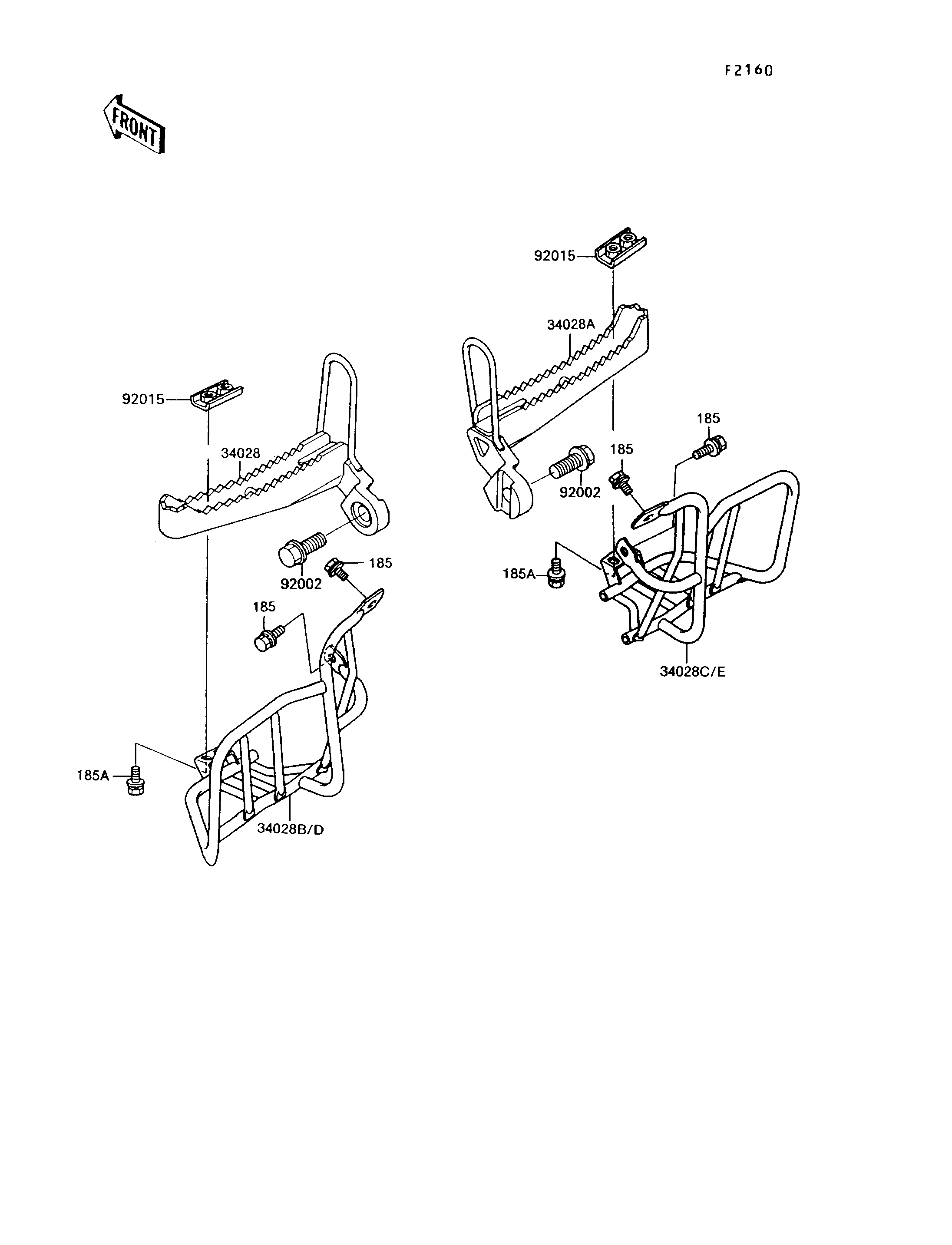

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STEP,LH,L.GREEN 34028 34028-1366-CC 1
STEP,RH,L.GREEN 34028A 34028-1367-CC 1
STEP,FOOT BOARD,LH,L.GREEN 34028B 34028-1368-CC 1
STEP,FOOT BOARD,RH,L.GREEN 34028C 34028-1369-CC 1
BOLT,FLANGED,14X25 92002 92002-1767 2
NUT 92015 92015-1732 2
BOLT-UPSET-WSP-SMALL 185 185J0818 4
BOLT-UPSET-WSP-SMALL,8X20 185A 185J0820 4
