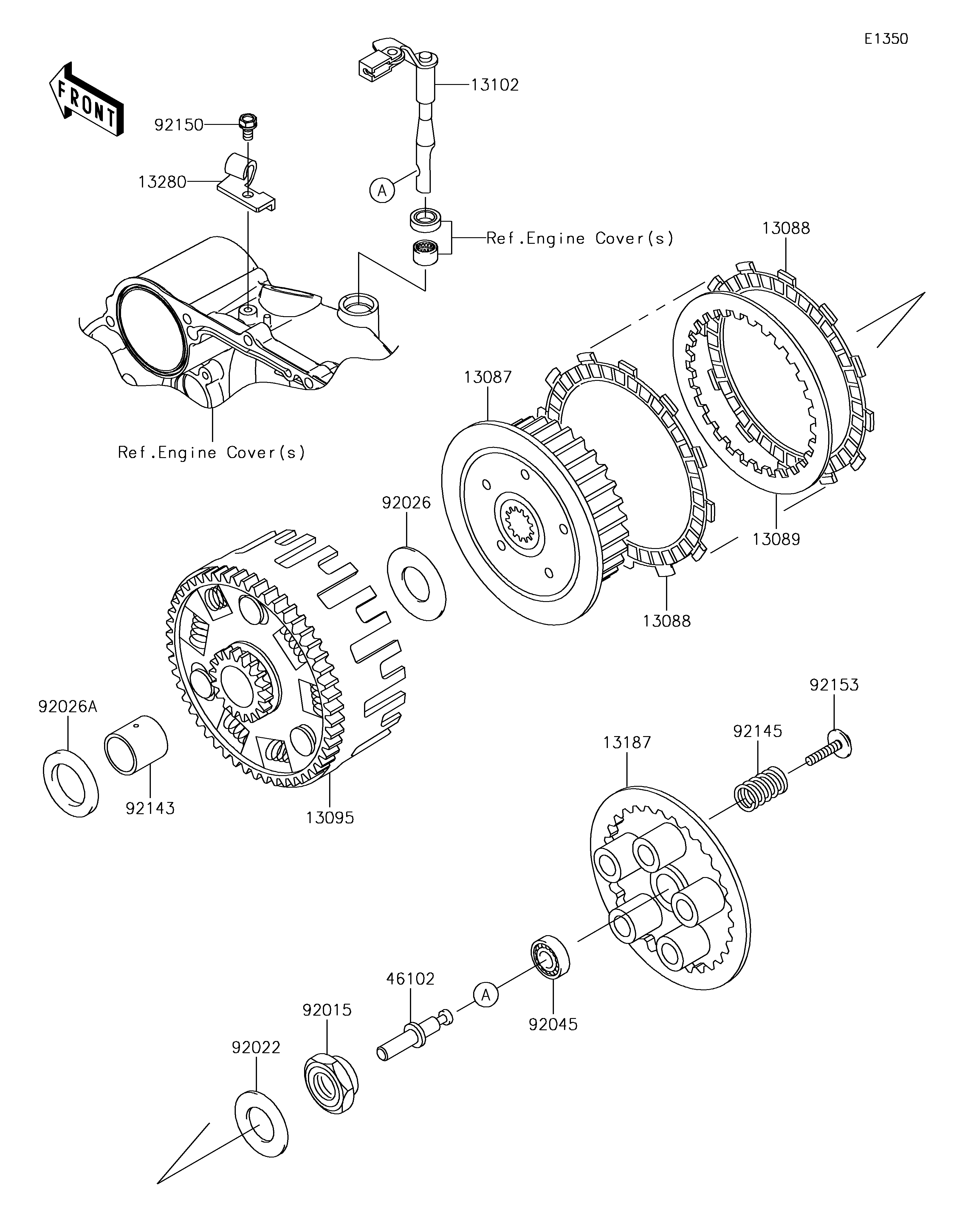

Parts Diagrams |
13087
13088
13088
13089
13095
13102
13187
13280
46102
92015
92022
92026
92026A
92045
92143
92145
92150
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HUB-CLUTCH | 13087 | 13087-0046 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-0023 | 7 | ||
| PLATE-CLUTCH,T=2.3 | 13089 | 13089-0016 | 6 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-0129 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-0039 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-0020 | 1 | ||
| HOLDER | 13280 | 13280-0379 | 1 | ||
| ROD | 46102 | 46102-0114 | 1 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER,20.3X36X3.7 | 92022 | 92022-1868 | 1 | ||
| SPACER,25.5X48X2 | 92026 | 92026-0114 | 1 | ||
| SPACER,25.1X38X4 | 92026A | 92026-0154 | 1 | ||
| BEARING-BALL | 92045 | 92045-1408 | 1 | ||
| COLLAR | 92143 | 92143-1769 | 1 | ||
| SPRING,CLUTCH | 92145 | 92145-0796 | 5 | ||
| BOLT,6X12 | 92150 | 92150-1965 | 1 | ||
| BOLT,UPSET-WP,6X32 | 92153 | 92153-1880 | 5 |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH,T=2.3 | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEASE-COMP-CLUTCH | |
| REF # | 13102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATING | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.3X36X3.7 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,25.5X48X2 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,25.1X38X4 | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,UPSET-WP,6X32 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
