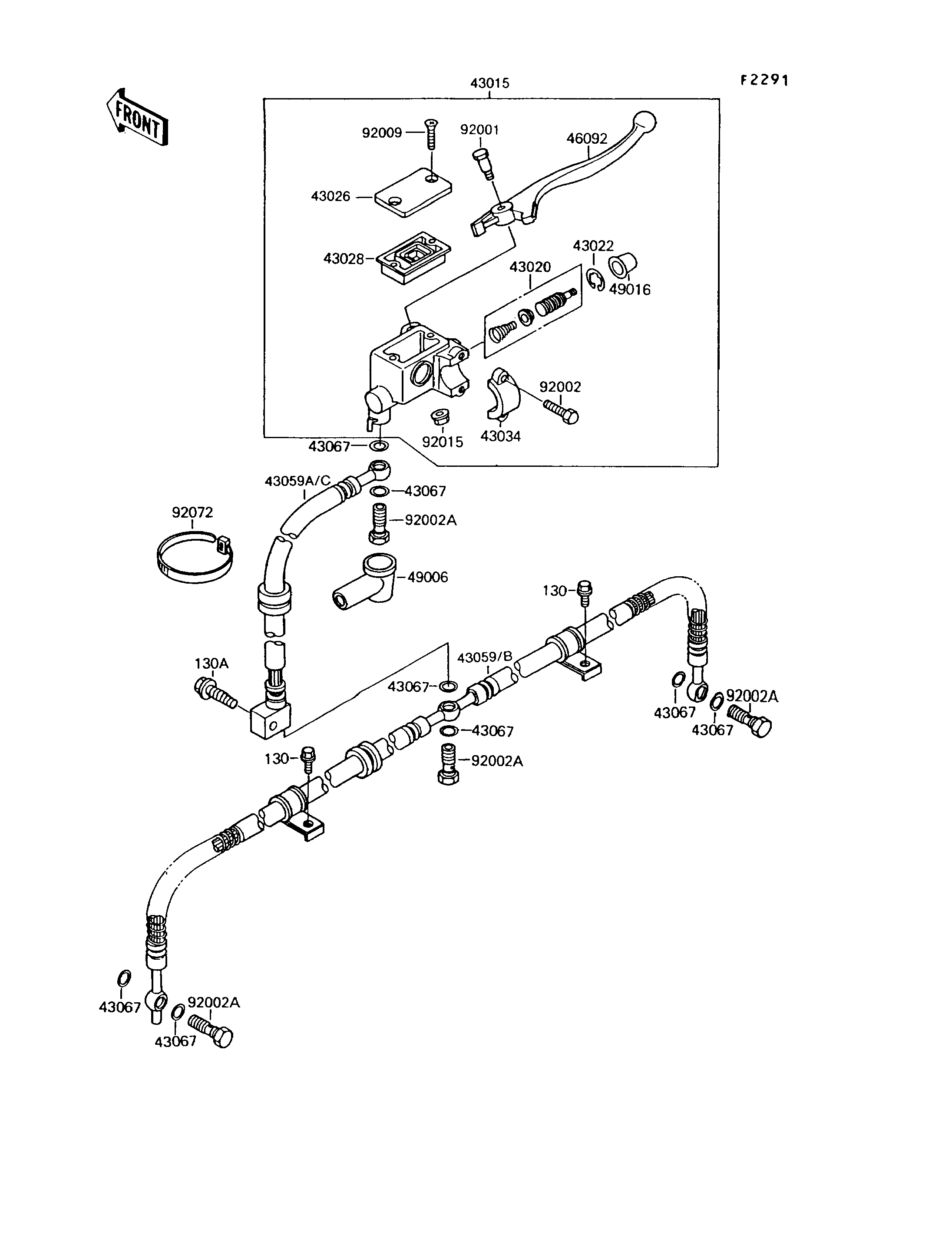

1994 Mojave 250 - Front Master Cylinder
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1489 | 1 | ||
PISTON-COMP-BRAKE,FR | 43020 | 43020-1056 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE | 43026 | 43026-1074 | 1 | ||
DIAPHRAGM | 43028 | 43028-1061 | 1 | ||
HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1016 | 1 | ||
HOSE-BRAKE,FR | 43059 | 43059-1344 | 1 | ||
HOSE-BRAKE,FR | 43059A | 43059-1345 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 8 | ||
LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1136 | 1 | ||
BOOT,DUST | 49006 | 49006-1040 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
BOLT,FRONT BRAKE LEVER | 92001 | 92001-1728 | 1 | ||
BOLT | 92002 | 92002-1860 | 2 | ||
BOLT,OIL,L=23 | 92002A | 92002-1888 | 4 | ||
SCREW,4MM | 92009 | 92009-1458 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
BAND,L=149 | 92072 | 92072-031 | 1 | ||
BOLT-FLANGED,6X10 | 130 | 130B0610 | 2 | ||
BOLT-FLANGED,8X25 | 130A | 130G0825 | 1 |
