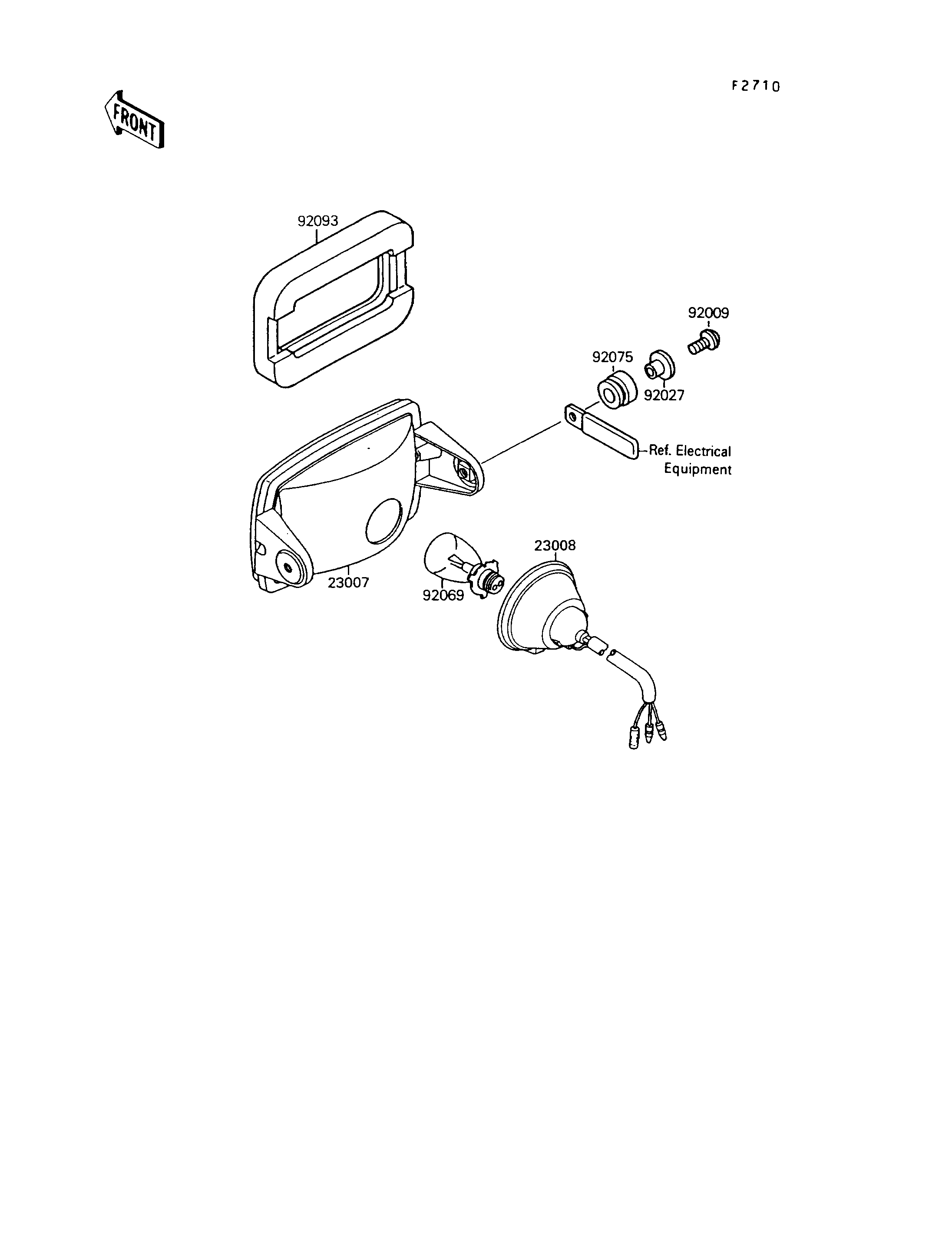

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP,HEAD LAMP 23007 23007-1183 1
SOCKET-ASSY,HEAD LAMP 23008 23008-1358 1
SCREW,6X22,BLACK 92009 92009-1256 2
COLLAR,L=13.1,BLACK 92027 92027-1450 2
BULB,12V 45/45W 92069 92069-1061 1
DAMPER 92075 92075-1690 2
SEAL,HEAD LAMP 92093 92093-1222 1
