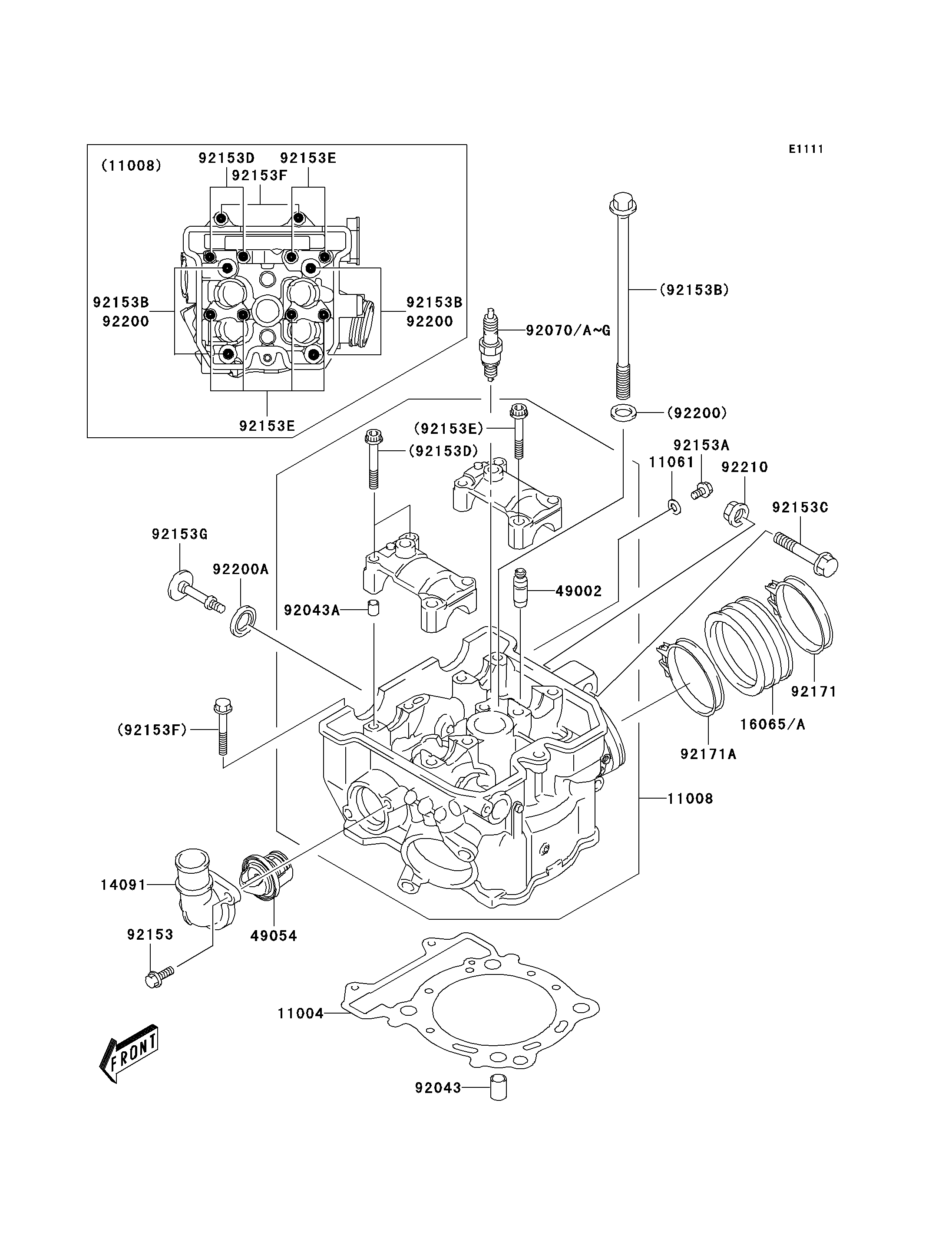

2004 KFX400 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11061
14091
16065
49002
49054
92043
92043A
92070
92070A
92070B
92070C
92070D
92070E
92070F
92070G
92153
92153A
92153B
92153B
92153C
92153D
92153E
92153E
92153F
92153G
92171
92171A
92200
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-S006 1
HEAD-COMP-CYLINDER 11008 11008-S004 1
GASKET,5.8X13X1.2 11061 11061-S001 1
COVER,THERMOSTAT 14091 14091-S081 1
HOLDER-CARBURETOR 16065 16065-S007 1
GUIDE-VALVE 49002 49002-S003 4
THERMOSTAT,WATER 49054 49054-S005 1
PIN 92043 92043-S003 2
PIN,6.2X8X11 92043A 92043-S004 4
PLUG-SPARK,CR8E(NGK) 92070 92070-S001 1 (OPTION)
PLUG-SPARK,U24ESR-N(ND) 92070A 92070-S002 1 (OPTION)
PLUG-SPARK,CR9E(NGK) 92070B 92070-S003 1 (OPTION)
PLUG-SPARK,U27ESR-N(ND) 92070C 92070-S004 1 (OPTION)
PLUG-SPARK,U22ESR-N(ND) 92070D 92070-S005 1
PLUG-SPARK,CR7E(NGK) 92070E 92070-S006 1
PLUG-SPARK,CR6E(NGK) 92070F 92070-S020 1 (OPTION)
PLUG-SPARK,U20ESR(DN) 92070G 92070-S021 1 (OPTION)
BOLT 92153 92153-S001 2
BOLT 92153A 92153-S010 1
BOLT,10X175 92153B 92153-S036 4
BOLT 92153C 92153-S092 1
BOLT 92153D 92153-S214 2
BOLT 92153E 92153-S253 6
BOLT,6X39 92153F 92153-S263 2
BOLT,CYLINDER HEAD 92153G 92153-S290 1
CLAMP 92171 92171-S030 1
CLAMP 92171A 92171-S090 1
WASHER,10.5X19X2.0 92200 92200-S009 4
WASHER 92200A 92200-S150 1
NUT 92210 92210-S015 1
