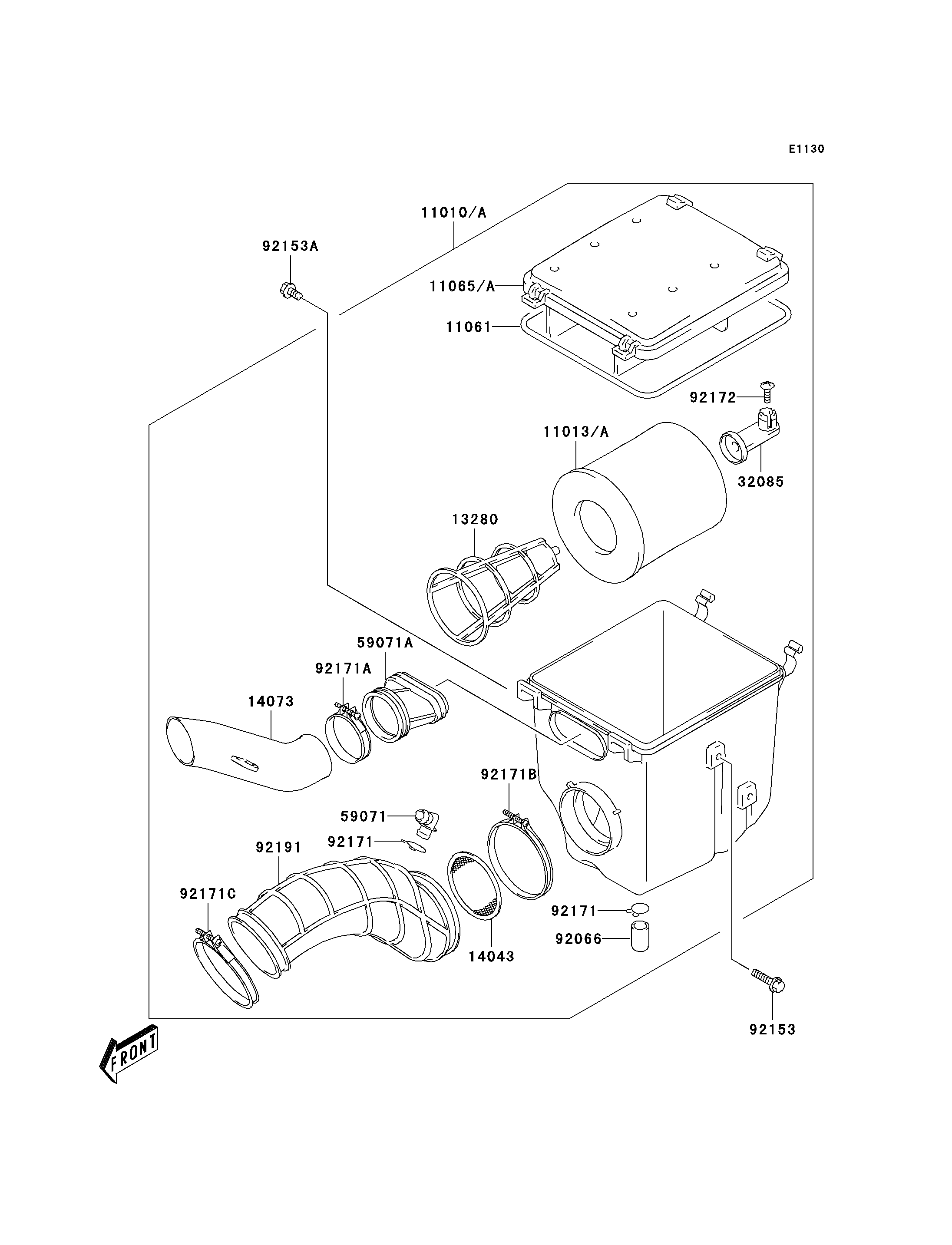

Parts Diagrams |
11010
11013A
11061
11065
13280
14043
14073
32085
59071
59071A
92066
92153
92153A
92171
92171
92171A
92171B
92171C
92172
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-S006 | 1 | ||
| ELEMENT-AIR FILTER | 11013A | 11013-S011 | 1 | ||
| GASKET | 11061 | 11061-S075 | 1 | ||
| CAP,AIR CLEANER | 11065 | 11065-S035 | 1 | ||
| HOLDER | 13280 | 13280-S024 | 1 | ||
| FILTER | 14043 | 14043-S004 | 1 | ||
| DUCT,INLET | 14073 | 14073-S011 | 1 | ||
| STOPPER,HOLDER | 32085 | 32085-S011 | 1 | ||
| JOINT | 59071 | 59071-S002 | 1 | ||
| JOINT,INLET | 59071A | 59071-S005 | 1 | ||
| PLUG | 92066 | 92066-S004 | 1 | ||
| BOLT | 92153 | 92153-S002 | 2 | ||
| BOLT | 92153A | 92153-S012 | 1 | ||
| CLAMP | 92171 | 92171-S006 | 2 | ||
| CLAMP | 92171A | 92171-S089 | 1 | ||
| CLAMP | 92171B | 92171-S091 | 1 | ||
| CLAMP | 92171C | 92171-S102 | 1 | ||
| SCREW | 92172 | 92172-S055 | 1 | ||
| TUBE,OUTLET | 92191 | 92191-S060 | 1 |
