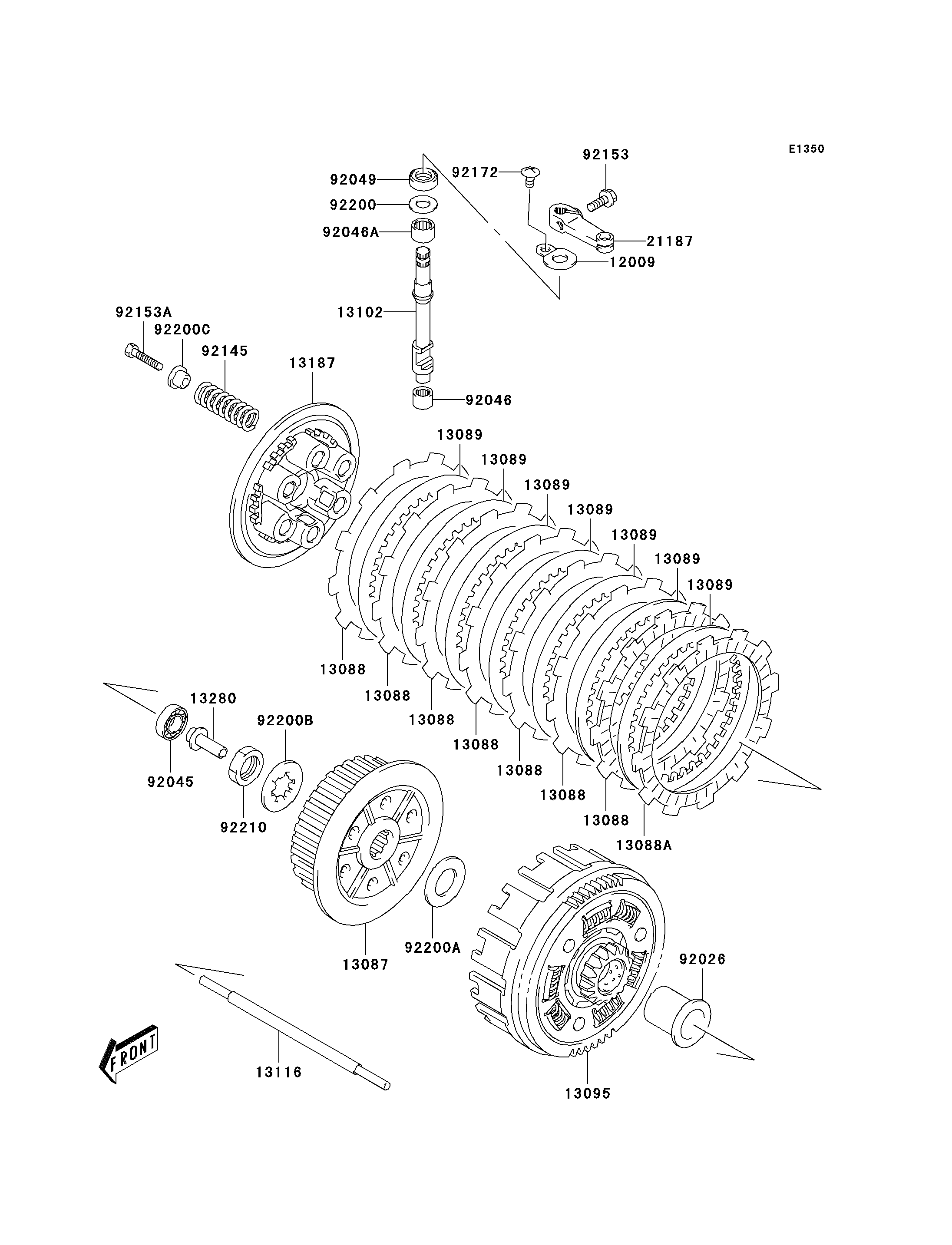

2004 KFX400 - Clutch(A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
12009
13087
13088
13088
13088
13088
13088
13088
13088
13088A
13089
13089
13089
13089
13089
13089
13089
13095
13102
13116
13187
13280
21187
92026
92045
92046
92046A
92049
92145
92153
92153A
92172
92200
92200A
92200B
92200C
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RETAINER-VALVE SPRING 12009 12009-S003 1
HUB-CLUTCH 13087 13087-S003 1
PLATE-FRICTION,NO.1 13088 13088-S003 7
PLATE-FRICTION,NO.2 13088A 13088-S004 1
PLATE-CLUTCH 13089 13089-S003 7
HOUSING-COMP-CLUTCH 13095 13095-S006 1
RELEASE-COMP-CLUTCH 13102 13102-S003 1
ROD-PUSH 13116 13116-S003 1
PLATE-CLUTCH OPERATING 13187 13187-S004 1
HOLDER,CLUTCH PUSH 13280 13280-S025 1
ARM-ASSY,CLUTCH RELEASE 21187 21187-S004 1
SPACER 92026 92026-S094 1
BEARING-BALL,12X28X8 92045 92045-S004 1
BEARING-NEEDLE,CAM SHAFT,LOW 92046 92046-S014 1
BEARING-NEEDLE,CAM SHAFT,UPP 92046A 92046-S015 1
SEAL-OIL,10X20X6 92049 92049-S018 1
SPRING,CLUTCH 92145 92145-S100 6
BOLT 92153 92153-S001 1
BOLT 92153A 92153-S082 6
SCREW 92172 92172-S092 1
WASHER,10X20X1.0 92200 92200-S061 1
WASHER,CLUTCH 92200A 92200-S131 1
WASHER,CLUTCH 92200B 92200-S144 1
WASHER,CLUTCH SPRING 92200C 92200-S153 6
NUT,CLUTCH 92210 92210-S103 1
