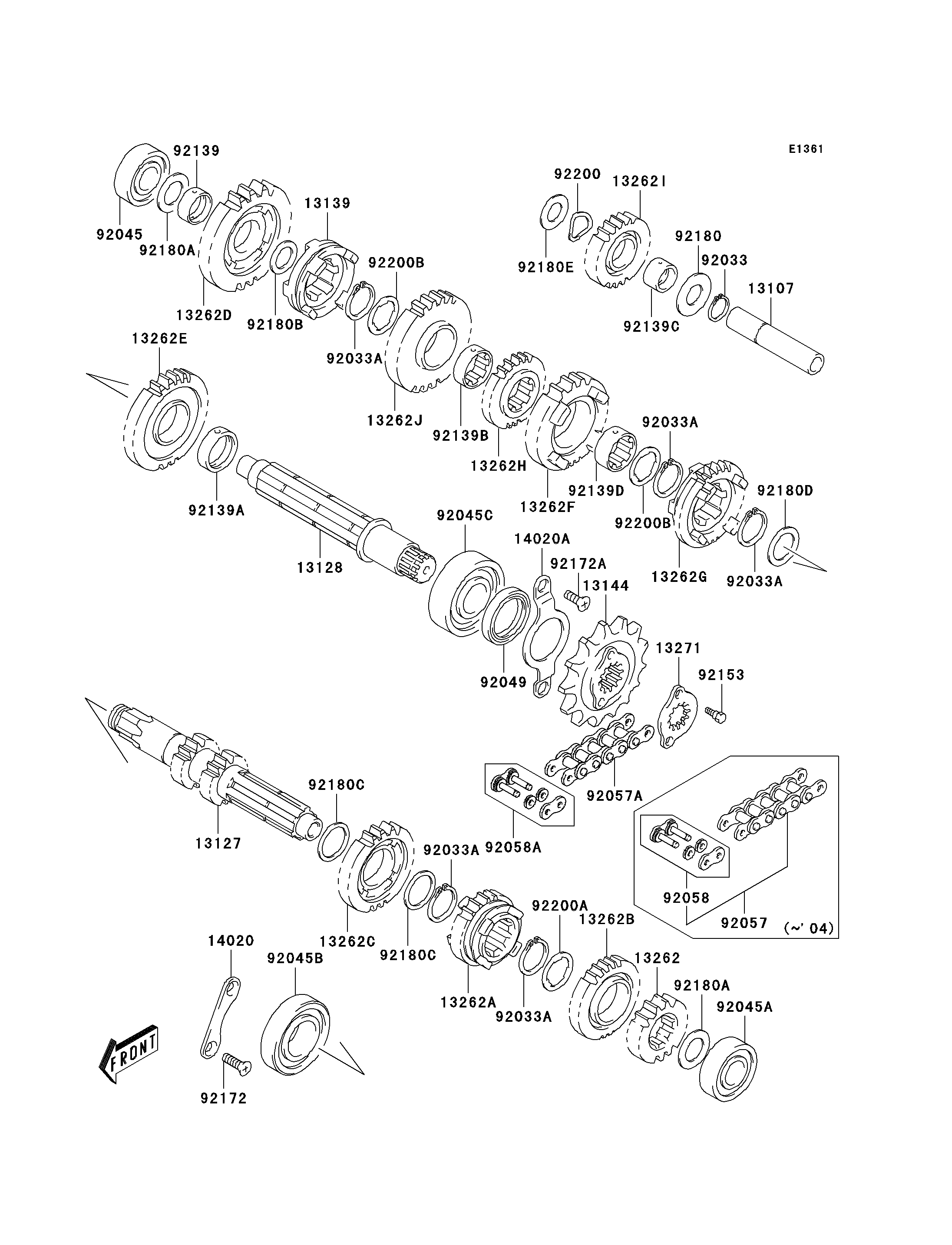

2004 KFX400 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13107
13107
13127
13127
13128
13128
13139
13139
13144
13144
13262
13262
13262A
13262A
13262B
13262B
13262C
13262C
13262D
13262D
13262E
13262E
13262F
13262F
13262G
13262G
13262H
13262H
13262I
13262I
13262J
13262J
13271
13271
14020
14020
14020A
14020A
92033
92033
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92033A
92045
92045
92045A
92045A
92045B
92045B
92045C
92045C
92049
92049
92057
92057
92058
92058
92139
92139
92139A
92139A
92139B
92139B
92139C
92139C
92139D
92139D
92153
92153
92172
92172
92172A
92172A
92180
92180
92180A
92180A
92180A
92180A
92180B
92180B
92180C
92180C
92180C
92180C
92180D
92180D
92180E
92180E
92200
92200
92200A
92200A
92200B
92200B
92200B
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,REVERSE IDLE 13107 13107-S005 1
SHAFT-TRANSMISSION INPUT 13127 13127-S006 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-S008 1
SHIFTER,REVERSE 13139 13139-S002 1
SPROCKET-OUTPUT,14T 13144 13144-S006 1
GEAR,INPUT,2ND,18T 13262 13262-S011 1
GEAR,INPUT,3RD,21T 13262A 13262-S012 1
GEAR,INPUT,4TH,23T 13262B 13262-S013 1
GEAR,INPUT,5TH,26T 13262C 13262-S014 1
GEAR,OUTPUT,LOW,33T 13262D 13262-S015 1
GEAR,OUTPUT,2ND,30T 13262E 13262-S016 1
GEAR,OUTPUT,3RD,26T 13262F 13262-S017 1
GEAR,OUTPUT,4TH,23T 13262G 13262-S018 1
GEAR,OUTPUT,5TH,22T 13262H 13262-S019 1
GEAR,REVERSE,24T 13262I 13262-S020 1
GEAR,REVERSE,28T 13262J 13262-S033 1
PLATE 13271 13271-S047 1
RETAINER 14020 14020-S007 1
RETAINER 14020A 14020-S010 1
RING-SNAP 92033 92033-S034 1
RING-SNAP 92033A 92033-S039 5
BEARING-BALL,17X40X12 92045 92045-S035 1
BEARING-BALL 92045A 92045-S051 1
BEARING-BALL 92045B 92045-S052 1
BEARING-BALL 92045C 92045-S053 1
SEAL-OIL,DRIVE SHAFT 92049 92049-S051 1
CHAIN,DRIVE(RK520KZOX112L) 92057 92057-S013 1
JOINT-CHAIN 92058 92058-S004 1
BUSHING 92139 92139-S022 1
BUSHING,2ND GEAR 92139A 92139-S023 1
BUSHING 92139B 92139-S025 1
BUSHING,REVERSE IDLE GEAR 92139C 92139-S026 1
BUSHING,3RD GEAR 92139D 92139-S027 1
BOLT,ENGINE SPROCKET 92153 92153-S284 2
SCREW 92172 92172-S112 2
SCREW,RETAINER 92172A 92172-S171 2
SHIM,REVERSE IDLE GEAR 92180 92180-S013 1
SHIM,17X30X1.0 92180A 92180-S014 2
SHIM,20X30X1.0 92180B 92180-S015 1
SHIM,5TH GEAR 92180C 92180-S016 2
SHIM,2ND GEAR 92180D 92180-S017 1
SHIM,REVERSE IDLE GEAR 92180E 92180-S046 1
WASHER,REVERSE GEAR 92200 92200-S142 1
WASHER 92200A 92200-S145 1
WASHER,3RD GEAR 92200B 92200-S146 2
