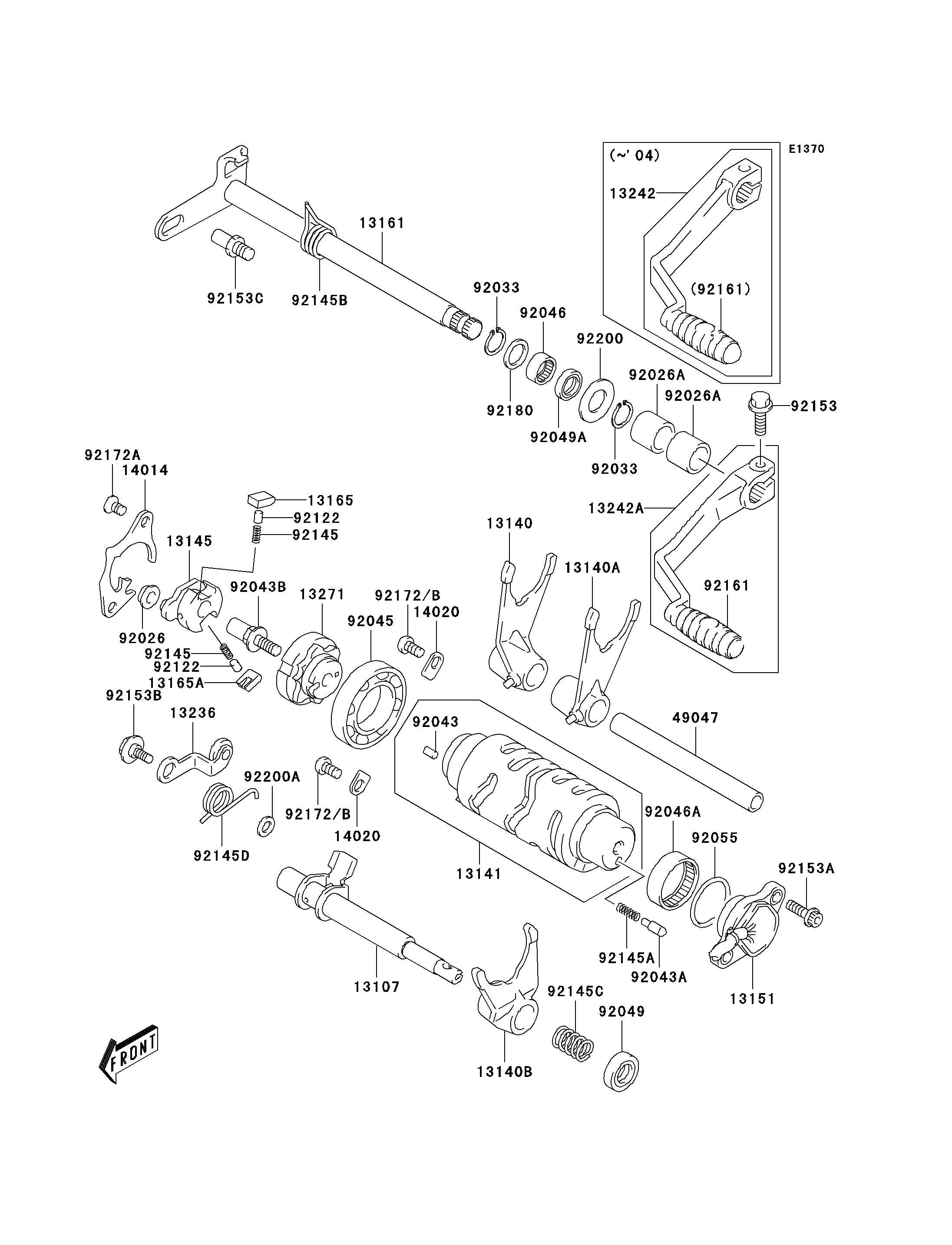

2004 KFX400 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13107
13107
13140
13140
13140A
13140A
13140B
13140B
13141
13141
13145
13145
13151
13151
13161
13161
13165
13165
13165A
13165A
13236
13236
13242
13242
13271
13271
14014
14014
14020
14020
14020
14020
49047
49047
92026
92026
92026A
92026A
92026A
92026A
92033
92033
92033
92033
92043
92043
92043A
92043A
92043B
92043B
92045
92045
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92055
92055
92122
92122
92122
92122
92145
92145
92145
92145
92145A
92145A
92145B
92145B
92145C
92145C
92145D
92145D
92153
92153
92153A
92153A
92153B
92153B
92153C
92153C
92161
92161
92172A
92172A
92172B
92172B
92172B
92172B
92180
92180
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,REVERSE LOCK 13107 13107-S006 1
FORK-SHIFT 13140 13140-S008 1
FORK-SHIFT 13140A 13140-S009 1
FORK-SHIFT 13140B 13140-S010 1
DRUM-CHANGE 13141 13141-S005 1
CAM-CHANGE DRUM 13145 13145-S004 1
SWITCH-COMP 13151 13151-S002 1
LEVER-COMP-CHANGE SHAFT 13161 13161-S004 1
PAWL 13165 13165-S003 1
PAWL 13165A 13165-S004 1
LEVER-COMP,GEAR SHIFT 13236 13236-S005 1
LEVER-ASSY-CHANGE 13242 13242-S006 1
PLATE 13271 13271-S046 1
PLATE-POSITION 14014 14014-S004 1
RETAINER 14020 14020-S008 2
ROD-SHIFT 49047 49047-S004 1
SPACER,GEAR SHIFT CAM 92026 92026-S087 1
SPACER 92026A 92026-S089 2
RING-SNAP 92033 92033-S037 2
PIN,CAM STOPPER PLATE 92043 92043-S035 1
PIN,GEAR SHIFT 92043A 92043-S038 2
PIN,SHIFT CAM 92043B 92043-S041 1
BEARING-BALL,GEAR SHIFT 92045 92045-S047 1
BEARING-NEEDLE,14X20X12 92046 92046-S008 1
BEARING-NEEDLE,GEAR SHIFT CAM 92046A 92046-S020 1
SEAL-OIL,REVERSE LOCK SHAFT 92049 92049-S049 1
SEAL-OIL,GEAR SHIFT 92049A 92049-S050 1
RING-O,26.2X2.4 92055 92055-S055 1
ROLLER,5X8 92122 92122-S005 2
SPRING 92145 92145-S037 2
SPRING 92145A 92145-S089 2
SPRING 92145B 92145-S094 1
SPRING,REVERSE LOCK 92145C 92145-S101 1
SPRING 92145D 92145-S102 1
BOLT 92153 92153-S013 1
BOLT 92153A 92153-S252 2
BOLT,6X14.3 92153B 92153-S285 1
BOLT 92153C 92153-S292 1
DAMPER,PEDAL 92161 92161-S093 1
SCREW 92172A 92172-S112 2
SCREW 92172B 92172-S170 2
SHIM,GEAR SHIFT 92180 92180-S045 1
WASHER,14X29X1.50 92200 92200-S086 1
WASHER 92200A 92200-S127 1
