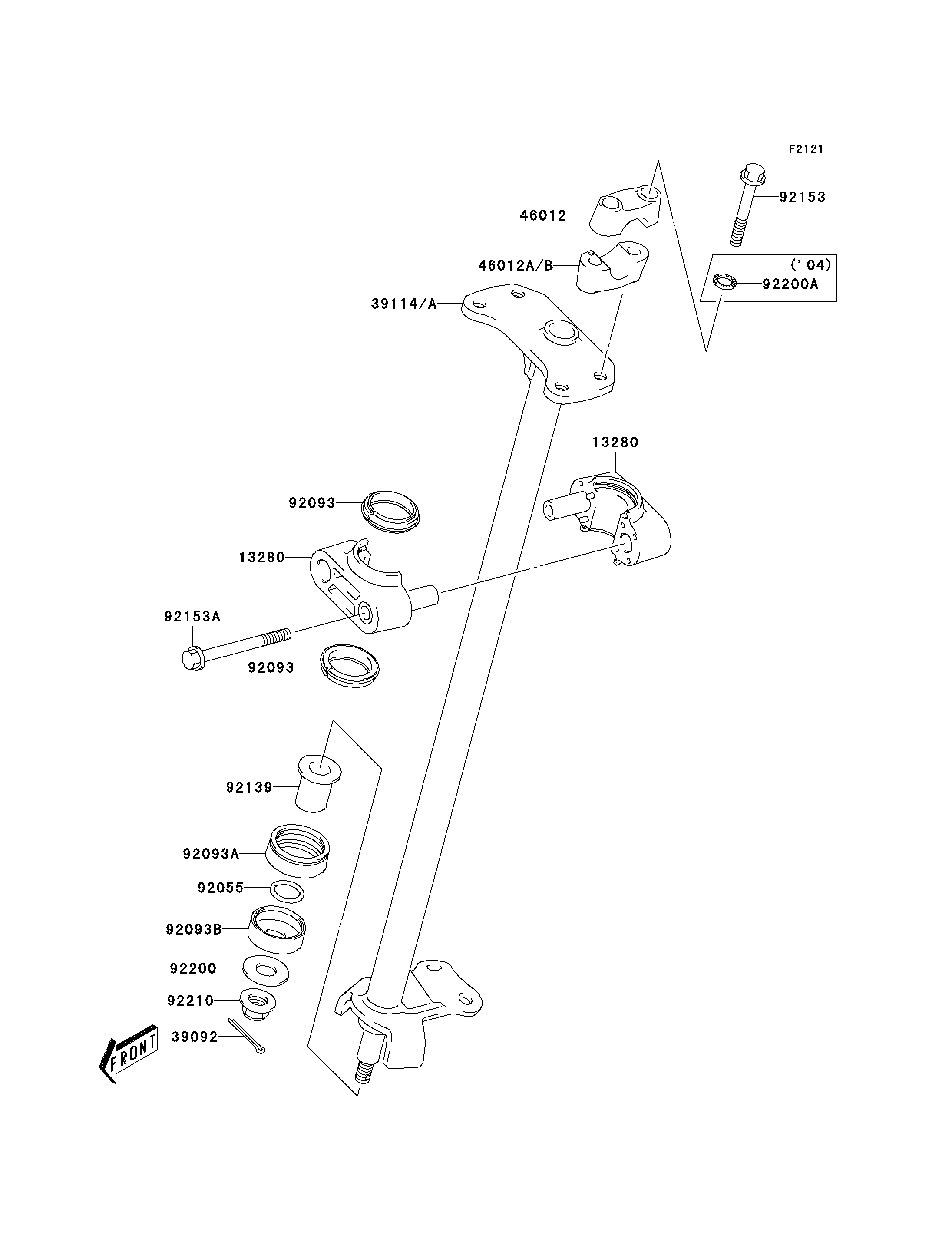

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13280
13280
39092
39114A
46012
46012B
92055
92093
92093
92093A
92093B
92139
92153
92153A
92200
92200A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13280 | 13280-S026 | 2 | ||
| PIN-HAIR,COTTER | 39092 | 39092-S005 | 1 | ||
| SHAFT-COMP-STRG | 39114A | 39114-S004 | 1 | ||
| HOLDER-HANDLE,BLACK | 46012 | 46012-S003-504 | 2 | ||
| HOLDER-HANDLE,BLACK | 46012B | 46012-S007-504 | 2 | ||
| RING-O,D=3.1 | 92055 | 92055-S006 | 1 | ||
| SEAL | 92093 | 92093-S038 | 2 | ||
| SEAL | 92093A | 92093-S052 | 1 | ||
| SEAL | 92093B | 92093-S053 | 1 | ||
| BUSHING,STEERING SHAFT | 92139 | 92139-S030 | 1 | ||
| BOLT | 92153 | 92153-S249 | 4 | ||
| BOLT,STEERING SHAFT HOLDER | 92153A | 92153-S250 | 2 | ||
| WASHER,STEERING SHAFT | 92200 | 92200-S137 | 1 | ||
| WASHER | 92200A | 92200-S233 | 4 | ||
| NUT | 92210 | 92210-S032 | 1 |
