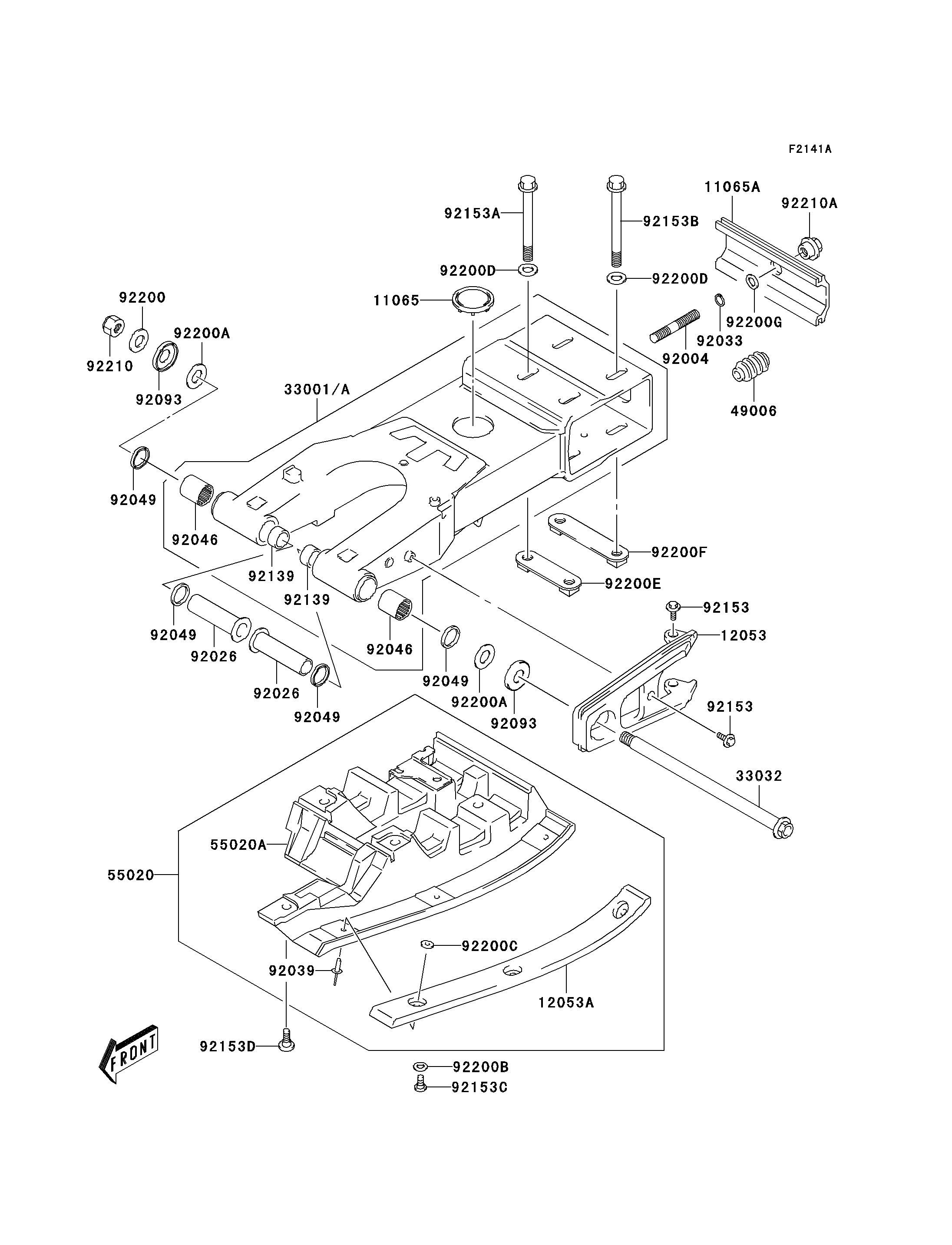

2004 KFX400 - Swingarm(A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065A
12053
12053A
33001
33032
49006
55020
55020A
92004
92026
92026
92033
92039
92046
92046
92049
92049
92049
92049
92093
92093
92139
92139
92153
92153
92153A
92153B
92153C
92153D
92200
92200A
92200A
92200B
92200C
92200D
92200D
92200E
92200F
92200G
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWINGING ARM 11065 11065-S038 1
CAP,CHAIN ADJUSTER 11065A 11065-S064 1
GUIDE-CHAIN 12053 12053-S017 1
GUIDE-CHAIN 12053A 12053-S024 1
ARM-COMP-SWING 33001 33001-S014 1
SHAFT-SWING ARM 33032 33032-S007 1
BOOT 49006 49006-S038 1
GUARD,SWING ARM 55020 55020-S035 1
GUARD,SWING ARM 55020A 55020-S036 1
STUD,CHAIN ADJUSTER 92004 92004-S014 1
SPACER 92026 92026-S100 2
RING-SNAP 92033 92033-S002 1
RIVET 92039 92039-S011 3
BEARING-NEEDLE,SWING ARM 92046 92046-S019 2
SEAL-OIL,SWING ARM 92049 92049-S053 4
SEAL 92093 92093-S040 2
BUSHING 92139 92139-S029 2
BOLT 92153 92153-S306 3
BOLT 92153A 92153-S373 2
BOLT 92153B 92153-S374 2
BOLT,GUARD CENTER 92153C 92153-S398 2
BOLT 92153D 92153-S399 3
WASHER,16.2X30X2.6 92200 92200-S011 1
WASHER 92200A 92200-S054 2
WASHER,MAGNETO 92200B 92200-S092 2
WASHER 92200C 92200-S215 3
WASHER 92200D 92200-S225 4
WASHER 92200E 92200-S226 1
WASHER 92200F 92200-S227 1
WASHER 92200G 92200-S234 1
NUT 92210 92210-S133 1
NUT 92210A 92210-S146 1
