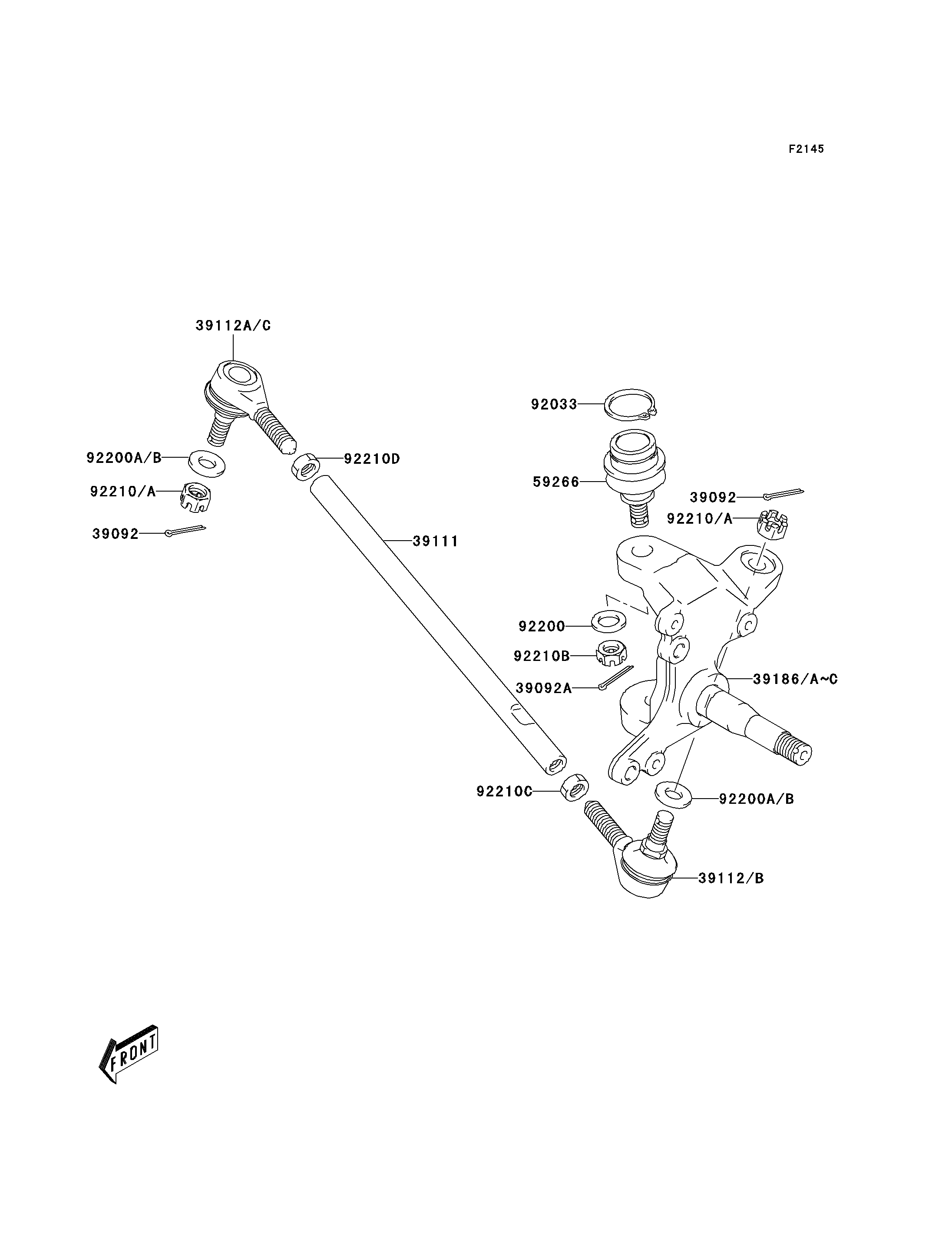

2004 KFX400 - Knuckle Arm(A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
39092
39092
39092A
39111
39112B
39112C
39186B
39186C
59266
92033
92200
92200A
92200A
92210A
92210A
92210B
92210C
92210D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-HAIR,COTTER 39092 39092-S005 4
PIN-HAIR 39092A 39092-S011 4
ROD-TIE 39111 39111-S004 2
RODEND-TIE 39112B 39112-S009 2
RODEND-TIE 39112C 39112-S010 2
KNUCKLE,RH 39186B 39186-S007 1
KNUCKLE,LH 39186C 39186-S008 1
JOINT-BALL 59266 59266-S001 4
RING-SNAP 92033 92033-S038 4
WASHER 92200 92200-S029 4
WASHER,STEERING SHAFT,LWR 92200A 92200-S096 4
NUT 92210A 92210-S052 4
NUT 92210B 92210-S064 4
NUT,TIE-ROD 92210C 92210-S072 2
NUT,TIE-ROD 92210D 92210-S073 2
