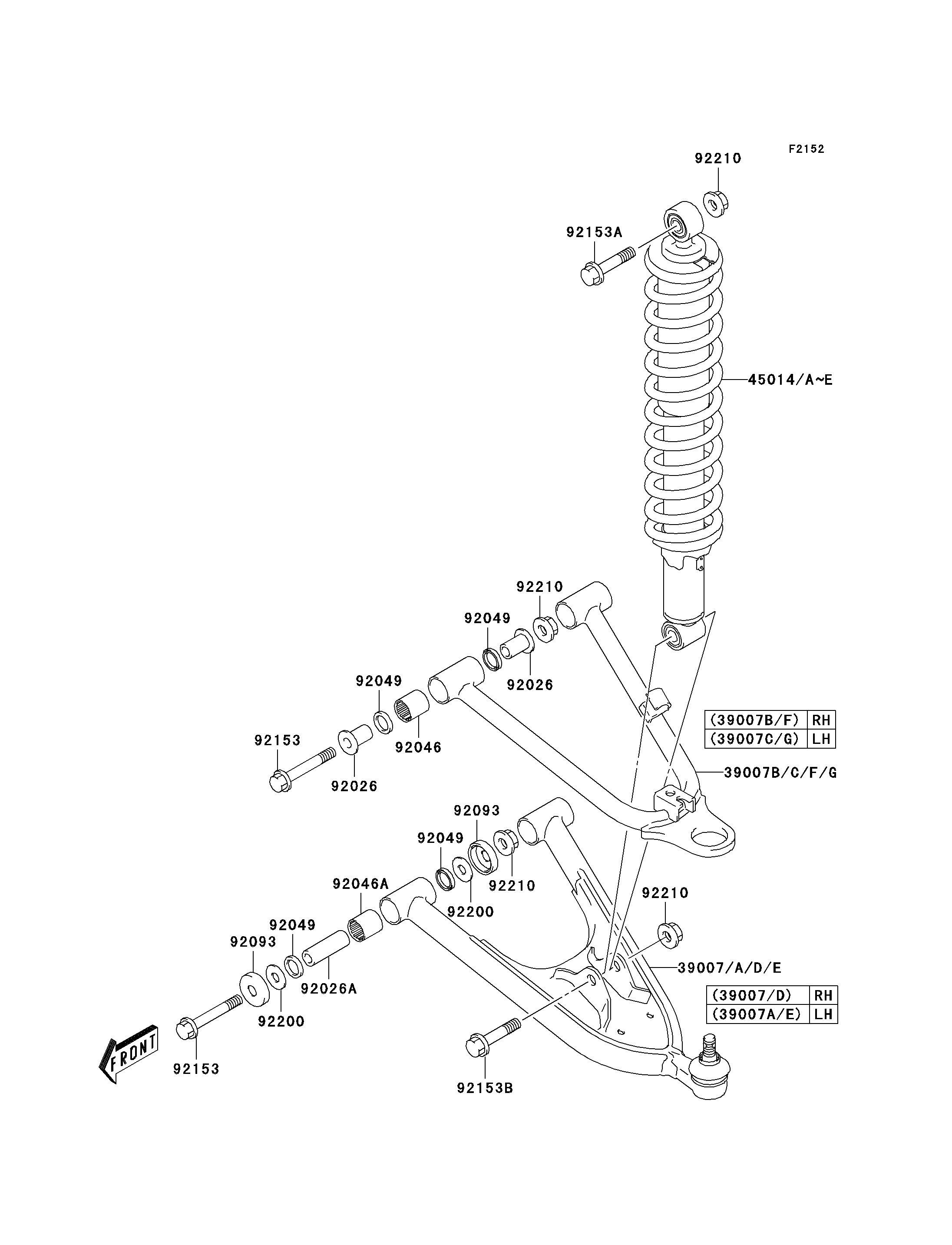

2004 KFX400 - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
39007
39007A
39007B
39007C
45014
45014A
92026
92026
92026A
92046
92046A
92049
92049
92049
92049
92093
92093
92153
92153
92153A
92153B
92200
92200
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,LWR,RH,S.SILVER 39007 39007-S007-514 1
ARM-SUSP,LWR,LH,S.SILVER 39007A 39007-S008-514 1
ARM-SUSP,UPP,RH,S.SILVER 39007B 39007-S009-514 1
ARM-SUSP,UPP,LH,S.SILVER 39007C 39007-S010-514 1
SHOCKABSORBER,L.GREEN 45014 45014-S017-535 2
SHOCKABSORBER,S.WHITE 45014A 45014-S017-573 2
SPACER 92026 92026-S095 8
SPACER 92026A 92026-S096 4
BEARING-NEEDLE,17X24X26 92046 92046-S003 4
BEARING-NEEDLE,SUSPENSION ARM 92046A 92046-S016 4
SEAL-OIL,REAR CUSHION ROD 92049 92049-S024 16
SEAL 92093 92093-S039 8
BOLT,SUSPENSION ARM 92153 92153-S267 8
BOLT,SHOCK ABSORBER,10X38 92153A 92153-S275 2
BOLT,SHOCK ABSORBER,10X48 92153B 92153-S276 2
WASHER,SUSPENSION ARM 92200 92200-S130 8
NUT 92210 92210-S015 12
