Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
39007
39007A
49001
49001
49001
55020
92026
92026A
92026B
92026C
92026C
92026C
92026C
92026C
92026C
92026D
92046
92046A
92046A
92046A
92046A
92046A
92046A
92093
92093
92093A
92093A
92093A
92093A
92093A
92093A
92153
92153A
92153B
92153C
92153D
92172
92210
92210
92210A
92210B
92210B
92210B

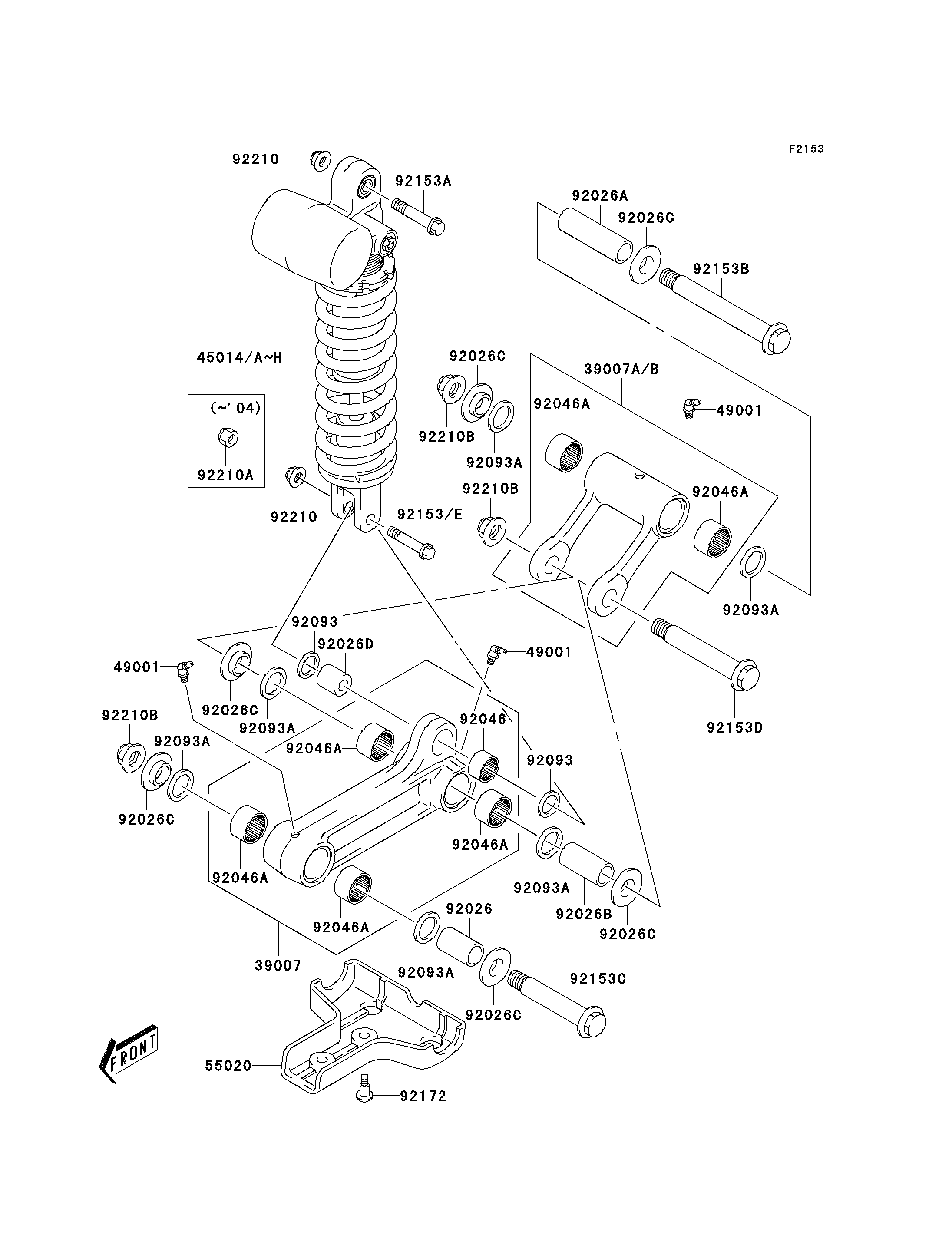

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP | 39007 | 39007-S011 | 1 | ||
| ARM-SUSP | 39007A | 39007-S012 | 1 | ||
| NIPPLE-GREASE | 49001 | 49001-S003 | 3 | ||
| GUARD | 55020 | 55020-S019 | 1 | ||
| SPACER | 92026 | 92026-S101 | 1 | ||
| SPACER | 92026A | 92026-S102 | 1 | ||
| SPACER | 92026B | 92026-S103 | 1 | ||
| SPACER | 92026C | 92026-S104 | 6 | ||
| SPACER | 92026D | 92026-S105 | 1 | ||
| BEARING-NEEDLE | 92046 | 92046-S017 | 1 | ||
| BEARING-NEEDLE | 92046A | 92046-S018 | 6 | ||
| SEAL | 92093 | 92093-S032 | 2 | ||
| SEAL | 92093A | 92093-S041 | 6 | ||
| BOLT | 92153 | 92153-S273 | 1 | ||
| BOLT | 92153A | 92153-S300 | 1 | ||
| BOLT | 92153B | 92153-S301 | 1 | ||
| BOLT | 92153C | 92153-S303 | 1 | ||
| BOLT | 92153D | 92153-S307 | 1 | ||
| SCREW | 92172 | 92172-S175 | 2 | ||
| NUT | 92210 | 92210-S015 | 1 | ||
| NUT | 92210A | 92210-S105 | 1 | ||
| NUT | 92210B | 92210-S106 | 3 | ||
| SHOCKABSORBER,L.GREEN | 45014A | 45014-S036-535 | 1 | US | |
| SHOCKABSORBER,S.WHITE | 45014B | 45014-S036-573 | 1 | US | |
| SHOCKABSORBER,L.GREEN | 45014C | 45014-S037-535 | 1 | CN | |
| SHOCKABSORBER,S.WHITE | 45014D | 45014-S037-573 | 1 | CN |
| ARM-SUSP | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP | |
| REF # | 39007A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-GREASE | |
| REF # | 49001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GUARD | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER,L.GREEN | |
| REF # | 45014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| SHOCKABSORBER,S.WHITE | |
| REF # | 45014B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| SHOCKABSORBER,L.GREEN | |
| REF # | 45014C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SHOCKABSORBER,S.WHITE | |
| REF # | 45014D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
