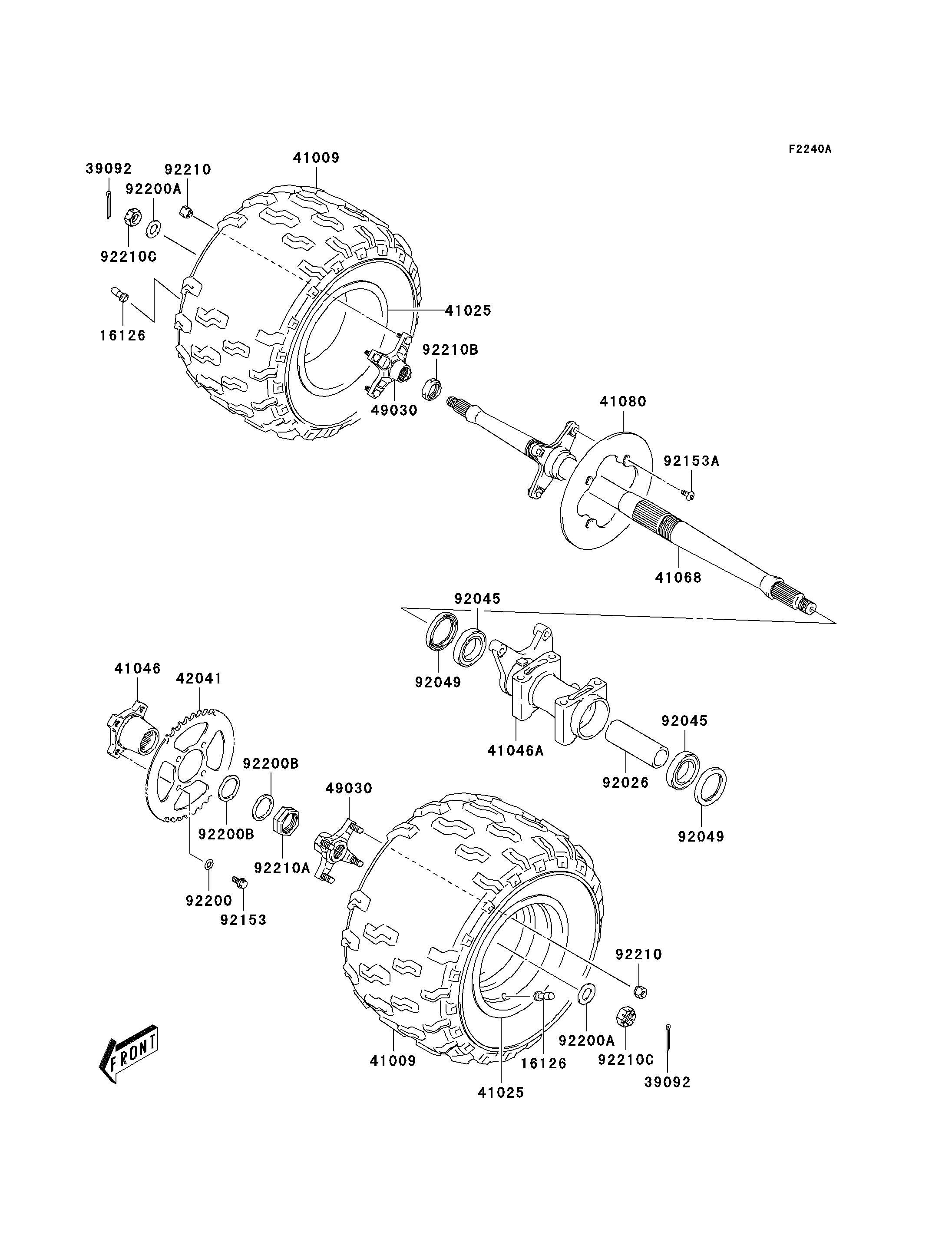

2004 KFX400 - Rear Hub(A2)

DOWNLOAD PDF
SELECT A NEW PART
16126
16126
39092
39092
41009
41009
41025
41025
41046
41046A
41068
41080
42041
49030
49030
92026
92045
92045
92049
92049
92153
92153A
92200
92200A
92200A
92200B
92200B
92210
92210
92210A
92210B
92210C
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,WHEEL RIM,TR412 16126 16126-S002 2
PIN-HAIR,REAR HUB 39092 39092-S010 2
TIRE,RR 41009 41009-S013 2
RIM,REAR WHEEL,9X8.0AT 41025 41025-S009 2
HOUSING-BEARING 41046 41046-S004 1
HOUSING-BEARING 41046A 41046-S006 1
AXLE,RR 41068 41068-S015 1
DISC,REAR BRAKE 41080 41080-S006 1
SPROCKET-HUB 42041 42041-S006 1
HUB,RR,F.GRAY 49030 49030-S004-563 2
SPACER,REAR AXLE 92026 92026-S106 1
BEARING-BALL,REAR AXLE 92045 92045-S049 2
SEAL-OIL,AXLE 92049 92049-S052 2
BOLT,REAR SPROCKET 92153 92153-S277 4
BOLT 92153A 92153-S283 4
WASHER,REAR SPROCKET 92200 92200-S139 4
WASHER,REAR HUB 92200A 92200-S141 2
WASHER,REAR AXLE 92200B 92200-S143 2
NUT,WHEEL 92210 92210-S100 8
NUT,REAR AXLE 92210A 92210-S109 1
NUT,REAR AXLE 92210B 92210-S110 1
NUT,REAR HUB 92210C 92210-S113 2
