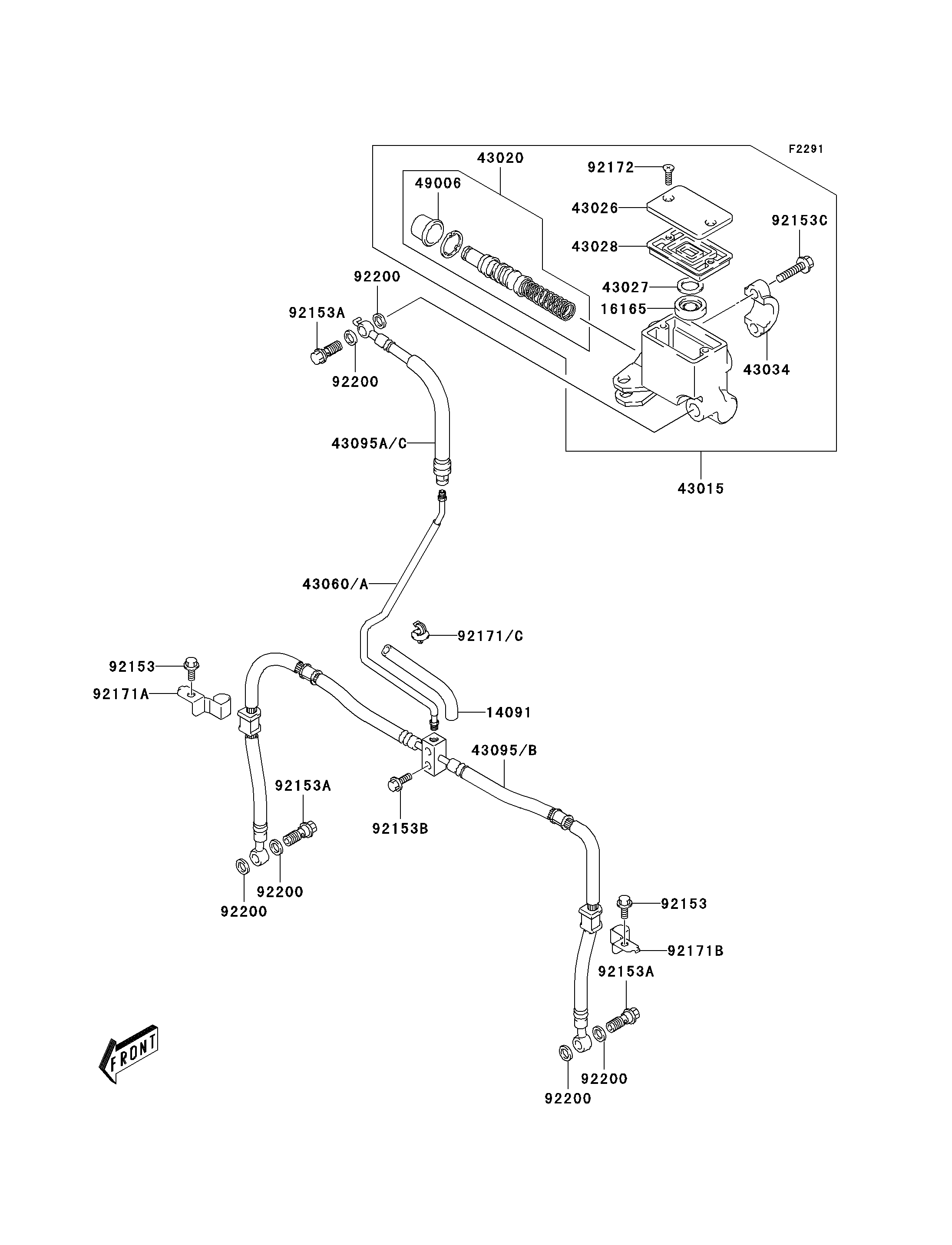

Parts Diagrams |
14091
16165
43015
43020
43026
43027
43028
43034
43060
43095
43095A
49006
92153
92153
92153A
92153A
92153A
92153B
92153C
92171
92171A
92171B
92172
92200
92200
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,BRAKE PIPE | 14091 | 14091-S092 | 1 | ||
| SEPARATOR | 16165 | 16165-S004 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-S008 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-S004 | 1 | ||
| CAP-BRAKE | 43026 | 43026-S006 | 1 | ||
| PLATE-DIAPHRAGM | 43027 | 43027-S001 | 1 | ||
| DIAPHRAGM | 43028 | 43028-S005 | 1 | ||
| HOLDER-BRAKE | 43034 | 43034-S002 | 1 | ||
| PIPE-BRAKE | 43060 | 43060-S002 | 1 | ||
| HOSE-BRAKE | 43095 | 43095-S007 | 1 | ||
| HOSE-BRAKE | 43095A | 43095-S008 | 1 | ||
| BOOT | 49006 | 49006-S004 | 1 | ||
| BOLT | 92153 | 92153-S010 | 2 | ||
| BOLT | 92153A | 92153-S053 | 3 | ||
| BOLT | 92153B | 92153-S144 | 1 | ||
| BOLT,6X25 | 92153C | 92153-S298 | 2 | ||
| CLAMP,BRAKE CABLE | 92171 | 92171-S092 | 1 | ||
| CLAMP,BRAKE HOSE | 92171A | 92171-S100 | 1 | ||
| CLAMP,BRAKE HOSE | 92171B | 92171-S101 | 1 | ||
| SCREW,RESERVOIR CAP | 92172 | 92172-S054 | 2 | ||
| WASHER,10X15X1.5 | 92200 | 92200-S014 | 6 |
| COVER,BRAKE PIPE | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ASSY-MASTER,FR | |
| REF # | 43015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BRAKE | |
| REF # | 43026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-DIAPHRAGM | |
| REF # | 43027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-BRAKE | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-BRAKE | |
| REF # | 43060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE | |
| REF # | 43095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE | |
| REF # | 43095A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92153C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE CABLE | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE | |
| REF # | 92171B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,RESERVOIR CAP | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10X15X1.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
