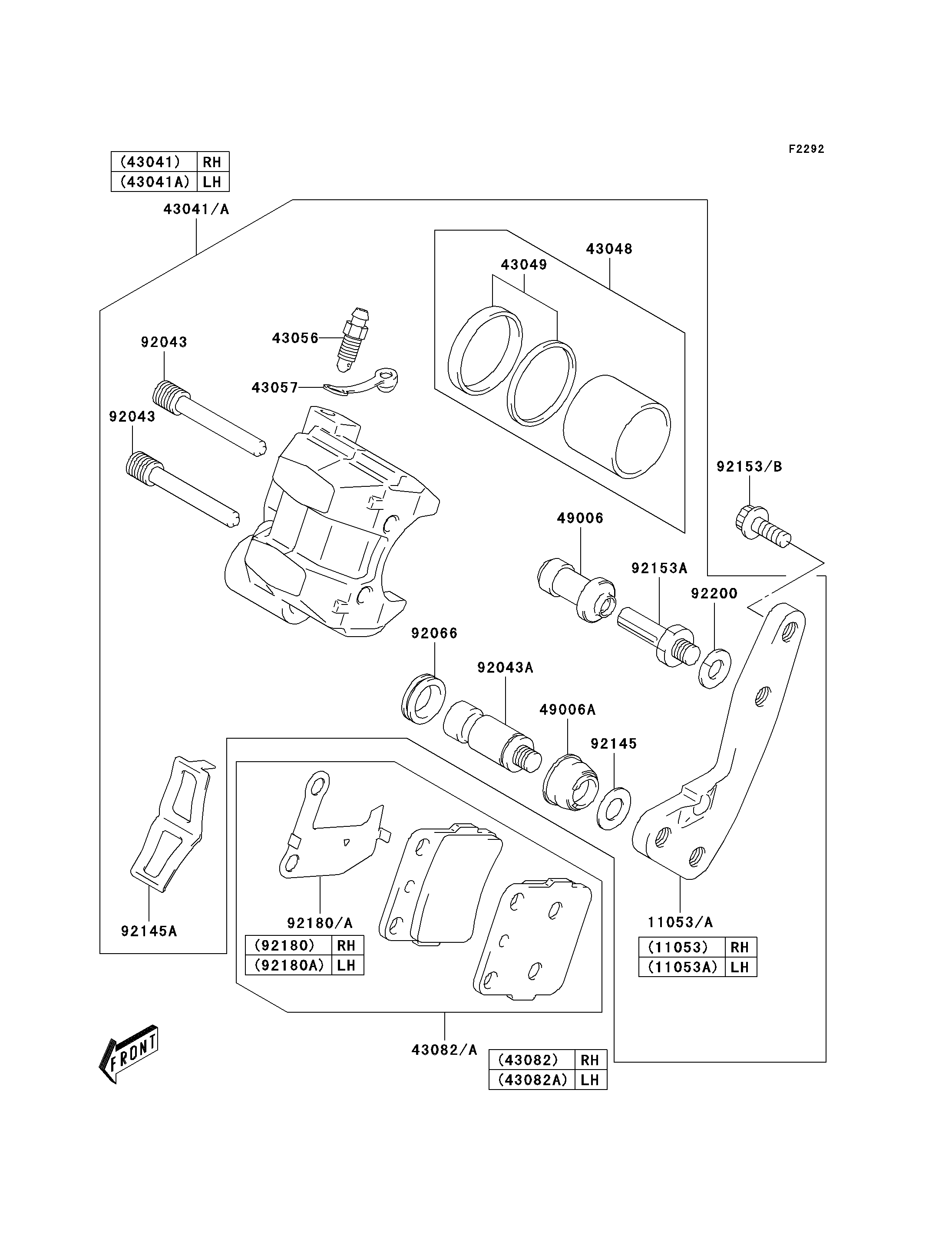

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11053
11053A
43041
43041A
43048
43049
43056
43057
43082
43082A
49006
49006A
92043
92043
92043A
92066
92145
92145A
92153
92153A
92180
92180A
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RH | 11053 | 11053-S017 | 1 | ||
| BRACKET,LH | 11053A | 11053-S018 | 1 | ||
| CALIPER-ASSY,FR,RH | 43041 | 43041-S014 | 1 | ||
| CALIPER-ASSY,FR,LH | 43041A | 43041-S015 | 1 | ||
| PISTON-CALIPER | 43048 | 43048-S004 | 2 | ||
| PACKING,PISTON | 43049 | 43049-S007 | 2 | ||
| BREATHER | 43056 | 43056-S002 | 2 | ||
| CAP-BREATHER | 43057 | 43057-S002 | 2 | ||
| PAD-ASSY-BRAKE,FR,RH | 43082 | 43082-S013 | 1 | ||
| PAD-ASSY-BRAKE,FR,LH | 43082A | 43082-S014 | 1 | ||
| BOOT | 49006 | 49006-S007 | 2 | ||
| BOOT | 49006A | 49006-S021 | 2 | ||
| PIN | 92043 | 92043-S016 | 4 | ||
| PIN | 92043A | 92043-S042 | 2 | ||
| PLUG,DUST | 92066 | 92066-S035 | 2 | ||
| SPRING | 92145 | 92145-S105 | 2 | ||
| SPRING,PAD | 92145A | 92145-S106 | 2 | ||
| BOLT,8X16 | 92153 | 92153-S254 | 4 | ||
| BOLT | 92153A | 92153-S297 | 2 | ||
| SHIM,RH | 92180 | 92180-S043 | 1 | ||
| SHIM,LH | 92180A | 92180-S044 | 1 | ||
| WASHER | 92200 | 92200-S159 | 2 |
