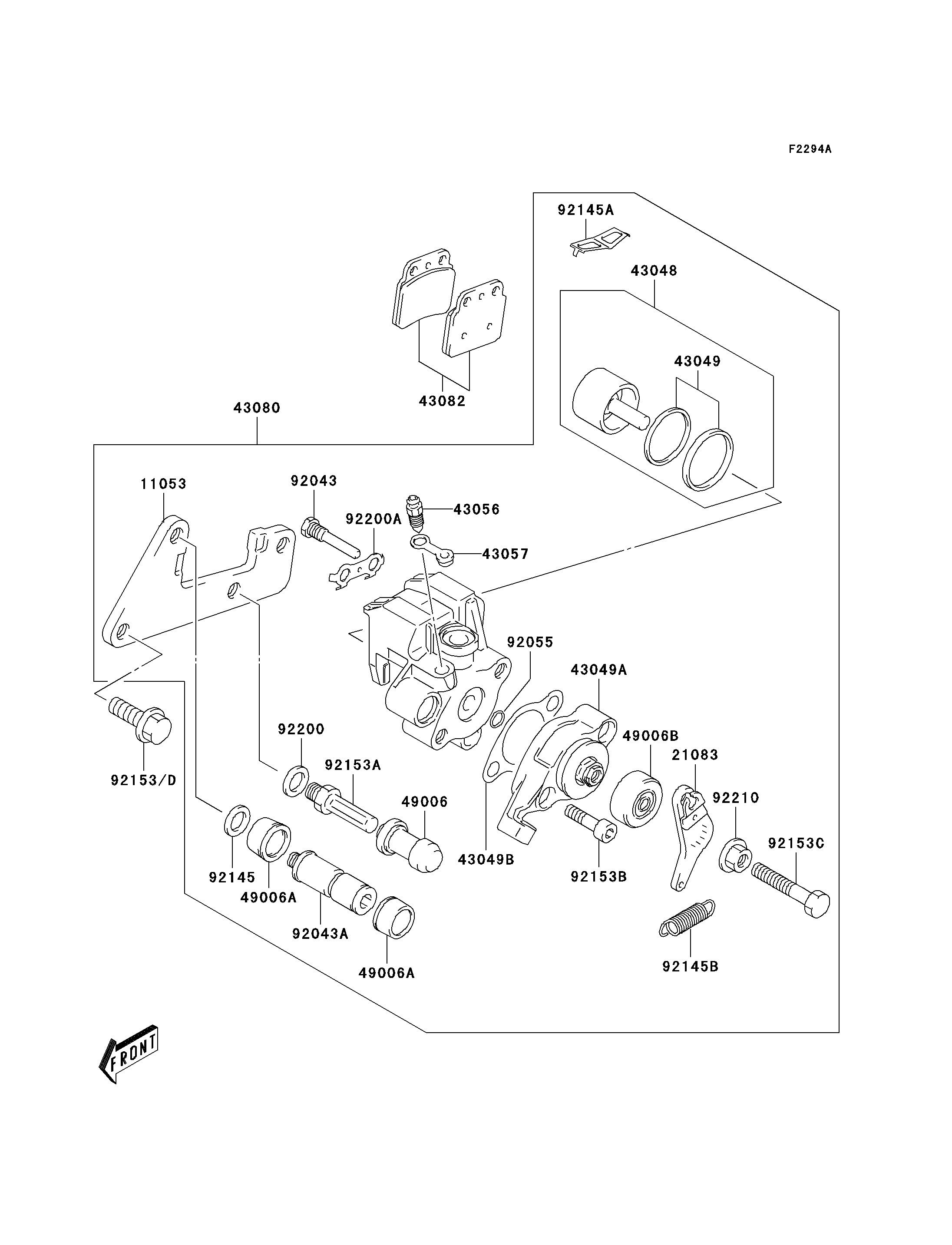

2004 KFX400 - Rear Brake(A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
11053
21083
43048
43049
43049A
43049B
43056
43057
43080
43082
49006
49006A
49006A
49006B
92043
92043A
92055
92145
92145A
92145B
92153
92153A
92153B
92153C
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-S020 1
ARM 21083 21083-S002 1
PISTON-CALIPER 43048 43048-S005 1
PACKING,PISTON 43049 43049-S008 1
PACKING 43049A 43049-S009 1
PACKING 43049B 43049-S010 1
BREATHER 43056 43056-S002 1
CAP-BREATHER 43057 43057-S002 1
CALIPER-SUB-ASSY,RR 43080 43080-S005 1
PAD-ASSY-BRAKE 43082 43082-S007 1
BOOT 49006 49006-S007 1
BOOT 49006A 49006-S021 2
BOOT 49006B 49006-S025 1
PIN 92043 92043-S043 2
PIN 92043A 92043-S044 1
RING-O 92055 92055-S070 1
SPRING 92145 92145-S105 1
SPRING,PAD 92145A 92145-S106 1
SPRING 92145B 92145-S108 1
BOLT,REAR CALIPER 92153 92153-S265 2
BOLT 92153A 92153-S297 1
BOLT 92153B 92153-S308 2
BOLT 92153C 92153-S375 1
WASHER 92200 92200-S159 1
WASHER 92200A 92200-S160 1
NUT 92210 92210-S111 1
