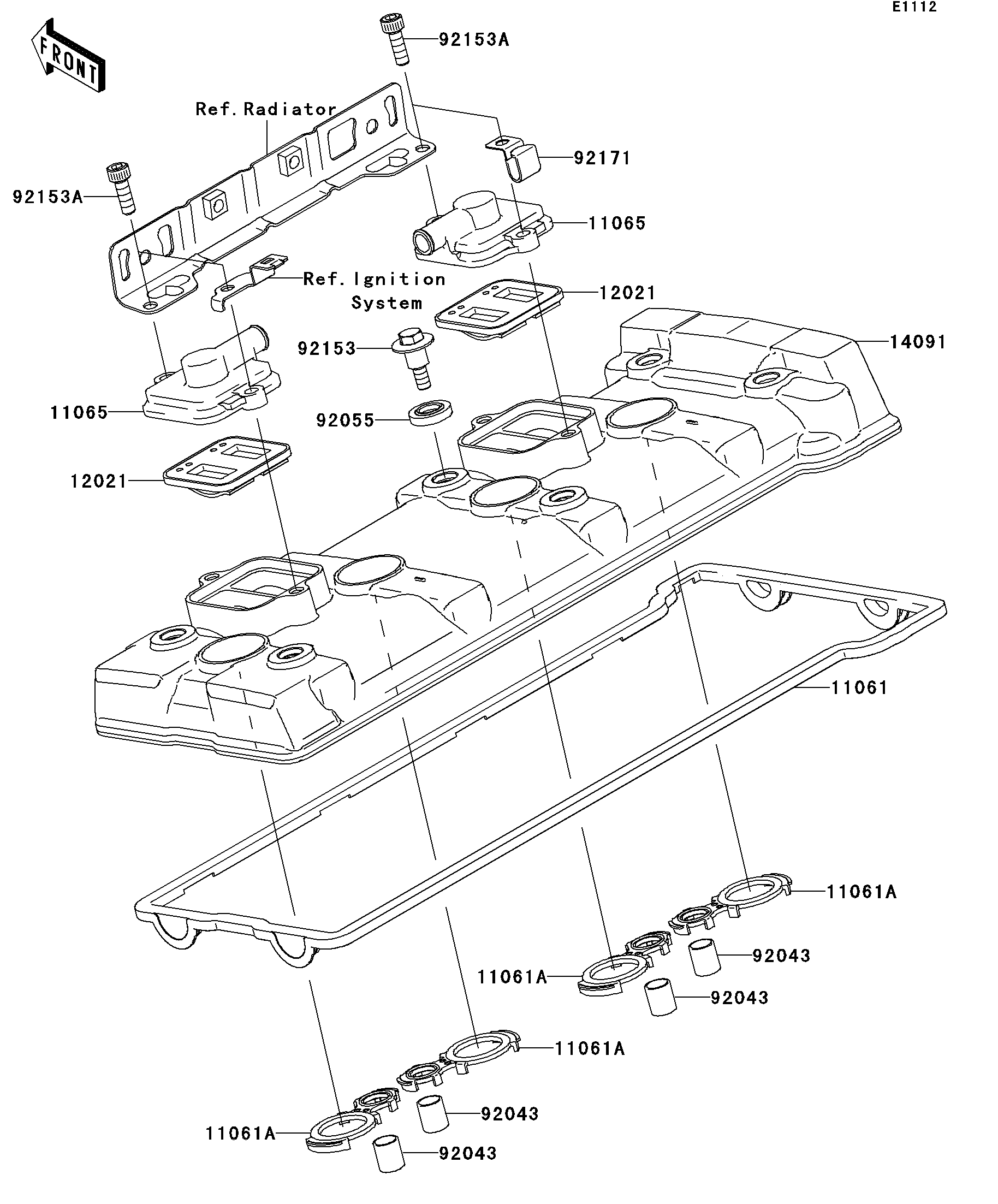

2007 Ninja® ZX™-14 - Cylinder Head Cover

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061A
11061A
11061A
11065
11065
12021
12021
14091
92043
92043
92043
92043
92055
92153
92153A
92153A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11061 11061-0195 1
GASKET,HEAD HOLE 11061A 11061-0196 4
CAP 11065 11065-1247 2
VALVE-ASSY-REED 12021 12021-1130 2
COVER,HEAD,F.S.BLACK 14091 14091-0494-11E 1
PIN,10.1X12X14 92043 92043-4009 4
RING-O,HEAD COVER BOLT 92055 92055-1616 6
BOLT,FLANGED,6X22.5 92153 92153-1016 6
BOLT,SOCKET,6X18 92153A 92153-1559 4
CLAMP 92171 92171-0766 1
