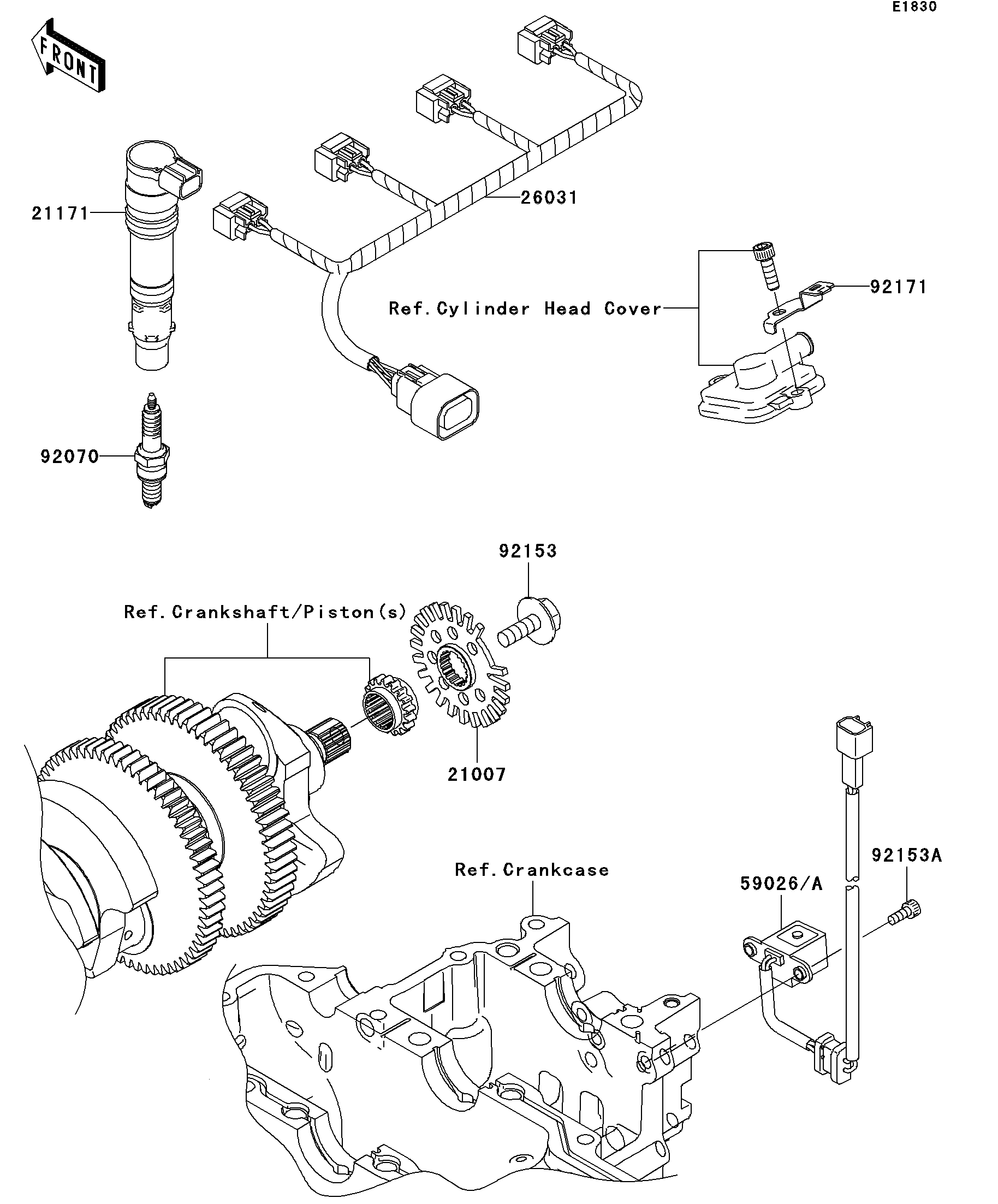

21007
21171
26031
59026A
92070
92153
92153A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR 21007 21007-0066 1
COIL-ASSY-IGNITION 21171 21171-0005 4
HARNESS 26031 26031-0360 1
COIL-PULSING 59026A 59026-0021 1
PLUG-SPARK,CR9EIA(NGK) 92070 92070-0014 AR
BOLT,FLANGED,8X23 92153 92153-0549 1
BOLT,SOCKET,5X12 92153A 92153-1293 2
CLAMP 92171 92171-0524 1
