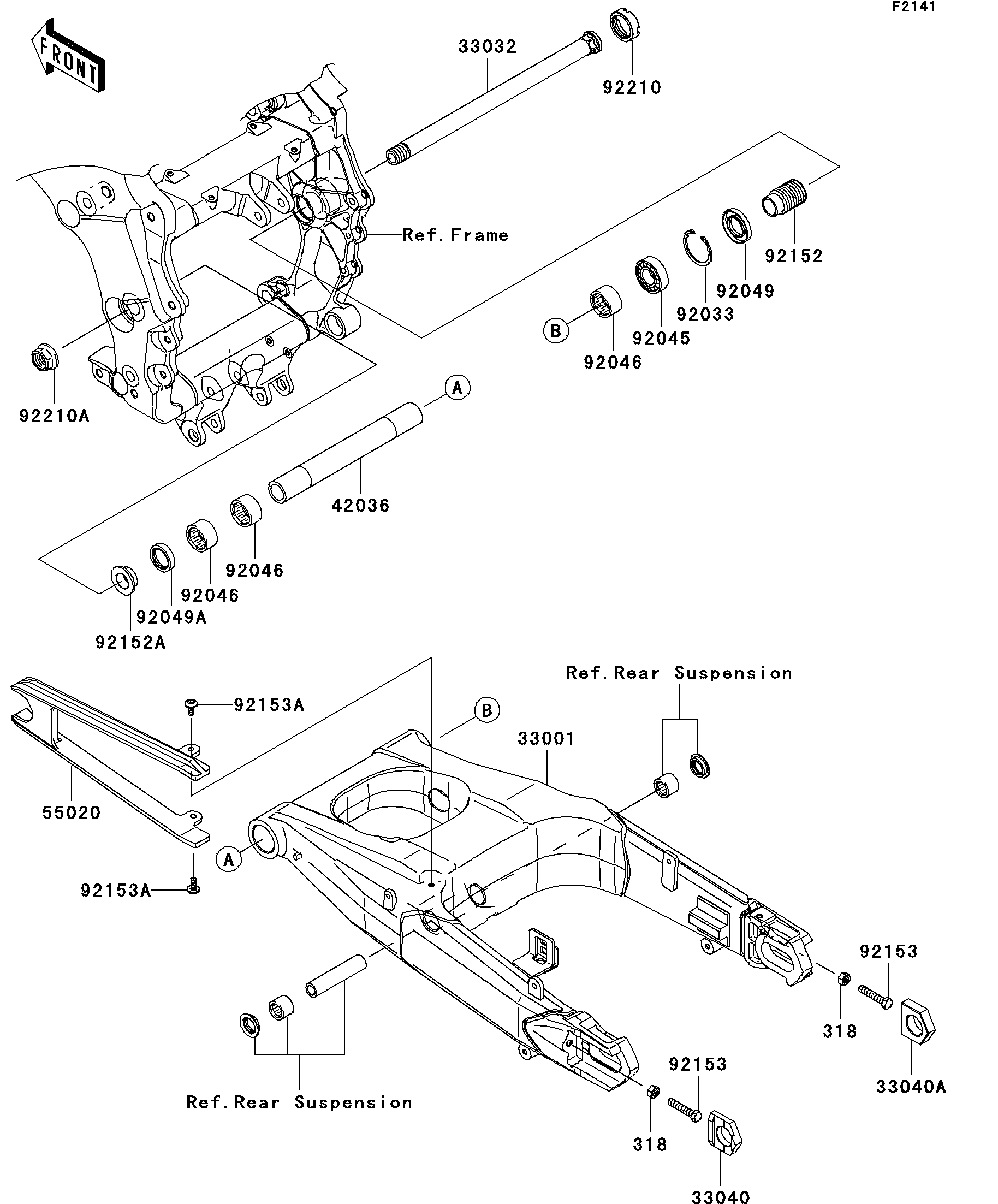

Parts Diagrams |
318
318
33001
33032
33040
33040A
42036
55020
92033
92045
92046
92046
92046
92049
92049A
92152
92152A
92153
92153
92153A
92153A
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-HEX-SMALL,8MM | 318 | 318BA0800 | 2 | ||
ARM-COMP-SWING,F.S.BLACK | 33001 | 33001-0073-11E | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-0013 | 1 | ||
ADJUSTER-CHAIN,LH | 33040 | 33040-0017 | 1 | ||
ADJUSTER-CHAIN,RH | 33040A | 33040-0018 | 1 | ||
SLEEVE,SWING ARM PIVOT,L=226 | 42036 | 42036-1341 | 1 | ||
GUARD,CHAIN | 55020 | 55020-0206 | 1 | ||
RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
BEARING-BALL,6004UL11 | 92045 | 92045-0017 | 1 | ||
BEARING-NEEDLE,7E-HVS 28X34X17 | 92046 | 92046-0008 | 3 | ||
SEAL-OIL,MHSA25 42 6 | 92049 | 92049-1314 | 1 | ||
SEAL-OIL,MHSA25X34X7 | 92049A | 92049-1352 | 1 | ||
COLLAR,SWING ARM,RH,L=47 | 92152 | 92152-0362 | 1 | ||
COLLAR,SWING ARM,LH,L=12.5 | 92152A | 92152-0363 | 1 | ||
BOLT,8X55 | 92153 | 92153-1407 | 2 | ||
BOLT,SOCKET,6X14 | 92153A | 92153-1612 | 2 | ||
NUT,30MM | 92210 | 92210-0134 | 1 | ||
NUT,FLANGED,20MM | 92210A | 92210-0320 | 1 |
NUT-HEX-SMALL,8MM | |
REF # | 318 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING,F.S.BLACK | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,LH | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,RH | |
REF # | 33040A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM PIVOT,L=226 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,CHAIN | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,42MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6004UL11 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,7E-HVS 28X34X17 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHSA25 42 6 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHSA25X34X7 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,SWING ARM,RH,L=47 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,SWING ARM,LH,L=12.5 | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X55 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X14 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,30MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,20MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
