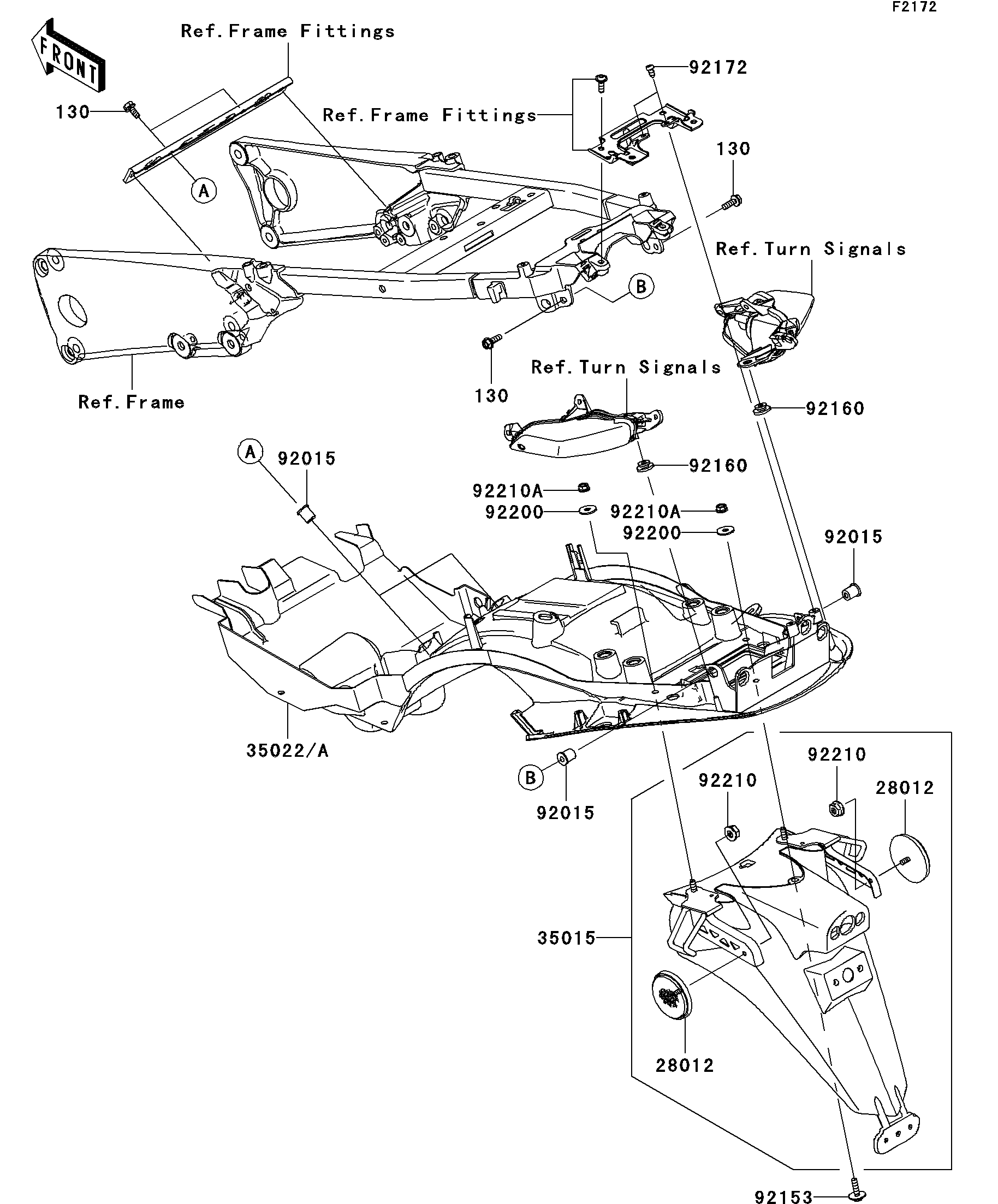

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X18 | 130 | 130BA0618 | 4 | ||
| REFLECTOR-REFLEX | 28012 | 28012-0002 | 2 | ||
| FLAP-COMP | 35015 | 35015-0016 | 1 | ||
| FENDER-COMP-REAR,FR | 35022 | 35022-0029 | 1 | CA | |
| FENDER-COMP-REAR,FR | 35022A | 35022-0030 | 1 | CN,US | |
| NUT | 92015 | 92015-1700 | 4 | ||
| BOLT,6X22 | 92153 | 92153-1463 | 1 | ||
| DAMPER | 92160 | 92160-1613 | 2 | ||
| SCREW,TAPPING,5X12 | 92172 | 92172-0239 | 2 | ||
| WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 3 | ||
| NUT,5X0.8 | 92210 | 92210-0242 | 2 | ||
| NUT,LOCK,FLANGED,6MM | 92210A | 92210-0303 | 3 |
