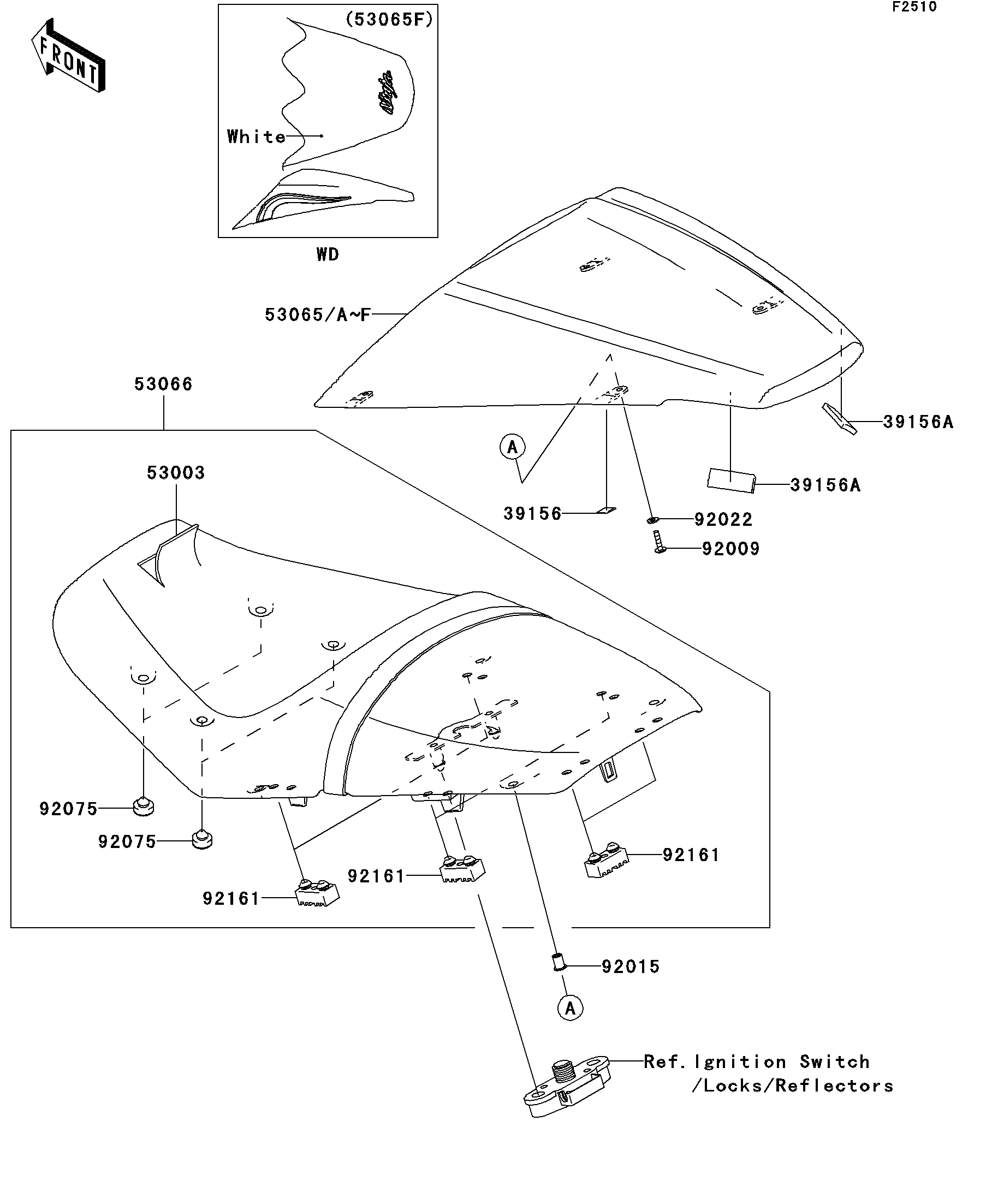

Parts Diagrams |
39156
39156A
39156A
53003
53065A
53065B
53065E
53066
92009
92015
92022
92075
92075
92161
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAD,SEAT COVER | 39156 | 39156-0176 | 4 | ||
| PAD,SEAT COVER | 39156A | 39156-0188 | 2 | ||
| LEATHER,SEAT,BLACK | 53003 | 53003-0103-MA | 1 | ||
| COVER SEAT,M.BLACK | 53065A | 53065-0012-17K | 1 | ||
| COVER SEAT,SILVER | 53065B | 53065-0012-17M | 1 | CN | |
| COVER SEAT,C.P.BLUE | 53065E | 53065-0012-723 | 1 | ||
| SEAT-ASSY,DUAL,W/BAND,BLACK | 53066 | 53066-0161-MA | 1 | ||
| SCREW,5X20,BLACK | 92009 | 92009-1656 | 4 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 4 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 4 | ||
| DAMPER | 92075 | 92075-1927 | 4 | ||
| DAMPER,SEAT | 92161 | 92161-0050 | 6 |
| PAD,SEAT COVER | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PAD,SEAT COVER | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEATHER,SEAT,BLACK | |
| REF # | 53003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,M.BLACK | |
| REF # | 53065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,SILVER | |
| REF # | 53065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COVER SEAT,C.P.BLUE | |
| REF # | 53065E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,DUAL,W/BAND,BLACK | |
| REF # | 53066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SEAT | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
