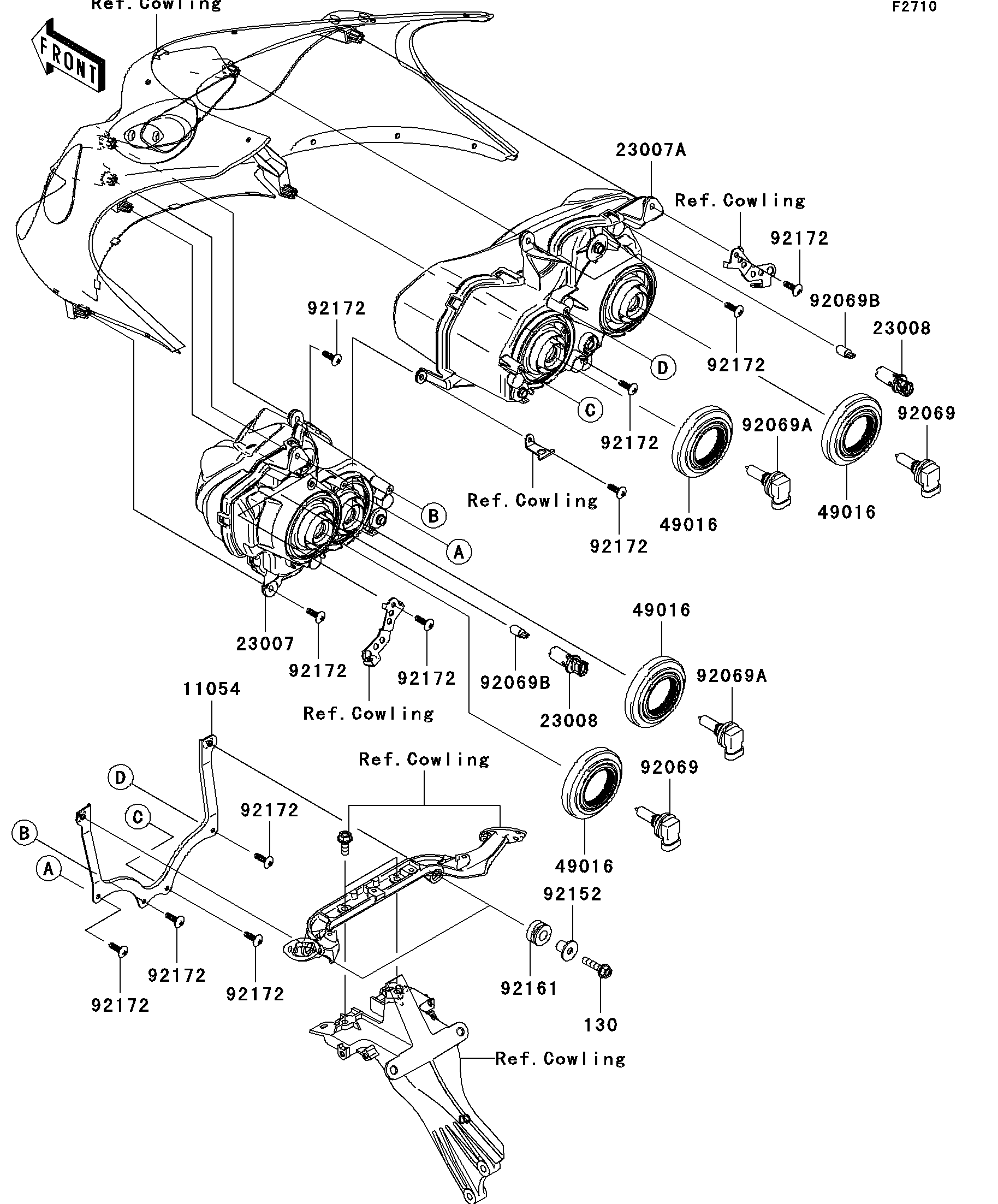

Parts Diagrams |
11054
130
23007
23007A
23008
23008
49016
49016
49016
49016
92069
92069
92069A
92069A
92069B
92069B
92152
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,HEAD LAMP | 11054 | 11054-0198 | 1 | ||
BOLT-FLANGED,6X25 | 130 | 130BA0625 | 2 | ||
LENS-COMP,HEAD LAMP,LH | 23007 | 23007-0066 | 1 | ||
LENS-COMP,HEAD LAMP,RH | 23007A | 23007-0067 | 1 | ||
SOCKET-ASSY,HEAD LAMP | 23008 | 23008-0053 | 2 | ||
COVER-SEAL,HEAD LAMP | 49016 | 49016-0023 | 4 | ||
BULB,12V 65W,H9 | 92069 | 92069-0007 | 2 | ||
BULB,12V 55W,H11 | 92069A | 92069-0014 | 2 | ||
BULB,12V 5W | 92069B | 92069-1016 | 2 | ||
COLLAR | 92152 | 92152-0332 | 2 | ||
DAMPER | 92161 | 92161-0036 | 2 | ||
SCREW,TAPPING,5X16 | 92172 | 92172-0238 | 11 |
