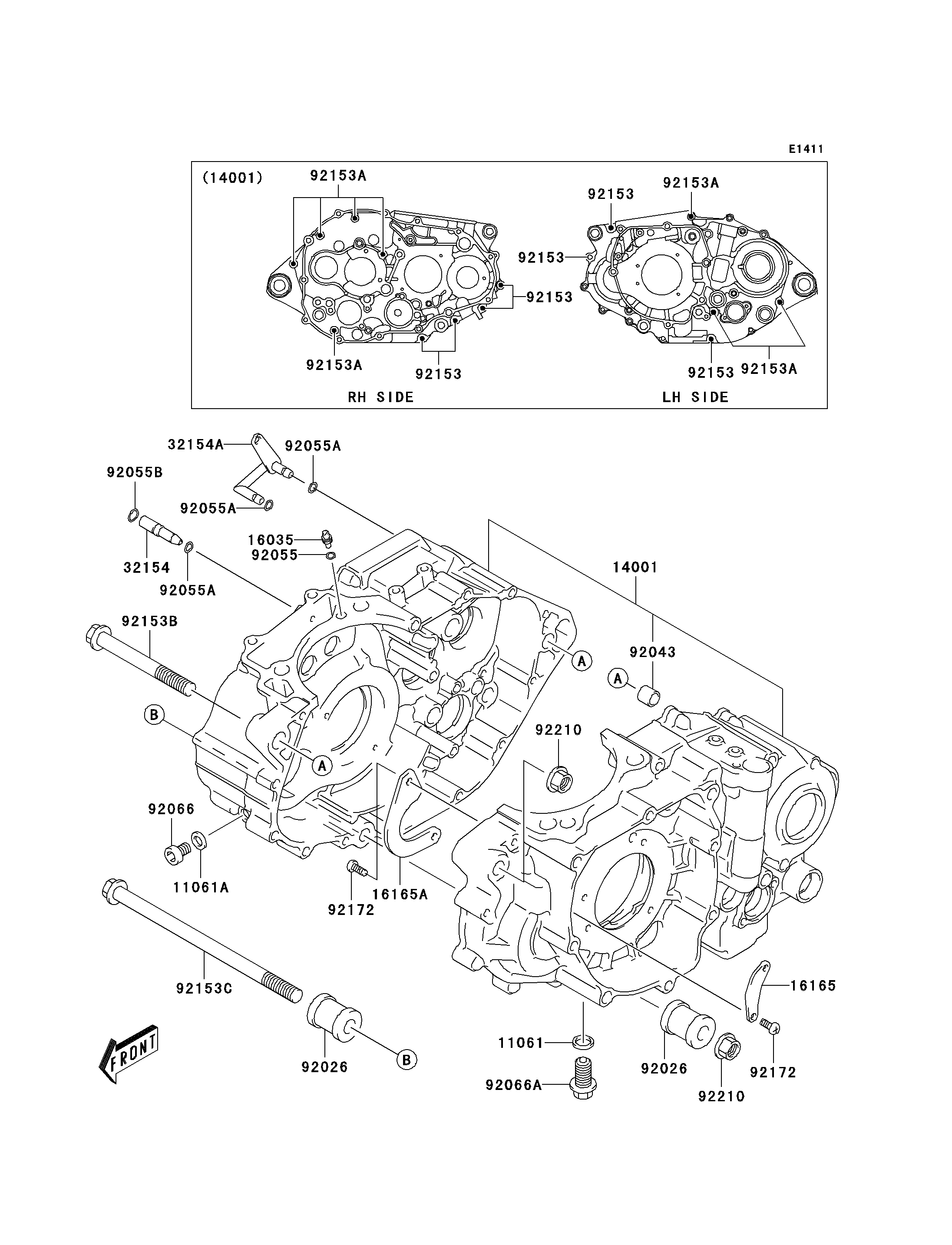

Parts Diagrams |
11061
11061A
14001
16035
16165
16165A
32154
32154A
92026
92026
92043
92055
92055A
92055A
92055A
92055B
92066
92066A
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153C
92172
92172
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,12X16X2 | 11061 | 11061-S005 | 1 | ||
| GASKET,10X14X3.6 | 11061A | 11061-S021 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-S012 | 1 | ||
| JET-AIR | 16035 | 16035-S003 | 1 | ||
| SEPARATOR,CRANKCASE OIL | 16165 | 16165-S007 | 1 | ||
| SEPARATOR,CRANKCASE OIL | 16165A | 16165-S008 | 1 | ||
| PIPE | 32154 | 32154-S005 | 1 | ||
| PIPE | 32154A | 32154-S006 | 1 | ||
| SPACER | 92026 | 92026-S107 | 2 | ||
| PIN | 92043 | 92043-S003 | 2 | ||
| RING-O,ID=4.0 | 92055 | 92055-S002 | 1 | ||
| RING-O,ID:4.8 | 92055A | 92055-S003 | 3 | ||
| RING-O,6.8X1.9 | 92055B | 92055-S053 | 1 | ||
| PLUG | 92066 | 92066-S009 | 1 | ||
| PLUG,OIL DRAIN | 92066A | 92066-S053 | 1 | ||
| BOLT | 92153 | 92153-S128 | 7 | ||
| BOLT | 92153A | 92153-S247 | 8 | ||
| BOLT,10X100 | 92153B | 92153-S269 | 1 | ||
| BOLT,10X180 | 92153C | 92153-S270 | 1 | ||
| SCREW | 92172 | 92172-S033 | 4 | ||
| NUT | 92210 | 92210-S015 | 2 |
| GASKET,12X16X2 | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,10X14X3.6 | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CRANKCASE | |
| REF # | 14001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JET-AIR | |
| REF # | 16035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEPARATOR,CRANKCASE OIL | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEPARATOR,CRANKCASE OIL | |
| REF # | 16165A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 32154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 32154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,ID=4.0 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ID:4.8 | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-O,6.8X1.9 | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL DRAIN | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X100 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X180 | |
| REF # | 92153C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
