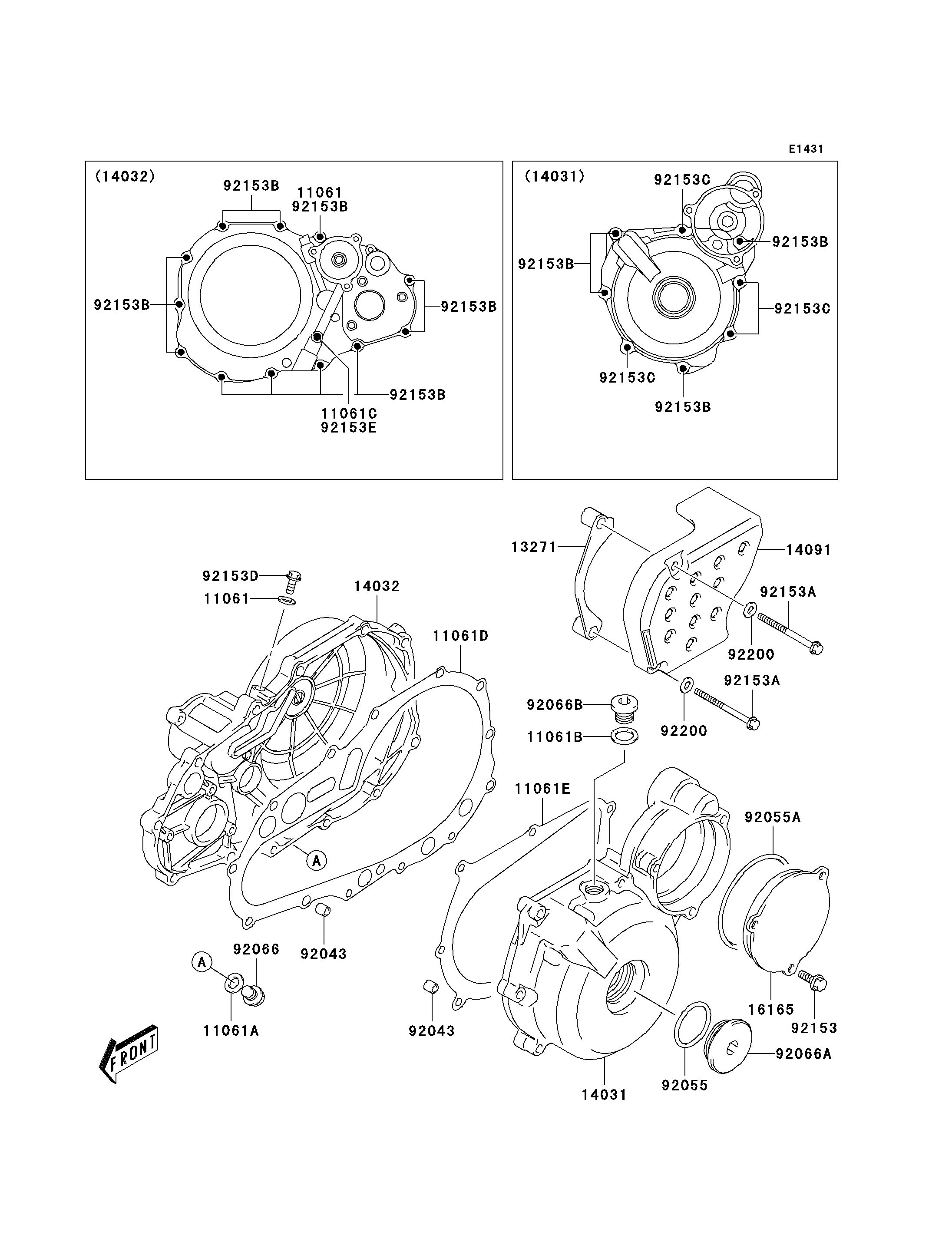

2006 KFX400 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061A
11061B
11061C
11061D
11061E
13271
14031
14032
14091
16165
92043
92043
92055
92055A
92066
92066A
92066B
92153
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153C
92153C
92153C
92153D
92153E
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,5.8X13X1.2 11061 11061-S001 2
GASKET,12X16X2 11061A 11061-S005 1
GASKET,13.8X18.8X0.4 11061B 11061-S006 1
GASKET,8.2X14X1 11061C 11061-S020 1
GASKET,CLUTCH COVER 11061D 11061-S071 1
GASKET,MAGNETO COVER 11061E 11061-S072 1
PLATE 13271 13271-S048 1
COVER-GENERATOR 14031 14031-S010 1
COVER-CLUTCH 14032 14032-S014 1
COVER 14091 14091-S080 1
SEPARATOR,STARTER IDLE GEAR 16165 16165-S010 1
PIN 92043 92043-S001 4
RING-O,32.7X3.1 92055 92055-S056 1
RING-O,69.6X2.6 92055A 92055-S057 1
PLUG 92066 92066-S001 1
PLUG,CRANKSHAFT HOLE,W.SILVER 92066A 92066-S033-515 1
PLUG 92066B 92066-S052 1
BOLT 92153 92153-S001 3
BOLT 92153A 92153-S007 2
BOLT 92153B 92153-S062 16
BOLT 92153C 92153-S128 4
BOLT 92153D 92153-S144 1
BOLT,8X12 92153E 92153-S466 1
WASHER,SPROCKET COVER 92200 92200-S132 2
