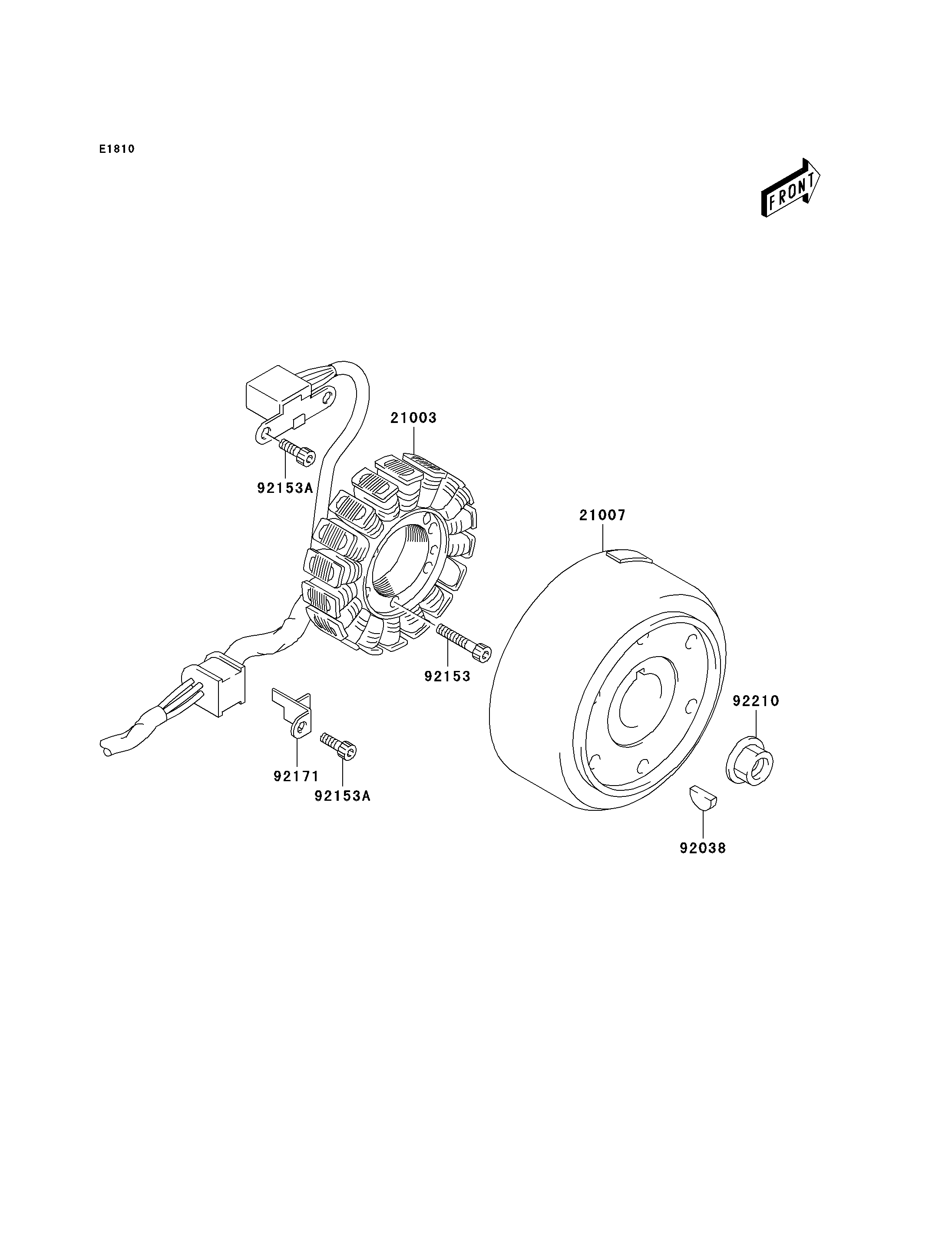

21003
21007
92038
92153
92153A
92153A
92171
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR,MAGNETO 21003 21003-S006 1
ROTOR,MAGNETO 21007 21007-S007 1
KEY 92038 92038-S002 1
BOLT 92153 92153-S081 3
BOLT 92153A 92153-S256 3
CLAMP,MAGNETO LEAD 92171 92171-S099 1
NUT,MAGNETO ROTOR 92210 92210-S107 1
