Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

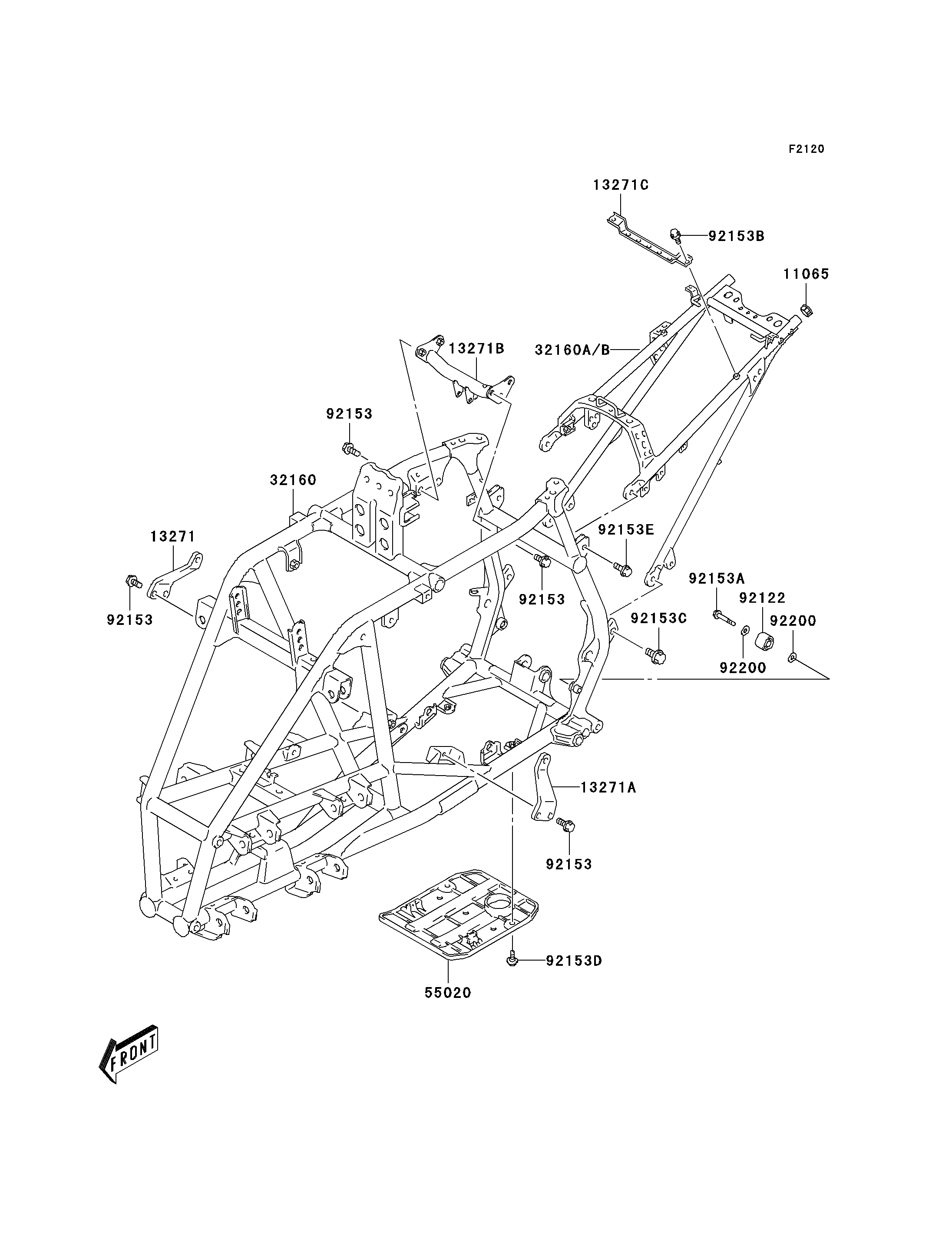

Parts Diagrams |
11065
13271
13271A
13271B
13271C
32160
55020
92122
92153
92153
92153
92153
92153A
92153B
92153C
92153D
92153E
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-S065 | 2 | ||
| PLATE,MOUNT ENGINE,RH | 13271 | 13271-S050 | 1 | ||
| PLATE,MOUNT ENGINE,LH | 13271A | 13271-S051 | 1 | ||
| PLATE,MOUNT ENGINE,UPP | 13271B | 13271-S083 | 1 | ||
| PLATE,BATTERY | 13271C | 13271-S084 | 1 | ||
| FRAME-COMP,FR,P.SILVER | 32160 | 32160-S027-909 | 1 | ||
| GUARD,ENGINE | 55020 | 55020-S015 | 1 | ||
| ROLLER | 92122 | 92122-S008 | 1 | ||
| BOLT,BRUSH GUARD | 92153 | 92153-S220 | 8 | ||
| BOLT,CHAIN ROLLER | 92153A | 92153-S264 | 1 | ||
| BOLT,6X16 | 92153B | 92153-S383 | 2 | ||
| BOLT | 92153C | 92153-S397 | 2 | ||
| BOLT | 92153D | 92153-S439 | 2 | ||
| BOLT | 92153E | 92153-S464 | 2 | ||
| WASHER | 92200 | 92200-S111 | 2 | ||
| FRAME-COMP,RR,S.SILVER | 32160A | 32160-S028-514 | 1 | US | |
| FRAME-COMP,RR,S.SILVER | 32160B | 32160-S029-514 | 1 | CN |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,MOUNT ENGINE,RH | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,MOUNT ENGINE,LH | |
| REF # | 13271A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,MOUNT ENGINE,UPP | |
| REF # | 13271B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,BATTERY | |
| REF # | 13271C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,FR,P.SILVER | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,BRUSH GUARD | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,CHAIN ROLLER | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,RR,S.SILVER | |
| REF # | 32160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| FRAME-COMP,RR,S.SILVER | |
| REF # | 32160B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
