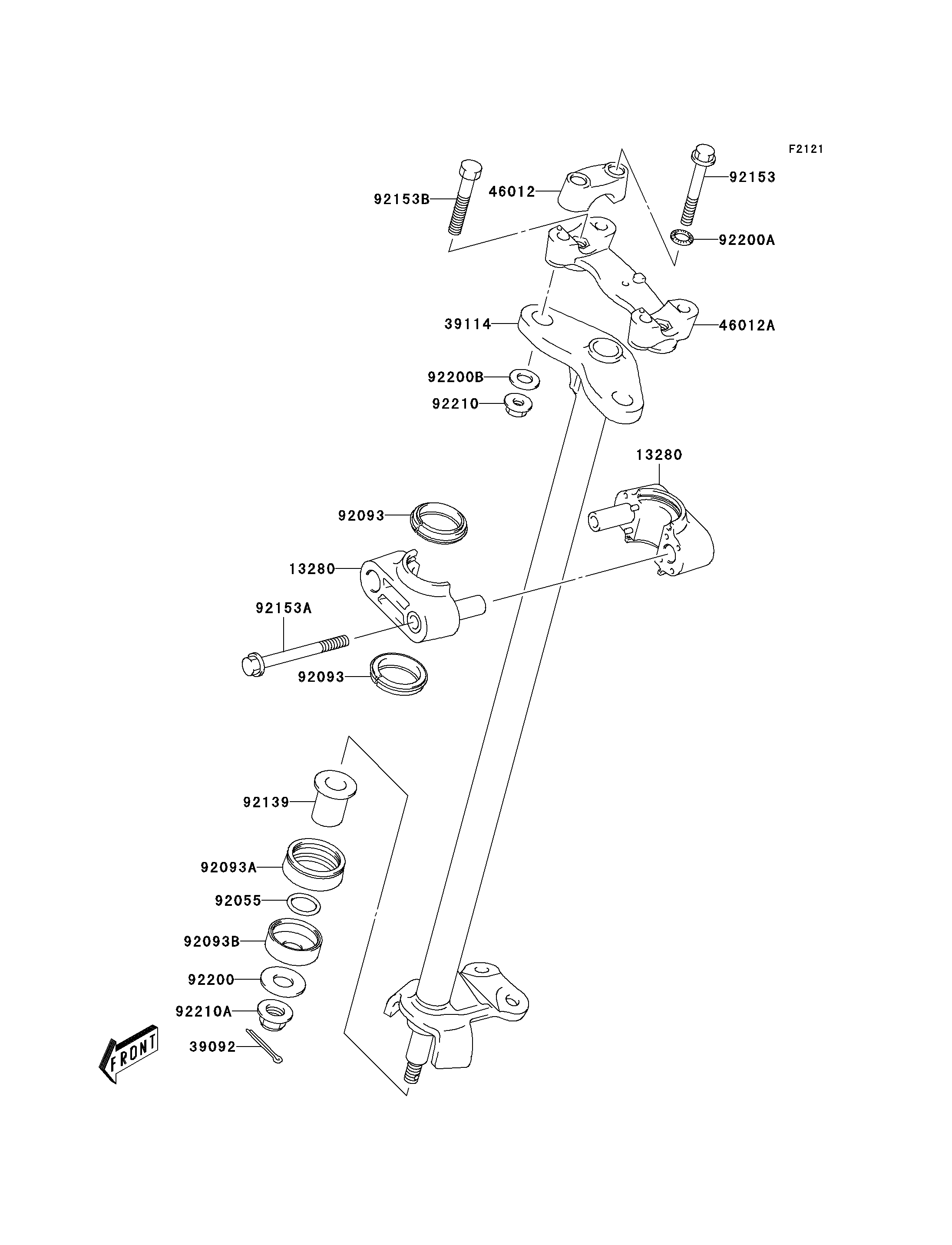

2006 KFX400 - Steering Shaft

DOWNLOAD PDF
SELECT A NEW PART
13280
13280
39092
39114
46012
46012A
92055
92093
92093
92093A
92093B
92139
92153
92153A
92153B
92200
92200A
92200B
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-S026 2
PIN-HAIR,COTTER 39092 39092-S005 1
SHAFT-COMP-STRG 39114 39114-S005 1
HOLDER-HANDLE,BLACK 46012 46012-S005-504 2
HOLDER-HANDLE,BLACK 46012A 46012-S011-504 1
RING-O,D=3.1 92055 92055-S006 1
SEAL 92093 92093-S038 2
SEAL 92093A 92093-S052 1
SEAL 92093B 92093-S053 1
BUSHING,STEERING SHAFT 92139 92139-S030 1
BOLT 92153 92153-S070 4
BOLT,STEERING SHAFT HOLDER 92153A 92153-S250 2
BOLT,10X35 92153B 92153-S324 2
WASHER,STEERING SHAFT 92200 92200-S137 1
WASHER 92200A 92200-S233 4
WASHER,10.5X25X3.2 92200B 92200-S280 2
NUT 92210 92210-S030 2
NUT 92210A 92210-S032 1
