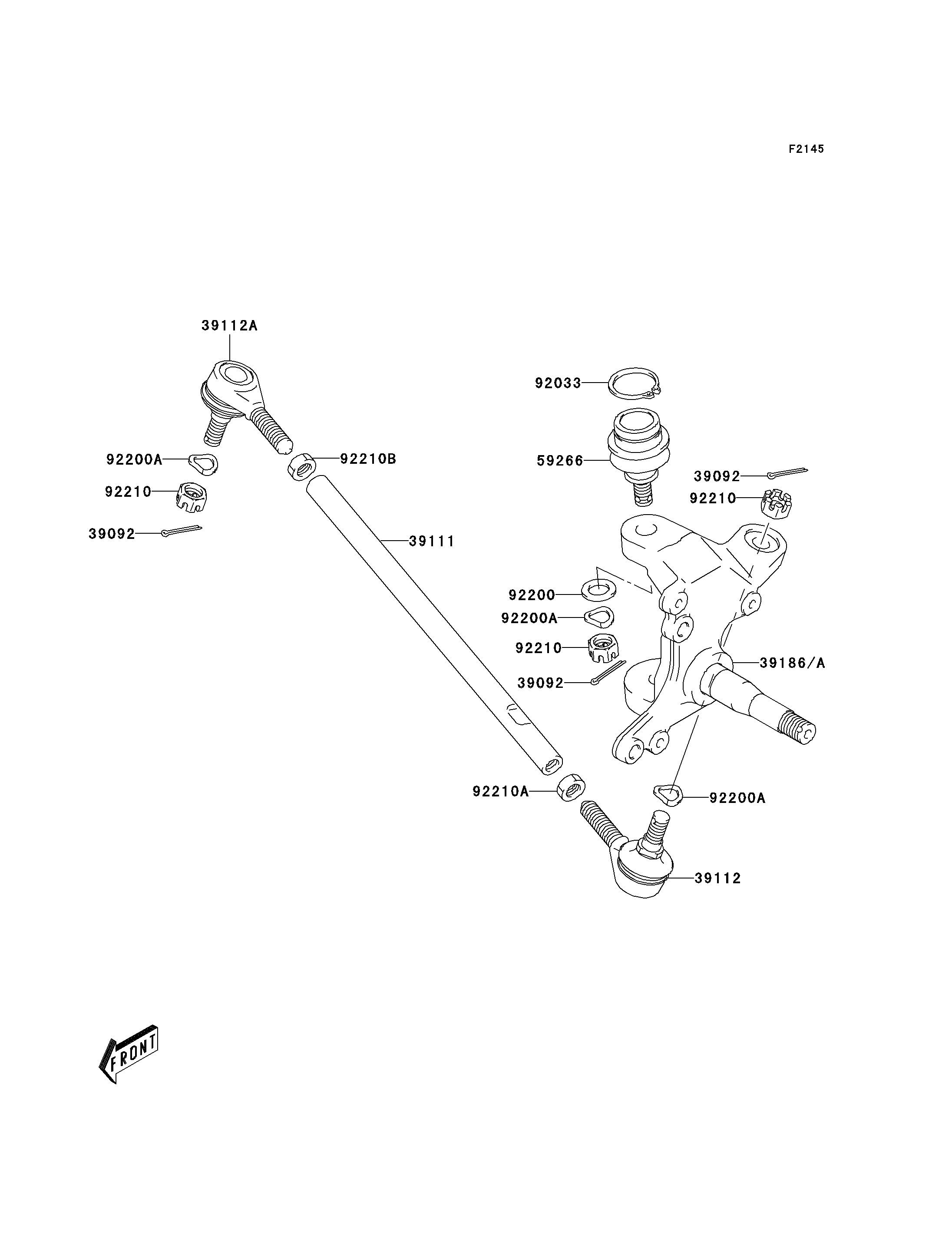

Parts Diagrams |
39092
39092
39092
39111
39112
39112A
39186
39186A
59266
92033
92200
92200A
92200A
92200A
92210
92210
92210
92210A
92210B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-HAIR,COTTER | 39092 | 39092-S005 | 8 | ||
| ROD-TIE | 39111 | 39111-S004 | 2 | ||
| RODEND-TIE,RH | 39112 | 39112-S009 | 2 | ||
| RODEND-TIE,LH | 39112A | 39112-S010 | 2 | ||
| KNUCKLE,RH | 39186 | 39186-S011 | 1 | ||
| KNUCKLE,LH | 39186A | 39186-S012 | 1 | ||
| JOINT-BALL | 59266 | 59266-S002 | 2 | ||
| RING-SNAP | 92033 | 92033-S038 | 2 | ||
| WASHER,MAGNETO | 92200 | 92200-S092 | 4 | ||
| WASHER,STEERING SHAFT,LWR | 92200A | 92200-S096 | 8 | ||
| NUT | 92210 | 92210-S052 | 8 | ||
| NUT,TIE-ROD | 92210A | 92210-S072 | 2 | ||
| NUT,TIE-ROD | 92210B | 92210-S073 | 2 |
| PIN-HAIR,COTTER | |
| REF # | 39092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| ROD-TIE | |
| REF # | 39111 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RODEND-TIE,RH | |
| REF # | 39112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RODEND-TIE,LH | |
| REF # | 39112A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KNUCKLE,RH | |
| REF # | 39186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KNUCKLE,LH | |
| REF # | 39186A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-BALL | |
| REF # | 59266 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,MAGNETO | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,STEERING SHAFT,LWR | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,TIE-ROD | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,TIE-ROD | |
| REF # | 92210B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
