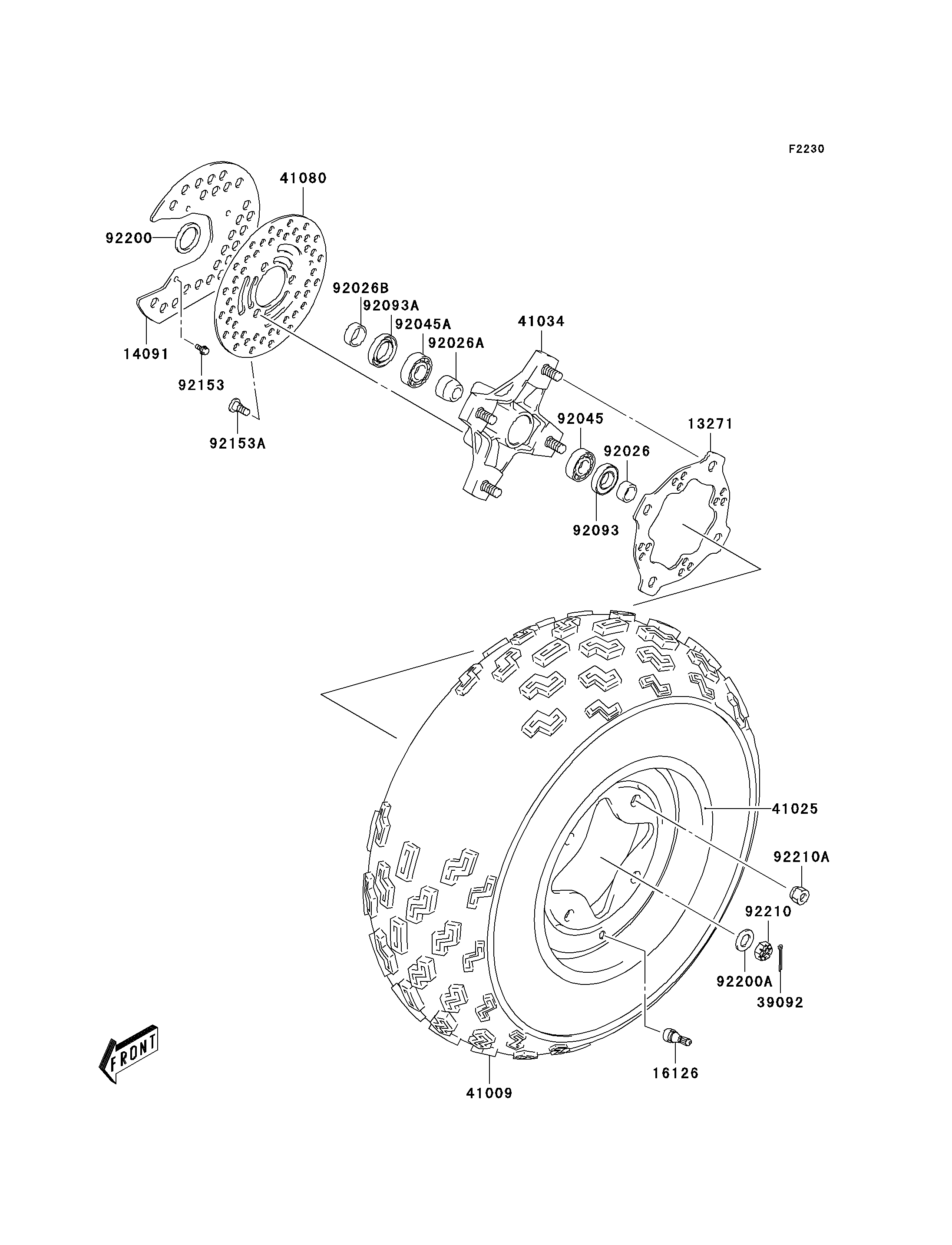

2006 KFX400 - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
13271
14091
16126
39092
41009
41025
41034
41080
92026
92026A
92026B
92045
92045A
92093
92093A
92153
92153A
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13271 13271-S053 2
COVER,FRONT DISC 14091 14091-S185 2
VALVE,WHEEL RIM,TR412 16126 16126-S002 2
PIN-HAIR 39092 39092-S007 2
TIRE,FR 41009 41009-S012 2
RIM,FRONT WHEEL,10X5.5AT 41025 41025-S020 2
DRUM-ASSY,FR,BLACK 41034 41034-S005-503 2
DISC,FRONT BRAKE 41080 41080-S005 2
SPACER 92026 92026-S090 2
SPACER 92026A 92026-S097 2
SPACER 92026B 92026-S165 2
BEARING-BALL,FRONT HUB 92045 92045-S036 2
BEARING-BALL,FRONT HUB 92045A 92045-S048 2
SEAL 92093 92093-S033 2
SEAL 92093A 92093-S034 2
BOLT,FRONT DISC COVER 92153 92153-S258 6
BOLT 92153A 92153-S283 6
WASHER,DRIVEN GEAR 92200 92200-S090 2
WASHER,FRONT AXLE 92200A 92200-S099 2
NUT,FRONT AXLE 92210 92210-S075 2
NUT 92210A 92210-S179 8
