Parts Diagrams |
14091
14091A
14091C
35004
56014
56066B
56066E
56066F
92039
92039A
92039A
92153
92153
92161
92172
92172A
92172B
92200
92200
92210
92210A

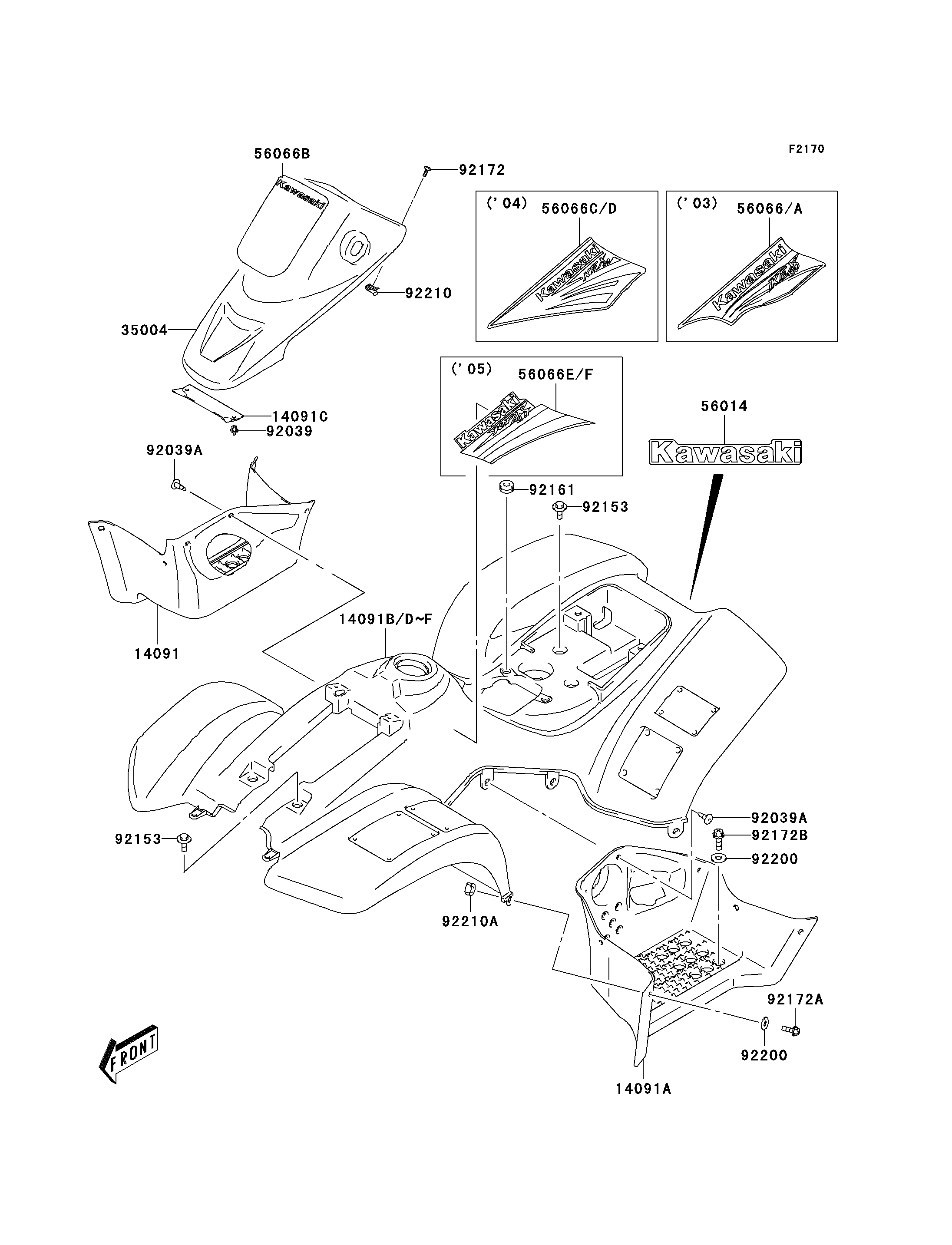

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,FRAME,RH,BLACK | 14091 | 14091-S067-504 | 1 | ||
COVER,FRAME,LH,BLACK | 14091A | 14091-S068-504 | 1 | ||
COVER,FRONT FENDER,BLACK | 14091C | 14091-S070-504 | 1 | ||
FENDER-FRONT,BLACK | 35004 | 35004-S007-504 | 1 | ||
EMBLEM,BLACK/GREEN | 56014 | 56014-S012-554 | 1 | ||
PATTERN,WHITE/BLACK | 56066B | 56066-S003-558 | 1 | ||
PATTERN,RH,WHT/BLK/GLD/GRN | 56066E | 56066-S033-587 | 1 | ||
PATTERN,LH,WHT/BLK/GLD/GRN | 56066F | 56066-S034-587 | 1 | ||
RIVET,O.BLACK | 92039 | 92039-S003-505 | 2 | ||
RIVET,BLACK | 92039A | 92039-S005-506 | 10 | ||
BOLT | 92153 | 92153-S196 | 3 | ||
DAMPER,FRAME COVER | 92161 | 92161-S069 | 2 | ||
SCREW | 92172 | 92172-S018 | 2 | ||
SCREW | 92172A | 92172-S019 | 4 | ||
SCREW | 92172B | 92172-S022 | 4 | ||
WASHER,6.5X16X1.2 | 92200 | 92200-S005 | 12 | ||
NUT,COWL | 92210 | 92210-S023 | 2 | ||
NUT | 92210A | 92210-S054 | 4 | ||
COVER,FRAME CENTER,L.GREEN | 14091E | 14091-S159-535 | 1 | US | |
COVER,FRAME CENTER,L.GREEN | 14091F | 14091-S160-535 | 1 | CN |
