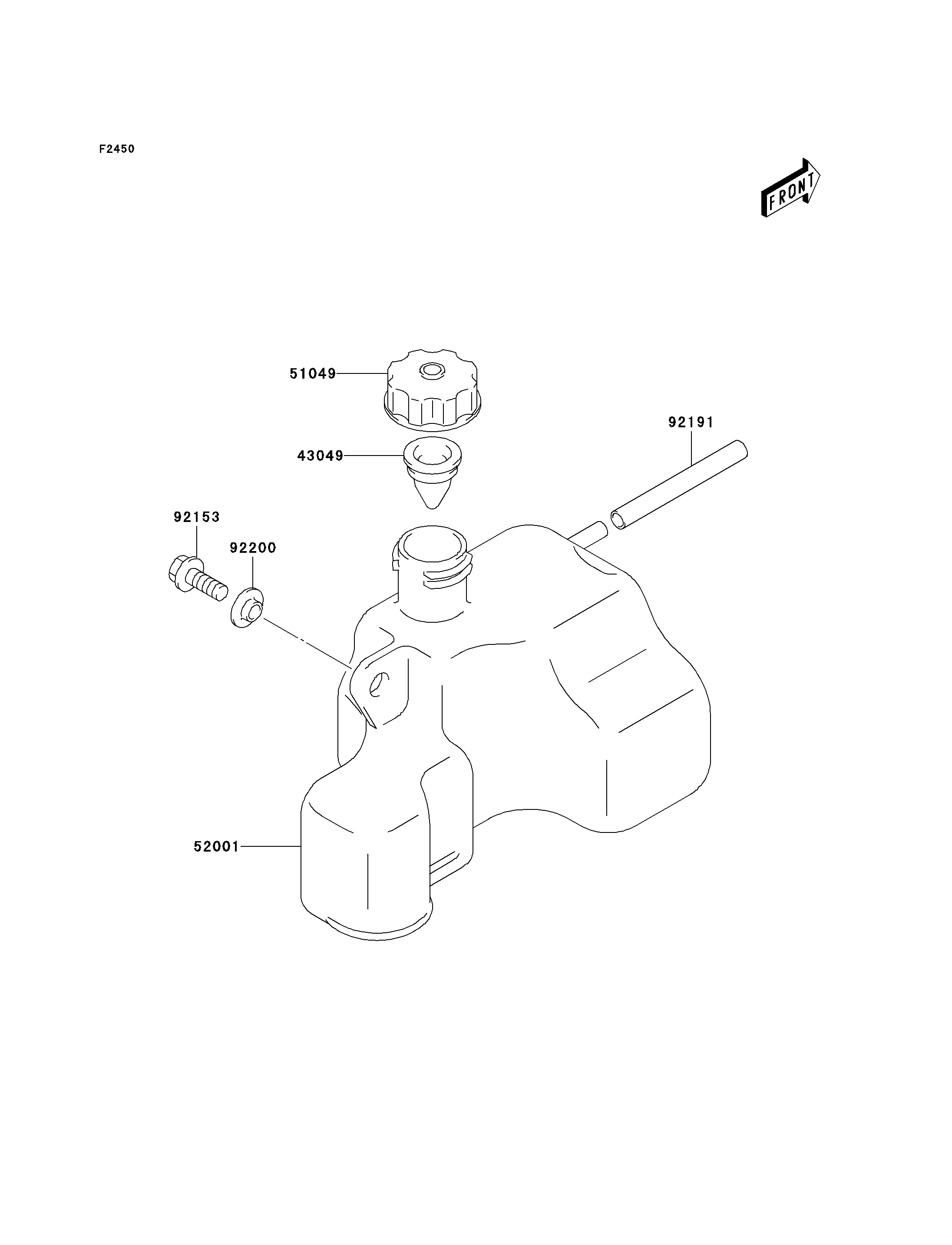

43049
51049
52001
92153
92191
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PACKING,OIL TANK CAP 43049 43049-S005 1
CAP-TANK 51049 51049-S006 1
TANK-OIL 52001 52001-S001 1
BOLT 92153 92153-S126 1
TUBE,FUEL TANK BREATHER 92191 92191-S028 1
WASHER 92200 92200-S074 1
