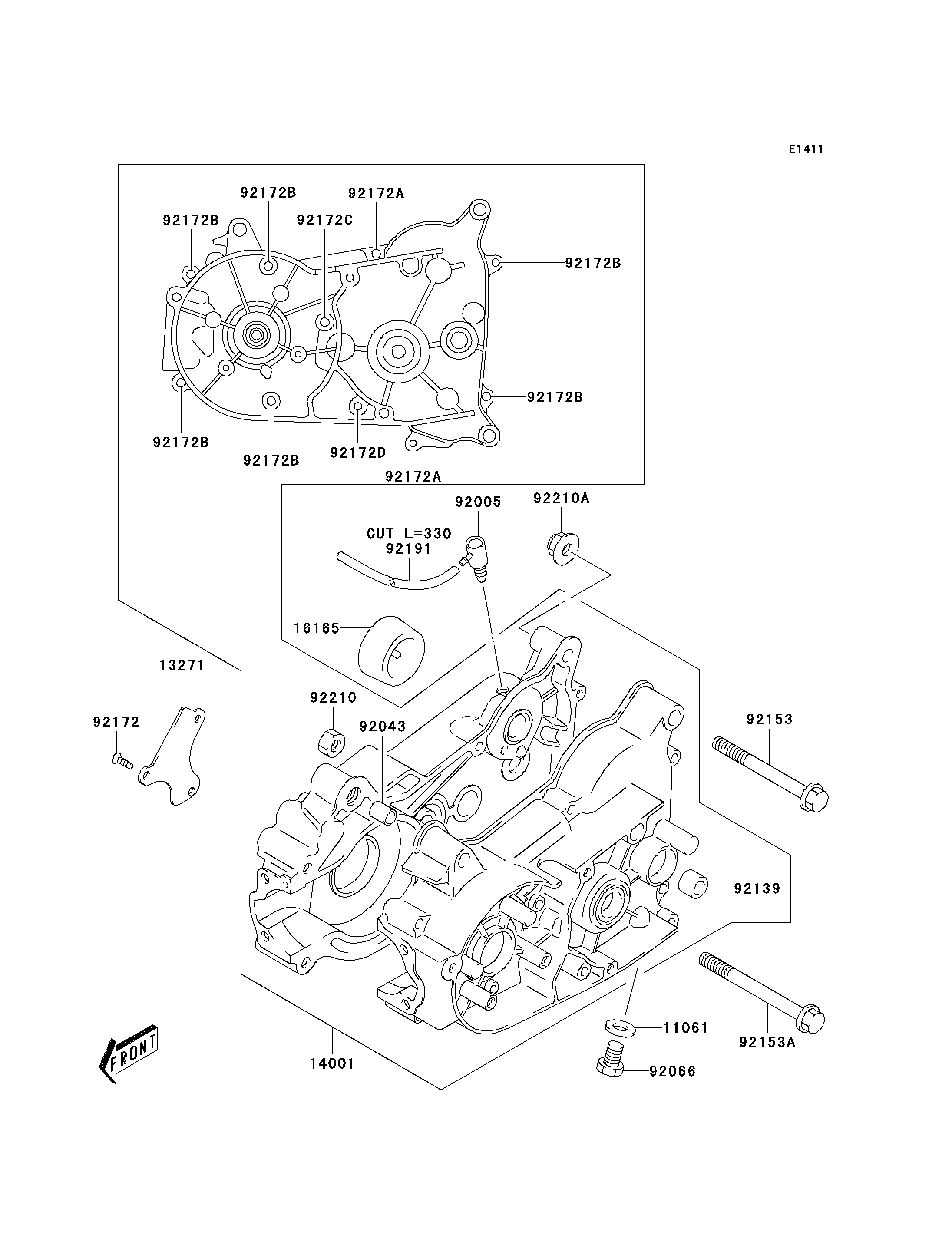

2006 KFX50 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
13271
14001
16165
92005
92043
92066
92139
92153
92153A
92172
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
92172C
92172D
92191
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14X3.6 11061 11061-S021 1
PLATE,OIL RESERVOIR 13271 13271-S025 1
SET-CRANKCASE 14001 14001-S010 1
SEPARATOR,BREATHER 16165 16165-S006 1
FITTING,BREATHER 92005 92005-S003 1
PIN,CRANKCASE 92043 92043-S024 2
PLUG,OIL DRAIN 92066 92066-S020 1
BUSHING,COUNTER SHAFT 92139 92139-S009 1
BOLT,L=70 92153 92153-S190 2
BOLT,L=75 92153A 92153-S191 1
SCREW 92172 92172-S098 3
SCREW 92172A 92172-S117 2
SCREW 92172B 92172-S118 6
SCREW,CRANKCASE 92172C 92172-S119 1
SCREW,CRANKCASE 92172D 92172-S120 1
TUBE,BREATHER 92191 92191-S039 1
NUT 92210 92210-S001 1
NUT 92210A 92210-S029 3
