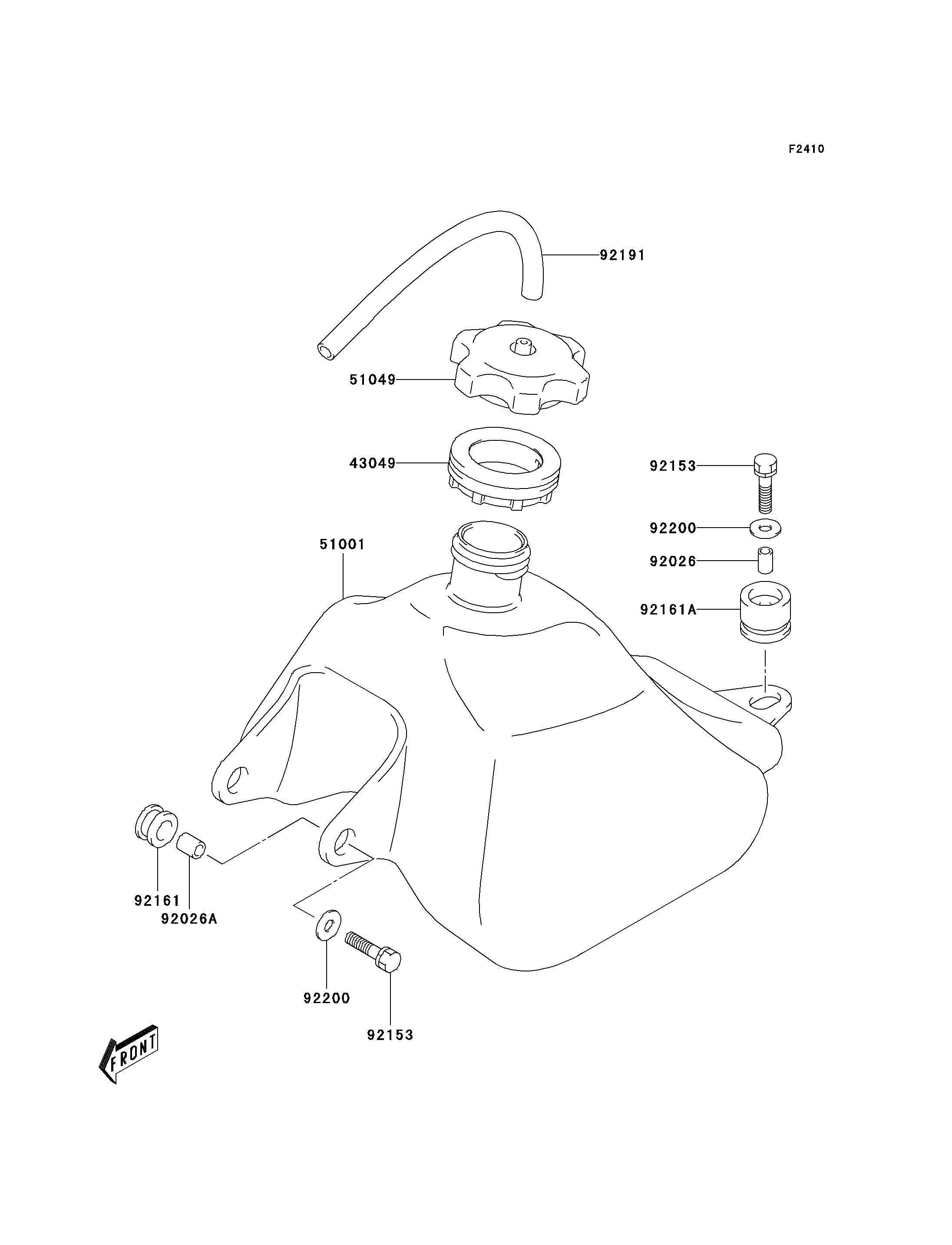

43049
51001
51049
92026
92026A
92153
92153
92161
92161A
92191
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PACKING,FUEL TANK INLET 43049 43049-S006 1
TANK-COMP-FUEL 51001 51001-S005 1
CAP-TANK 51049 51049-S005 1
SPACER,6.5X9X12.5 92026 92026-S017 1
SPACER,FUEL TANK 92026A 92026-S058 2
BOLT,FUEL TANK 92153 92153-S195 3
DAMPER,FUEL TANK 92161 92161-S067 2
DAMPER,FUEL TANK 92161A 92161-S068 1
TUBE,FUEL TANK BREATHER 92191 92191-S028 1
WASHER,6.5X18X1 92200 92200-S004 3
