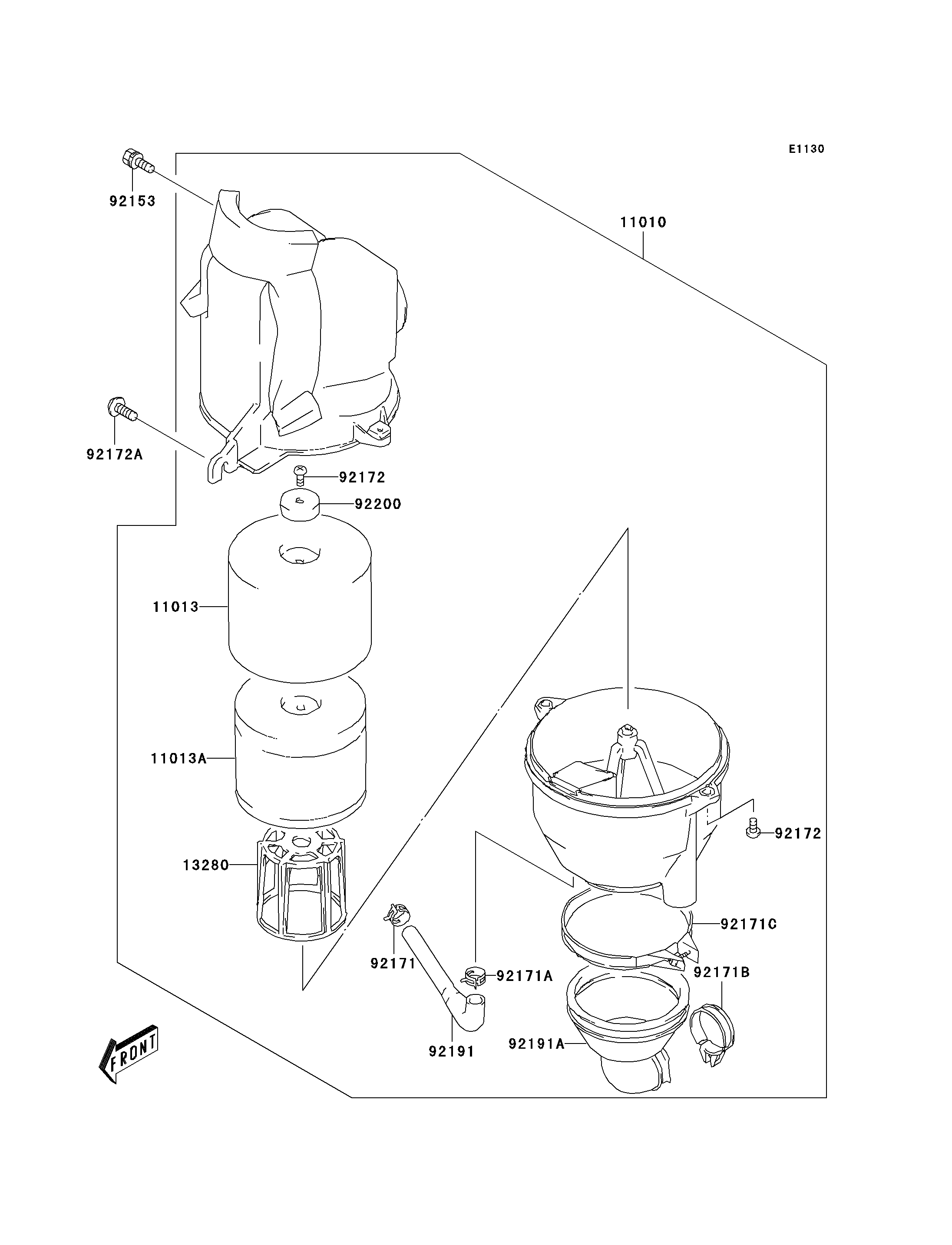

11010
11013
11013A
13280
92153
92171
92171A
92171B
92171C
92172
92172
92172A
92191
92191A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-S005 1
ELEMENT-AIR FILTER,SUB 11013 11013-S007 1
ELEMENT-AIR FILTER 11013A 11013-S008 1
HOLDER,FILTER 13280 13280-S018 1
BOLT 92153 92153-S073 1
CLAMP 92171 92171-S005 1
CLAMP 92171A 92171-S069 1
CLAMP 92171B 92171-S070 1
CLAMP 92171C 92171-S071 1
SCREW 92172 92172-S016 3
SCREW,AIR CLEANER 92172A 92172-S161 1
TUBE,DRAIN 92191 92191-S046 1
TUBE,OUTLET 92191A 92191-S047 1
WASHER 92200 92200-S076 1
