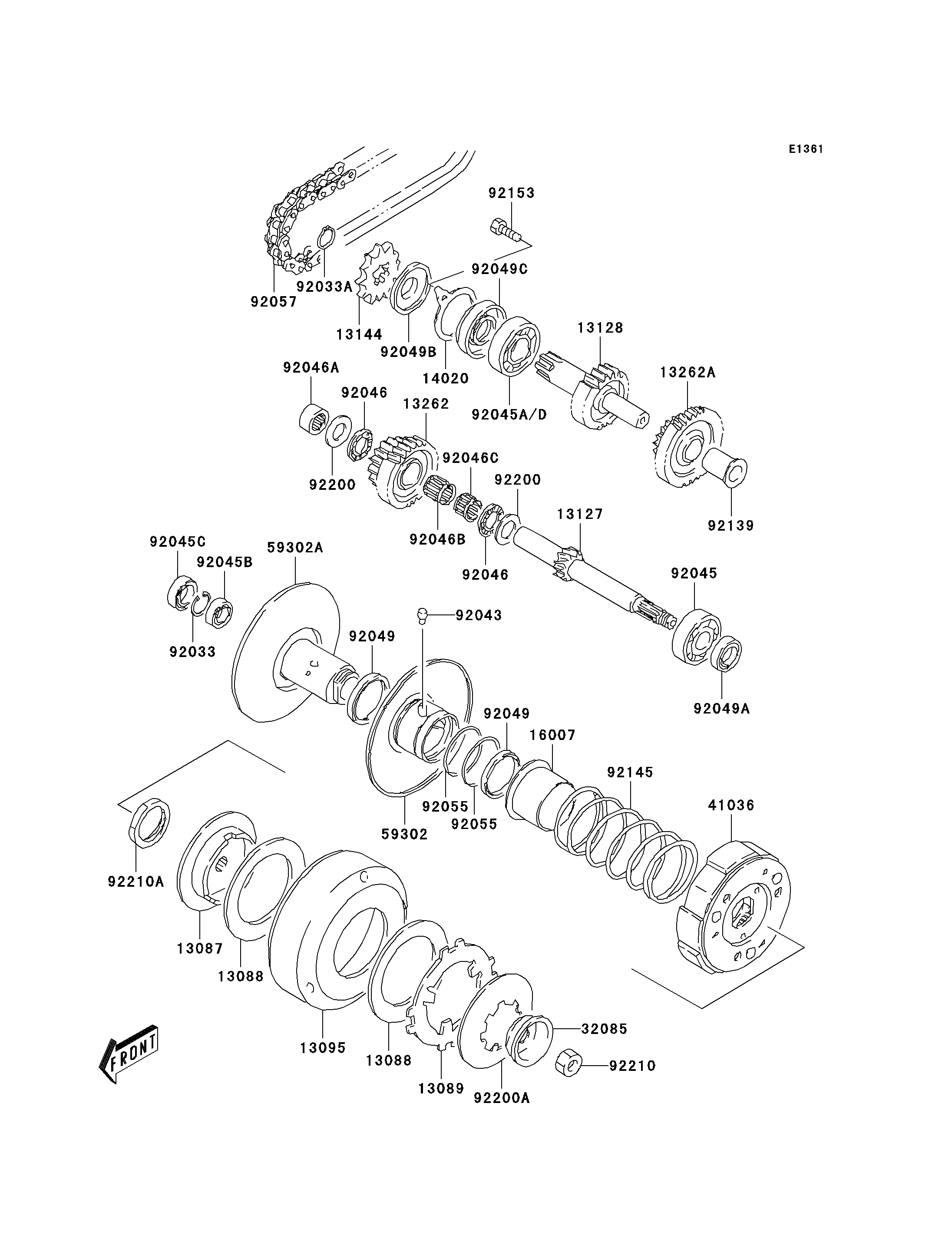

Parts Diagrams |
13087
13088
13088
13089
13095
13127
13128
13144
13262
13262A
14020
16007
32085
41036
59302
59302A
92033
92033A
92043
92045
92045B
92045C
92045D
92046
92046
92046A
92046B
92046C
92049
92049
92049A
92049B
92049C
92055
92055
92057
92139
92145
92153
92200
92200
92200A
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HUB-CLUTCH | 13087 | 13087-S002 | 1 | ||
PLATE-FRICTION,LIMITER CLUTCH | 13088 | 13088-S002 | 2 | ||
PLATE-CLUTCH,LIMITER CLUTCH | 13089 | 13089-S002 | 1 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-S005 | 1 | ||
SHAFT-TRANSMISSION INPUT | 13127 | 13127-S005 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-S007 | 1 | ||
SPROCKET-OUTPUT,10T-520 | 13144 | 13144-S004 | 1 | ||
GEAR-TRANSMISSION SPUR,FINAL | 13262 | 13262-S002 | 1 | ||
GEAR-TRANSMISSION SPUR,IDLER | 13262A | 13262-S003 | 1 | ||
RETAINER,DRIVE SHAFT | 14020 | 14020-S005 | 1 | ||
SEAT-SPRING,MOVABLE DRIVEN | 16007 | 16007-S004 | 1 | ||
STOPPER,LIMITER CLUTCH | 32085 | 32085-S006 | 1 | ||
HUB-ASSY | 41036 | 41036-S005 | 1 | ||
SHEAVE-COMP,MOVABLE DRIVEN | 59302 | 59302-S009 | 1 | ||
SHEAVE-COMP,FIXED DRIVEN | 59302A | 59302-S010 | 1 | ||
RING-SNAP | 92033 | 92033-S004 | 1 | ||
RING-SNAP | 92033A | 92033-S020 | 1 | ||
PIN,MOVABLE DRIVEN | 92043 | 92043-S030 | 3 | ||
BEARING-BALL,15X42X13 | 92045 | 92045-S015 | 1 | ||
BEARING-BALL,FIXED DRIVEN | 92045B | 92045-S041 | 1 | ||
BEARING-BALL,FIXED DRIVEN | 92045C | 92045-S042 | 1 | ||
BEARING-BALL,20X47X14 | 92045D | 92045-S045 | 1 | ||
BEARING-NEEDLE,15X28X2 | 92046 | 92046-S006 | 2 | ||
BEARING-NEEDLE,SHAFT | 92046A | 92046-S011 | 1 | ||
BEARING-NEEDLE,FINAL DRIVE | 92046B | 92046-S012 | 1 | ||
BEARING-NEEDLE,FINAL DRIVE | 92046C | 92046-S013 | 1 | ||
SEAL-OIL,MOVABLE DRIVEN | 92049 | 92049-S036 | 2 | ||
SEAL-OIL | 92049A | 92049-S037 | 1 | ||
SEAL-OIL,DRIVE SHAFT | 92049B | 92049-S039 | 1 | ||
SEAL-OIL,DRIVE SHAFT | 92049C | 92049-S045 | 1 | ||
RING-O,D:1.5,ID:39.7 | 92055 | 92055-S020 | 2 | ||
CHAIN,DRIVE,36LE | 92057 | 92057-S009 | 1 | ||
BUSHING,IDLER DRIVE | 92139 | 92139-S017 | 1 | ||
SPRING,MOVABLE DRIVEN FACE | 92145 | 92145-S087 | 1 | ||
BOLT | 92153 | 92153-S126 | 2 | ||
WASHER,FINAL DRIVE GEAR | 92200 | 92200-S114 | 2 | ||
WASHER | 92200A | 92200-S115 | 1 | ||
NUT,CLUTCH HOUSING | 92210 | 92210-S083 | 1 | ||
NUT,SHOE CLUTCH | 92210A | 92210-S084 | 1 |
