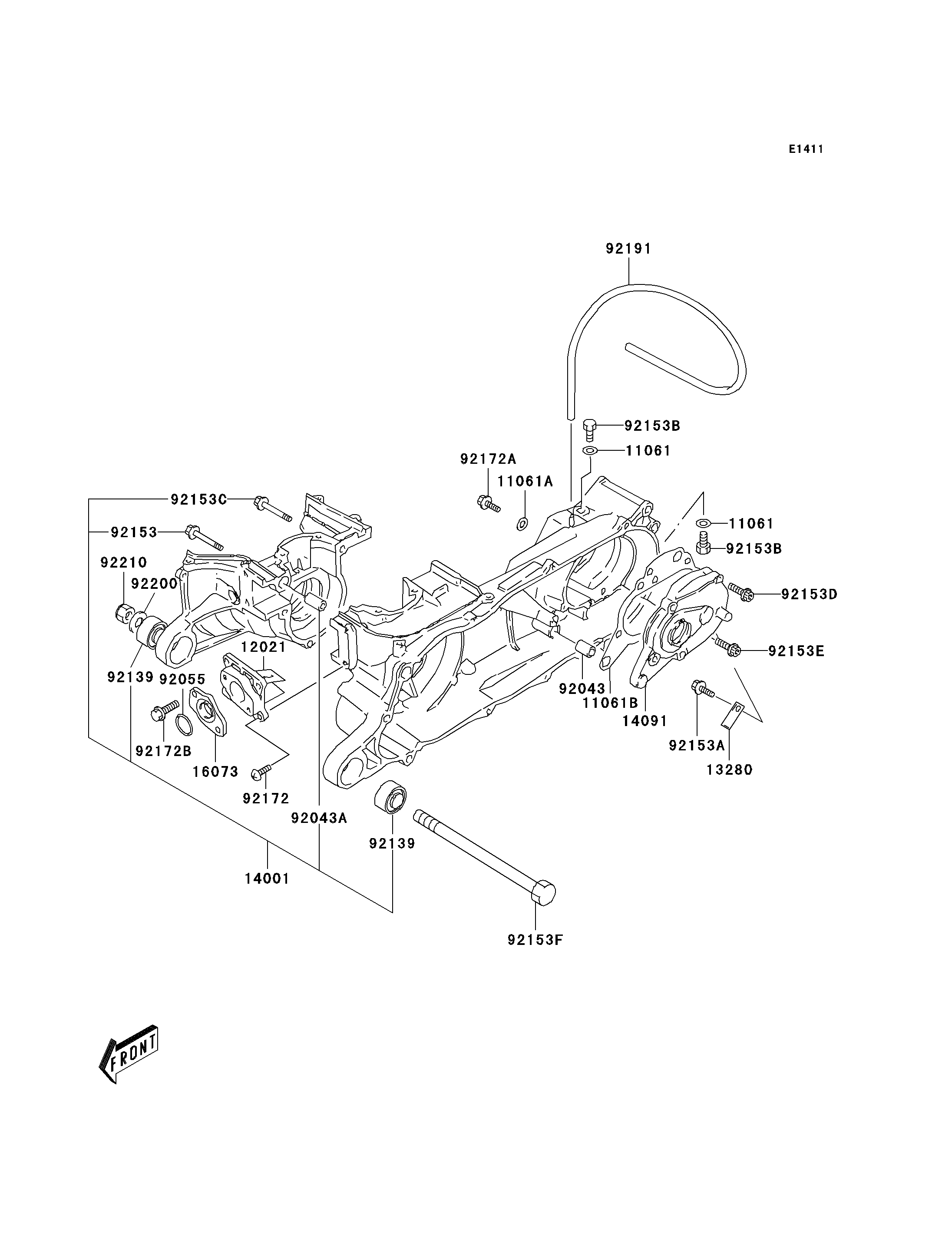

2003 KFX80 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061A
11061B
12021
13280
14001
14091
16073
92043
92043A
92055
92139
92139
92153
92153A
92153B
92153B
92153C
92153D
92153E
92153F
92172
92172A
92172B
92191
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,8.2X14X1 11061 11061-S004 2
GASKET,OIL HOSE 11061A 11061-S045 1
GASKET,GEAR BOX COVER 11061B 11061-S054 1
VALVE-ASSY-REED 12021 12021-S001 1
HOLDER,GEAR BOX 13280 13280-S007 1
SET-CRANKCASE 14001 14001-S003 1
COVER,GEAR BOX 14091 14091-S073 1
INSULATOR,CARBURETOR 16073 16073-S001 1
PIN 92043 92043-S002 2
PIN 92043A 92043-S003 2
RING-O,CARBURETOR INSULATOR 92055 92055-S042 1
BUSHING,ENGINE MTG 92139 92139-S016 2
BOLT 92153 92153-S008 1
BOLT 92153A 92153-S073 1
BOLT 92153B 92153-S108 2
BOLT 92153C 92153-S128 4
BOLT,CLUTCH COVER 92153D 92153-S210 4
BOLT,GEAR BOX COVER 92153E 92153-S211 1
BOLT,ENGINE MTG 92153F 92153-S212 1
SCREW 92172 92172-S008 4
SCREW,OIL LEVEL 92172A 92172-S123 1
SCREW,CARBURETOR 92172B 92172-S136 2
TUBE,FUEL TANK BREATHER 92191 92191-S028 1
WASHER,ENGTNE MTG 92200 92200-S104 1
NUT,ENGINE MTG 92210 92210-S078 1
