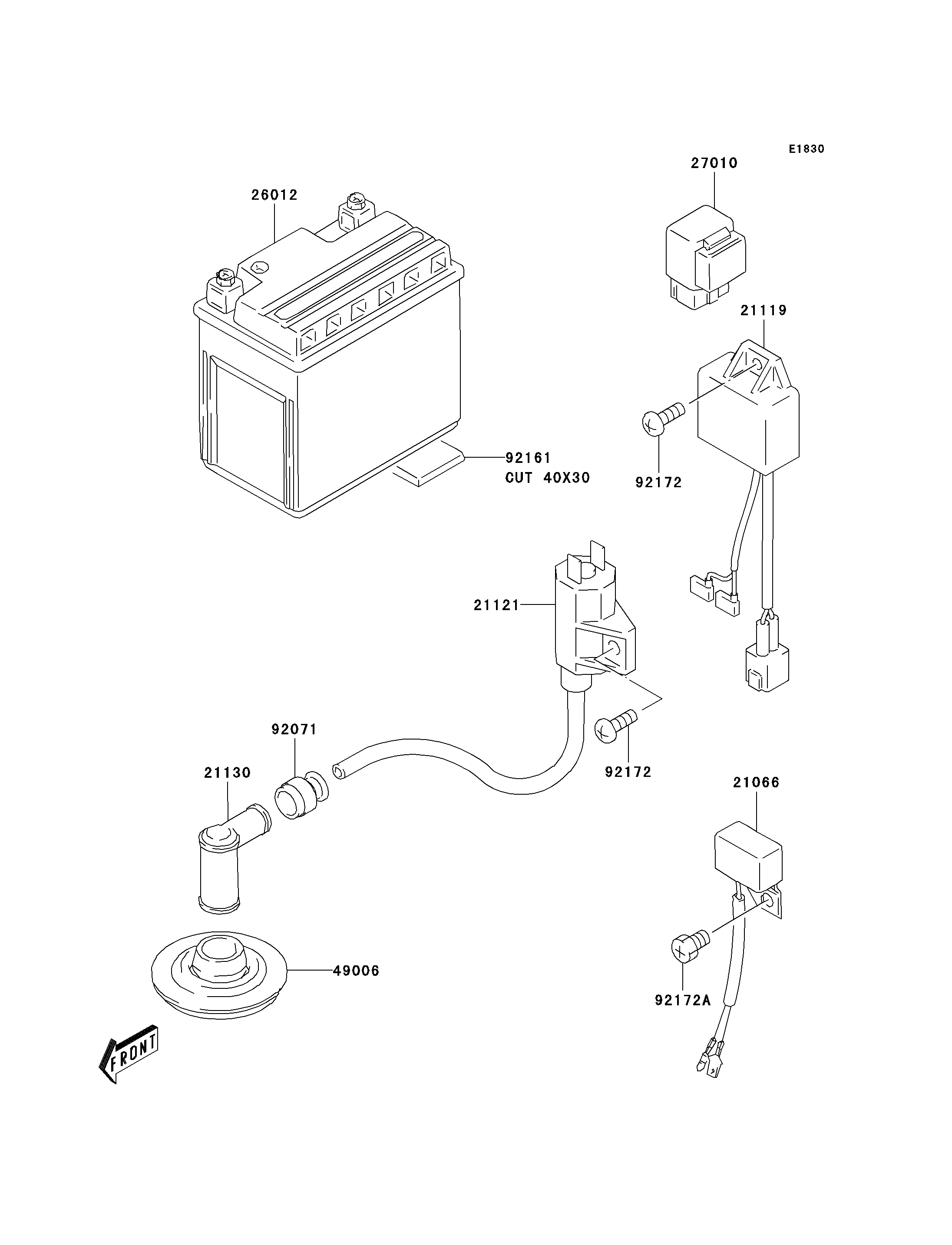

21066
21119
21121
21130
26012
27010
49006
92071
92161
92172
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REGULATOR-VOLTAGE 21066 21066-S003 1
IGNITER 21119 21119-S004 1
COIL-IGNITION 21121 21121-S007 1
CAP-SPARK PLUG 21130 21130-S005 1
BATTERY,YTX5L-BS,12V4AH 26012 26012-S007 1
SWITCH,STARTING MOTOR 27010 27010-S016 1
BOOT,SPARK PLUG CAP 49006 49006-S016 1
GROMMET,HIGHTENSION 92071 92071-S004 1
DAMPER,170X95X3.0 92161 92161-S014 6
SCREW 92172 92172-S021 2
SCREW,OIL LEVEL 92172A 92172-S123 1
