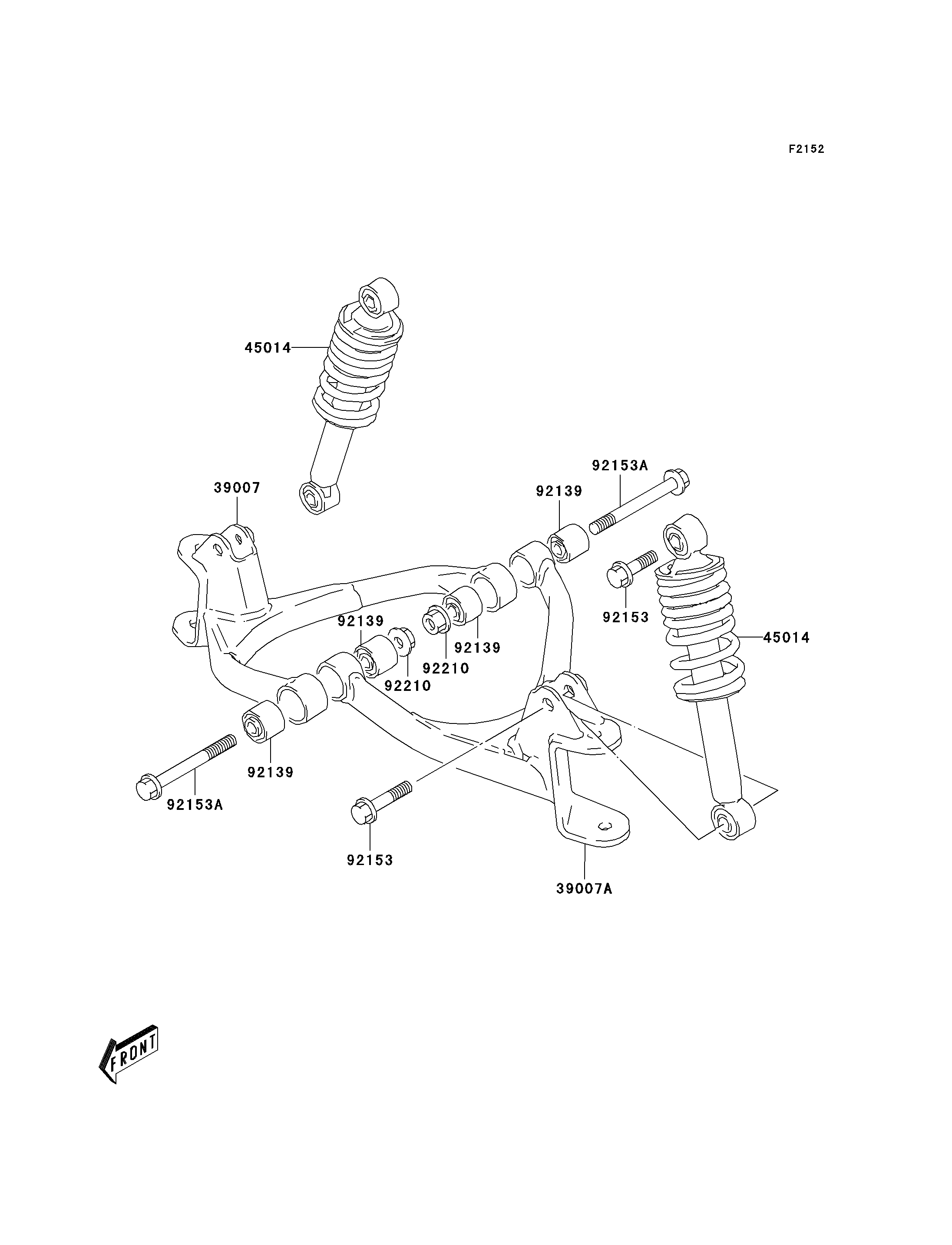

39007
39007A
45014
45014
92139
92139
92139
92139
92153
92153
92153A
92153A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,RH,BLACK 39007 39007-S005-503 1
ARM-SUSP,LH,BLACK 39007A 39007-S006-503 1
SHOCKABSORBER,L.GREEN 45014 45014-S010-535 2
BUSHING,SUSPENSION ARM 92139 92139-S014 4
BOLT,10X37 92153 92153-S033 4
BOLT,SUSPENSION ARM 92153A 92153-S201 2
NUT,SUSPENSION ARM 92210 92210-S074 2
