32085
32109
34003
55020
55020A
92026
92153
92153A
92153B
92153C
92161
92161
92210

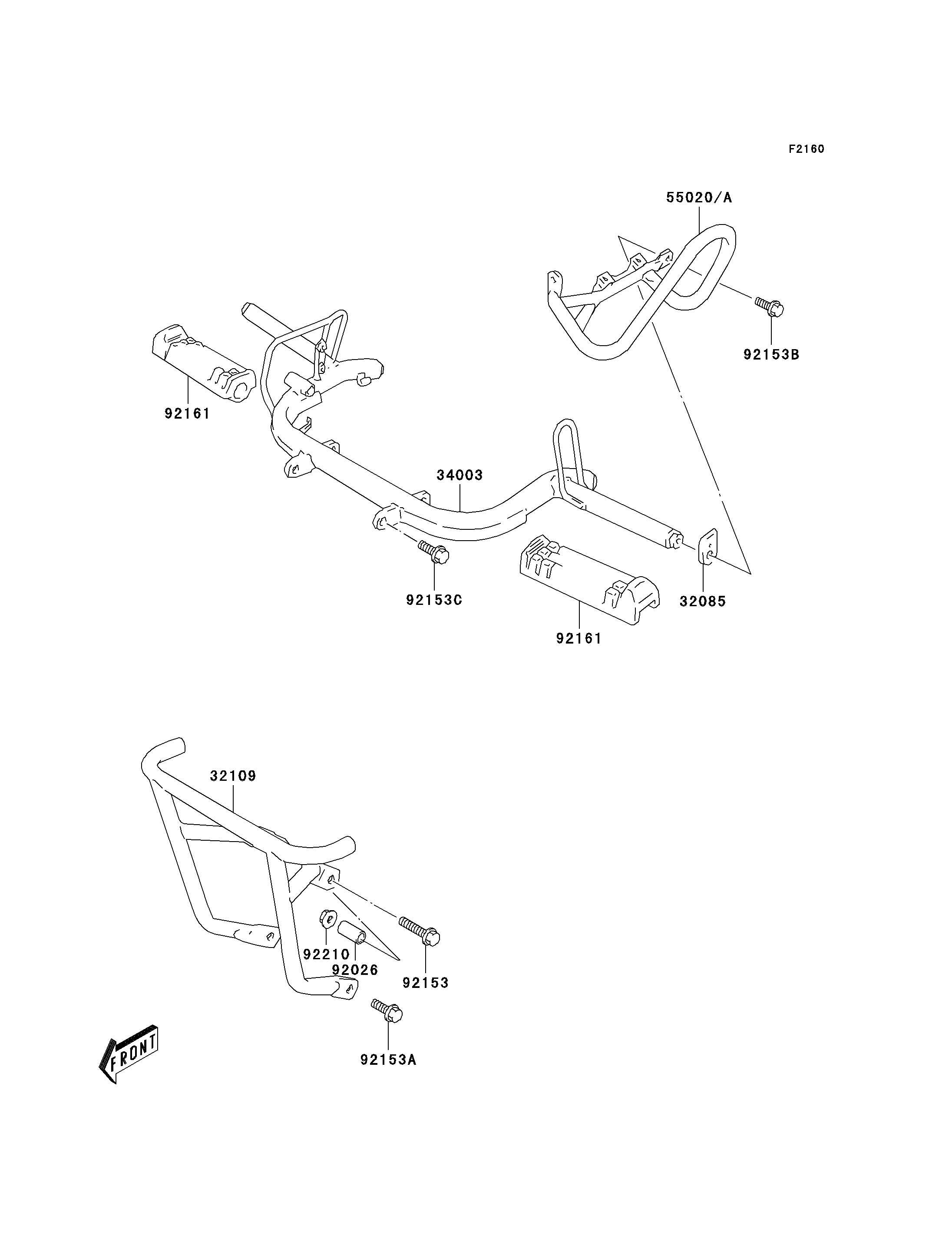

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER,FRONT FOOTREST 32085 32085-S008 2
GRIP-FRAME,BLACK 32109 32109-S004-503 1
HOLDER-STEP,BLACK 34003 34003-S003-503 1
GUARD,RH,BLACK 55020 55020-S010-503 1
GUARD,LH,BLACK 55020A 55020-S011-503 1
SPACER,FRONT GRIP 92026 92026-S071 2
BOLT 92153 92153-S070 2
BOLT 92153A 92153-S108 2
BOLT,BRUSH GUARD 92153B 92153-S220 4
BOLT,FRONT FOOTREST 92153C 92153-S221 4
DAMPER,FRONT FOOTREST 92161 92161-S084 2
NUT 92210 92210-S026 2
