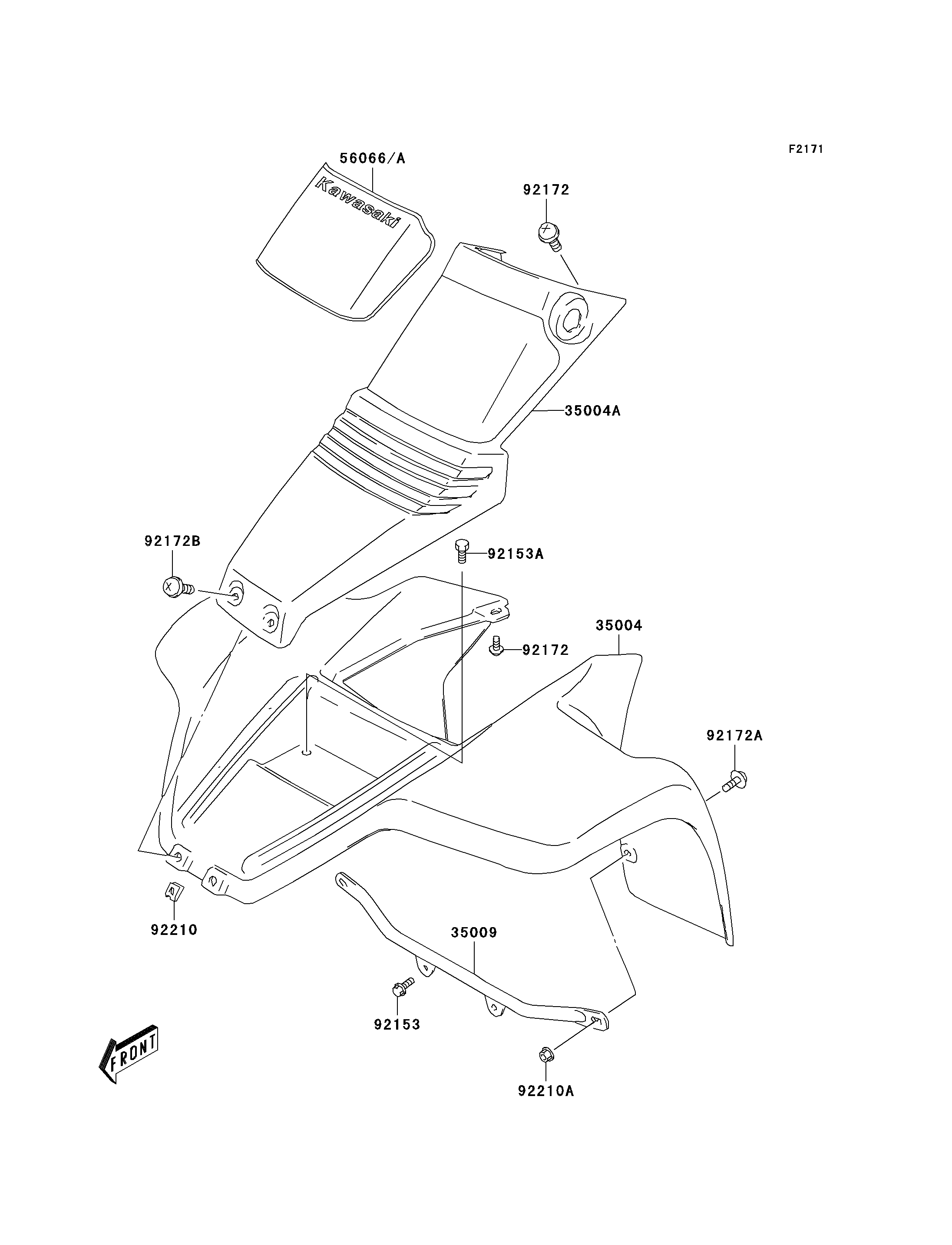

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-S008-535 1
FENDER-FRONT,BLACK 35004A 35004-S009-504 1
BRACE,FRONT FENDER,BLACK 35009 35009-S006-503 1
PATTERN,WHITE/BLACK 56066 56066-S005-558 1
BOLT 92153 92153-S011 2
BOLT,FRONT FENDER 92153A 92153-S225 2
SCREW,FRONT FENDER 92172 92172-S152 4
SCREW,FRONT FENDER 92172A 92172-S153 2
SCREW,CENTER COVER 92172B 92172-S154 2
NUT,FRONT FENDER 92210 92210-S043 2
NUT 92210A 92210-S066 2
