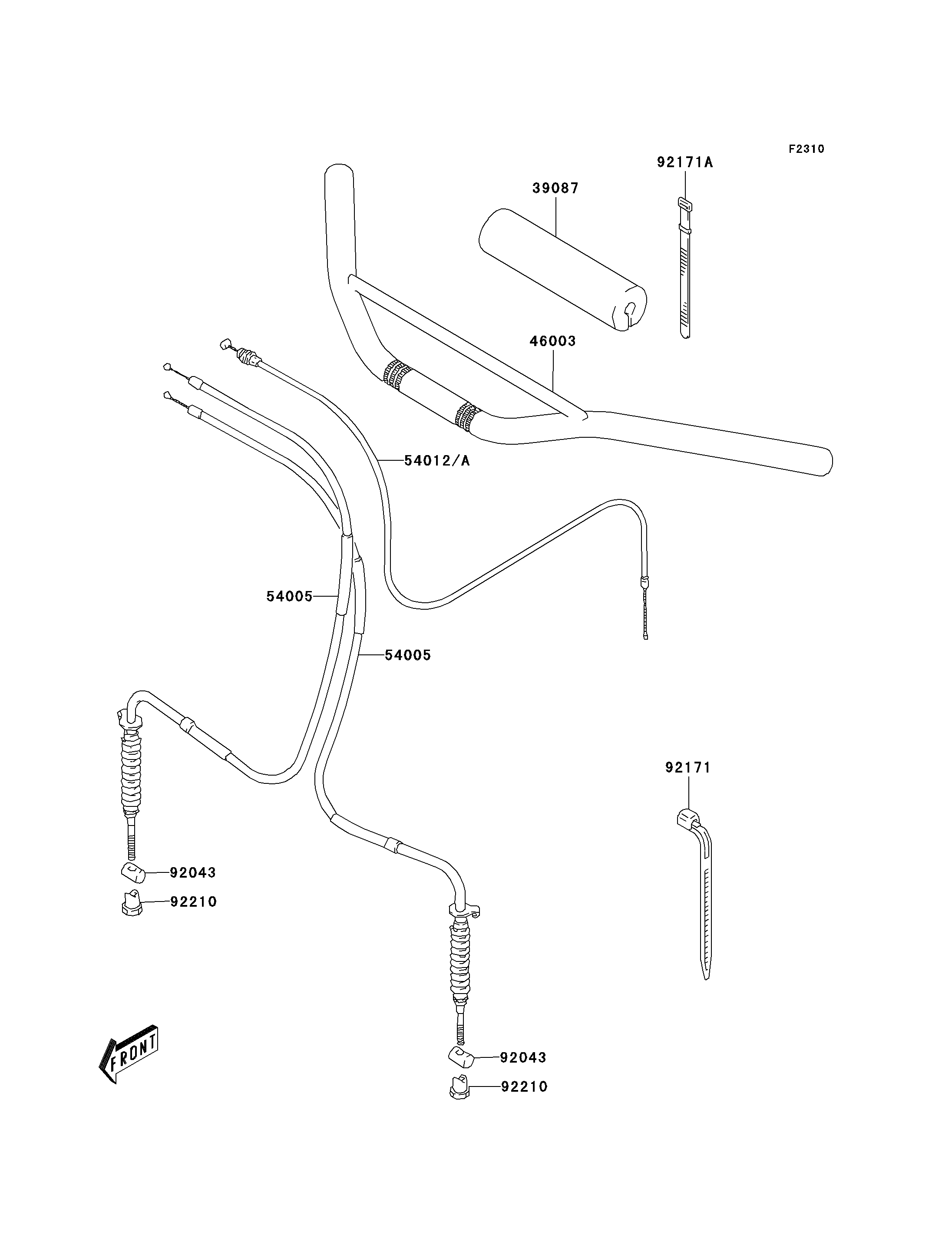

39087
46003
54005
54005
54012
92043
92043
92171
92171A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD-HANDLE 39087 39087-S003 1
HANDLE,BLACK 46003 46003-S006-504 1
CABLE-BRAKE 54005 54005-S013 2
CABLE-THROTTLE 54012 54012-S006 1
PIN,BRAKE ROD ADJUSTER 92043 92043-S023 2
CLAMP,L=125 92171 92171-S014 6
CLAMP,L=145 92171A 92171-S015 2
NUT,FRONT BRAKE CABLE 92210 92210-S086 2
