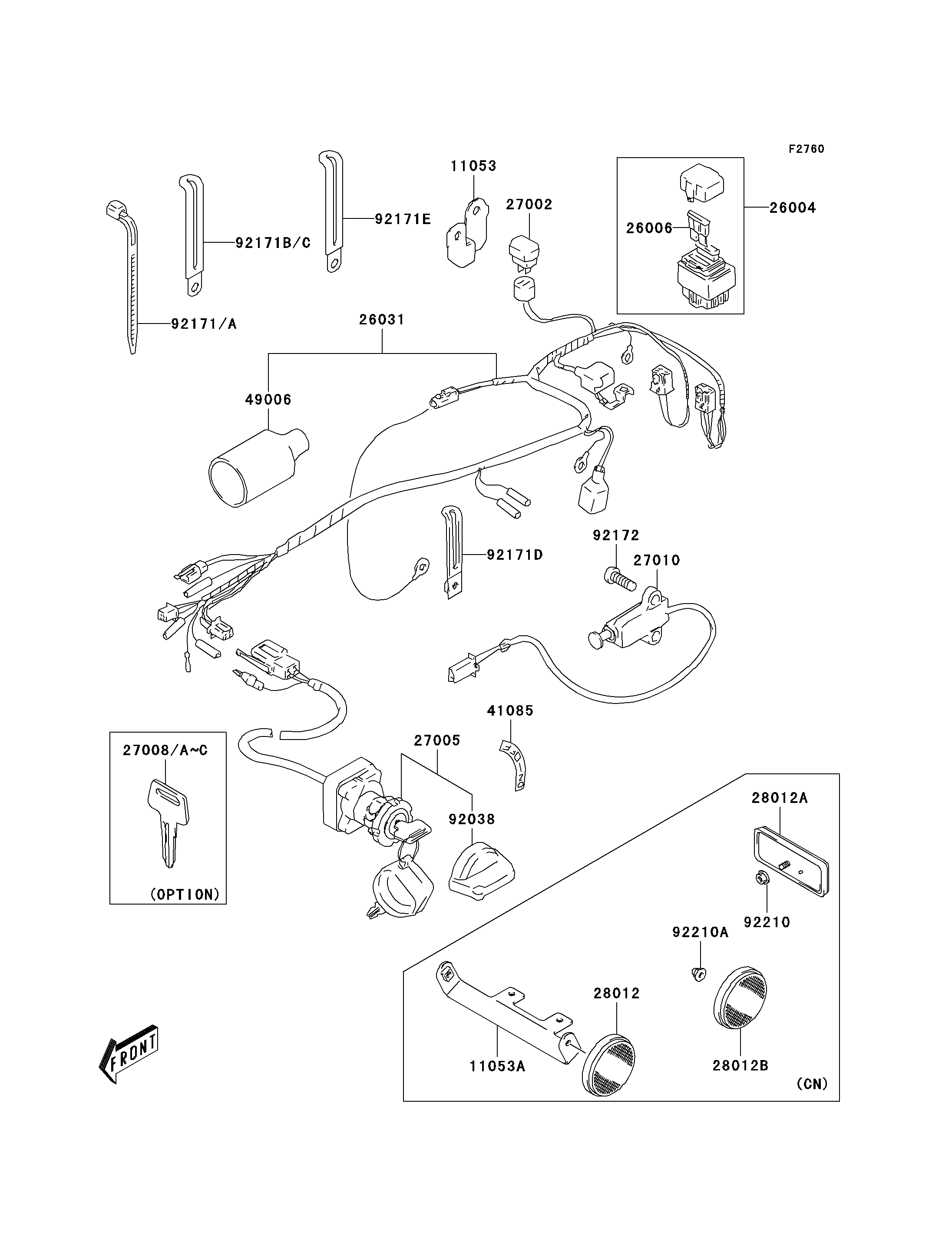

2003 KFX80 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11053
26004
26006
26031
27002
27005
27008
27008A
27010
41085
49006
92038
92171
92171A
92171B
92171D
92171E
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-S005 1
FUSE-ASSY 26004 26004-S001 1
FUSE,5A 26006 26006-S005 1
HARNESS 26031 26031-S001 1
RELAY-ASSY 27002 27002-S004 1
SWITCH-ASSY-IGNITION 27005 27005-S004 1
KEY-LOCK,BLANK,(TYPE:C) 27008 27008-S002 1 (OPTION)
KEY-LOCK,BLANK,(TYPE:D) 27008A 27008-S003 1 (OPTION)
SWITCH,PARKING BRAKE 27010 27010-S017 1
INDICATOR 41085 41085-S003 1
BOOT 49006 49006-S018 1
COVER,KEY 92038 92038-S005 1
CLAMP,L=125 92171 92171-S014 3
CLAMP,L=165 92171A 92171-S016 3
CLAMP,L=95 92171B 92171-S047 2
CLAMP 92171D 92171-S080 1
CLAMP,WIRING HARNESS 92171E 92171-S081 1
SCREW,PARKING BRAKE SWITCH 92172 92172-S150 2
BRACKET 11053A 11053-S009 1 CN
REFLECTOR-REFLEX,FR 28012 28012-S001 2 CN
REFLECTOR-REFLEX,RR 28012A 28012-S003 1 CN
REFLECTOR-REFLEX,REAR SIDE 28012B 28012-S004 2 CN
NUT 92210 92210-S067 1 CN
NUT 92210A 92210-S097 2 CN
